Specifications
Brand Name :
SIPU
Place of Origin :
CHINA
MOQ :
50
Payment Terms :
L/C, T/T, Western Union
Model Number :
TNC-KF3A
Certification :
ISO9001, RoHS, CE
Packaging Details :
master carton
Price :
Discuss
Delivery Time :
6-8weeks
Supply Ability :
120000pcs/year
Product name :
TNC Female RF Coaxial Connector – Compatible with RG316/U Cable
Type :
Straight
Gender :
Female
Material :
Brass
Plating :
Nickle
Insulating medium :
PTFE
Durability :
500 times
Description

TNC Female RF Coaxial Connector – Compatible with RG316/U Cable

Product Overview

TNC series connectors comply with GJB681A, MIL-C-39012, and IEC 60169-17 standards. These connectors are designed as small to medium-power RF interfaces featuring a threaded coupling mechanism, making them especially well-suited for mobile communication equipment operating under vibration or harsh environmental conditions.

Applications

Communication systems

Antennas

Medium-power RF transmission

Outdoor and mobile equipment

Product Features

Compatible with RG316/U RF coaxial cable

Secure threaded connection for high vibration resistance

Excellent electrical performance and signal integrity

Strong environmental durability for outdoor use

Product Specifications

TNC Female RF Coaxial Connector – Compatible with RG316/U Cable

Important Technical Parameters

Electrical property

 Temperature range -55～+165℃

Characteristic impedance

 50Ω Frequency range DC-11GHz

Dielectric withstanding voltage

 1500V VSWR ≤1.3

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB
Contact resistance Center conductor ≤2.0mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, nickel plating / /

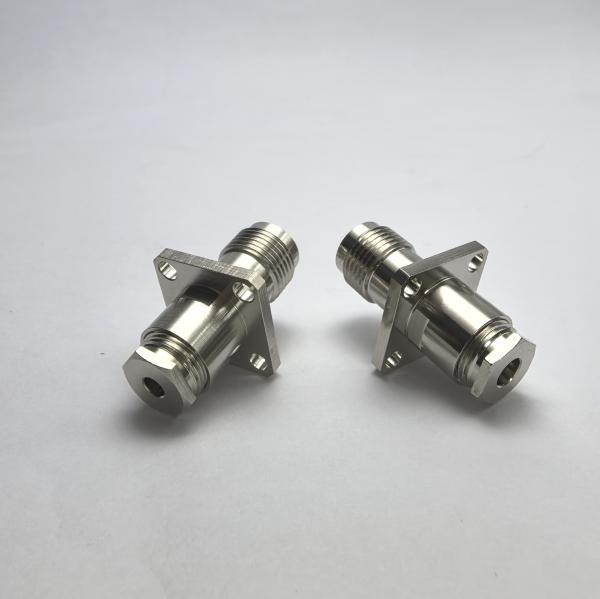

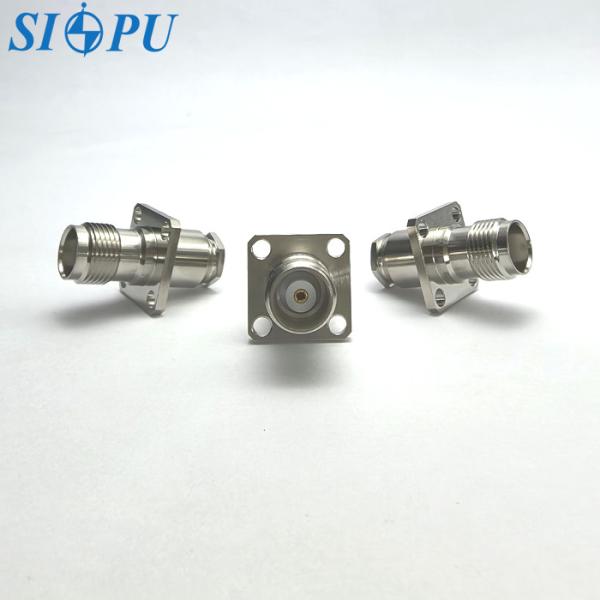

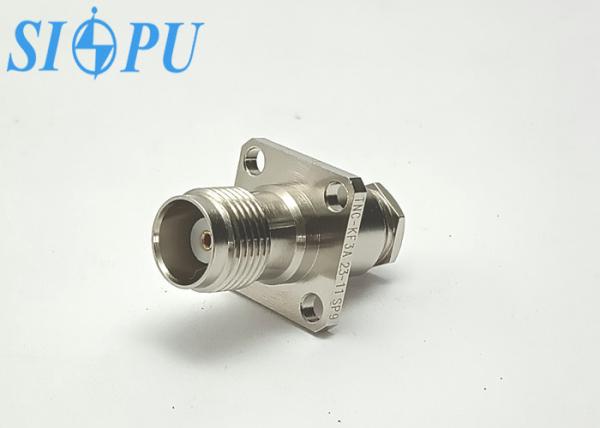

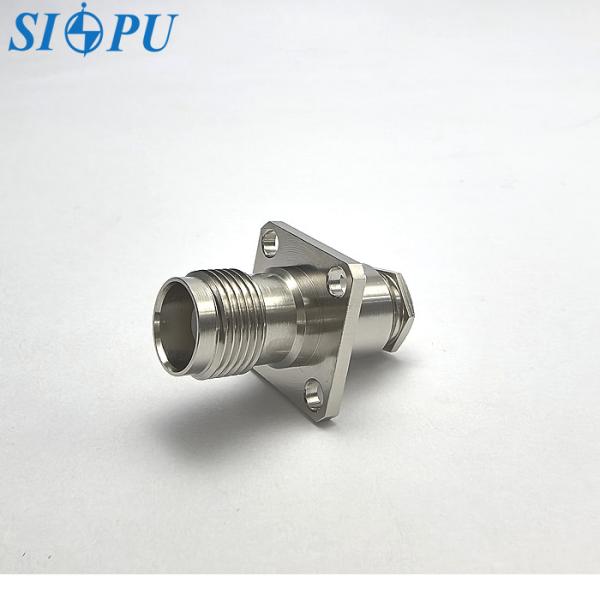

Product Image Gallery

TNC Female RF Coaxial Connector – Compatible with RG316/U CableTNC Female RF Coaxial Connector – Compatible with RG316/U Cable

TNC Female RF Coaxial Connector – Compatible with RG316/U CableTNC Female RF Coaxial Connector – Compatible with RG316/U Cable
