1310/1550 Wavelength Single Channel Fiber Slip Ring High Definition Digital Signal Transmission
1310/1550 Wavelength Single Channel Fiber Slip Ring High Definition Digital Signal Transmission
1310/1550 Wavelength Single Channel Fiber Slip Ring High Definition Digital Signal Transmission
1310/1550 Wavelength Single Channel Fiber Slip Ring High Definition Digital Signal Transmission
1310/1550 Wavelength Single Channel Fiber Slip Ring High Definition Digital Signal Transmission
1310/1550 Wavelength Single Channel Fiber Slip Ring High Definition Digital Signal Transmission
1310/1550 Wavelength Single Channel Fiber Slip Ring High Definition Digital Signal Transmission
1310/1550 Wavelength Single Channel Fiber Slip Ring High Definition Digital Signal Transmission
Specifications
Brand Name :
GUREN
Model Number :
GXSS01-01-1310-FC/PC
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,T/T,D/P
Supply Ability :
2K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Fiber Type :
9/125(Single mode)
IP Rating :
IP54
Fiber Connector Type :
FC/PC
Working wavelength :
1310/1550
Line length :
1.2m
Description

Fiber optic rotary connectors, also known as fiber optic slip rings and photoelectric slip rings, use optical fiber as the data transmission medium and provide the best technical solution for data transmission between rotating connected system components. GXSS single-channel fiber optic slip rings, with an entry hole diameter of only 6.8mm and a compact structure, are low-cost and cost-effective products launched by GuRen Technology.


Features:

1. Single mode and multi-mode are available.
2. Fiber connectors can be FC, SC, ST, SMA, or LC (PC and APC).
3. Support large-capacity data transmission.
4. Anti-electromagnetic interference.
5. Has good optical performance, is waterproof and dustproof, and easy to install.


Product Parameters



GXSS01-01-1310-FC/PC Fiber Parameters

Fiber Type

9/125(Single mode) (Multi-mode can be customized)

Pigtail

FC/PCConnector, ∅3.0 black armored wire

Line length

1.2m (customizable)

Working wavelength

1310/1550(SM)(Other wavelengths can be customized)

Insertion loss (room temperature)

≤5dB

Insertion loss fluctuation

≤3dB

Power handling

≤23dBm

Withstand tension

≤12N

Speed

0～1200rpm

Estimated lifespan

＞20 million rpm

Operating temperature

-20℃～+60℃

Storage temperature

-45℃～+85℃

Protection level

IP54(CustomizableIP65,IP67)


Product drawings

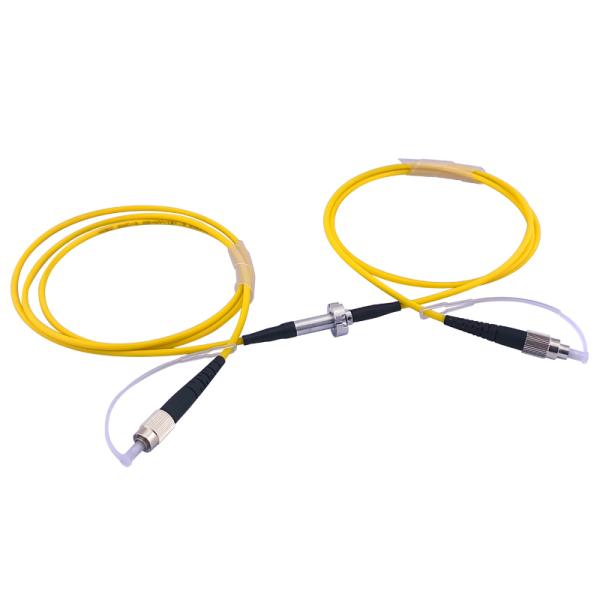

Product images


Fiber Optic Slip Ring Applications

Suitable for installation on drones, artificial intelligence, monitoring equipment and other products
