Specifications
Brand Name :
GUREN
Model Number :
GXMMS-7
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,T/T,D/P
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Broadband :
±50nm
Number of Channels :
7

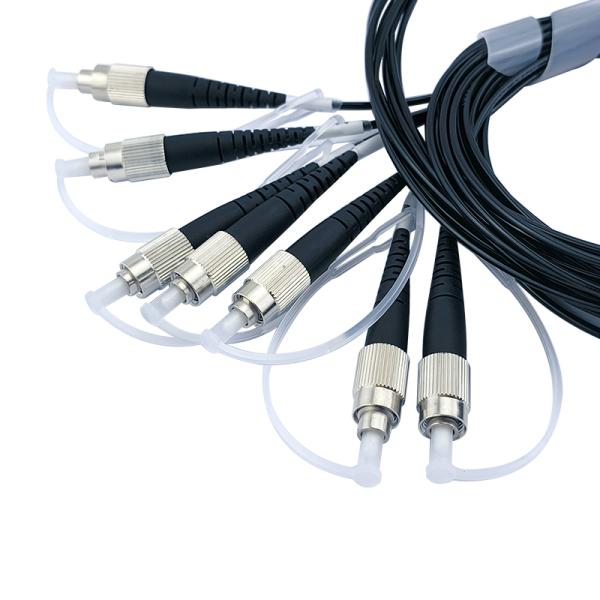

Fiber Connector Type :
FC/PC
Working wavelength :
1310 or 1550（SM）;850 or 1310（MM）
Insertion loss (room temperature) :
≤4.0dB
Insertion loss fluctuation :
≤2.0dB
Description

GXMMS-7 photoelectric signal rotary joint adopts metal shielding design to reduce external interference and ensure signal purity. It is compatible with single-mode and multi-mode optical fibers, supports customization of various pigtail parameters and connector forms, has a wide broadband coverage range, and is suitable for complex equipment that requires multi-signal parallel interaction, such as multi-interface monitoring systems and robot clusters.


GXMMS-7 photoelectric signal rotary joint Features:

1. The 7-channel design reserves sufficient signal transmission channels for medium and high-complexity equipment, which is convenient for future function expansion and performance improvement.
2. The insertion loss at room temperature is ≤4.0dB. Even in multi-channel transmission, the signal loss can be kept low to ensure stable signal strength.
3. The broadband covers ±50nm, supports the simultaneous transmission of multiple wavelength signals, and greatly improves the system compatibility and flexibility.
4. The pigtail provides ∅0.9mm/∅2.0mm/∅3.0mm packaging and armor customization to adapt to different harsh installation environments and usage requirements.
5. The estimated life span is >100 million revolutions, and the operating temperature range of -20℃～+60℃ ensures long-term and stable operation.


GXMMS-7 photoelectric signal rotary joint Parameters

2-31 channel fiber optic slip ring parameters

Broadband

±50nm

Line length

1.2m (Customizable)

Working wavelength

1310 or 1550(SM);850 or 1310(MM)

Insertion loss (room temperature)

≤4.0dB

Insertion loss fluctuation

≤2.0dB

Return loss

≥40dB(SM)

Power handling

≤23dBm

Withstand tension

≤12N

Speed

0～300rpm(Higher speed can be customized)

Estimated lifespan

＞100 million rpm

Operating temperature

-20℃～+60℃

Storage temperature

-45℃～+85℃

Protection level

IP54(Customizable IP65,IP67)


GXMMS-7 photoelectric signal rotary joint Dimensions

38mm Diameter Fiber Optic Slip Rings 7 Channels Metal Shielding Design


GXMMS-7 photoelectric signal rotary joint Applications

Suitable for installation on drones, artificial intelligence, monitoring equipment and other products
