Specifications
Brand Name :
GUREN
Model Number :
GXMA-4
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,T/T,D/P
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Broadband :
±50nm
Number of Channels :
4
Fiber Connector Type :
FC/PC
Working wavelength :
1310 or 1550（SM）;850 or 1310（MM）
Insertion loss (room temperature) :
≤3.5dB
Insertion loss fluctuation :
≤1.5dB
Description

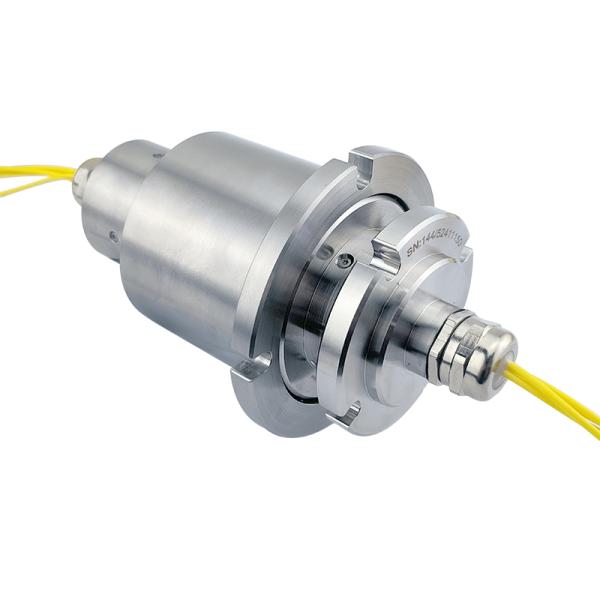

GXMA-4 fiber optic signal rotary joint balances transmission capacity and compactness, supporting single-mode and multi-mode fiber optic signal transmission. It has a wide storage temperature range and can adapt to harsh environments such as the wild. The pigtail has excellent tensile resistance and reduces the risk of signal interruption. It supports a variety of connector customization and is suitable for mid-to-high-end scenarios such as high-precision artificial intelligence equipment and industrial-grade monitoring turntables.


GXMA-4 fiber optic signal rotary joint Features:

1. The 4-channel design cleverly balances transmission capacity and compactness, perfectly adapting to the space and performance requirements of small and medium-sized high-precision equipment.
2. The storage temperature range is - 50℃～+85℃, which can be stored and used for a long time in extreme temperature environments, without fear of harsh field deployment conditions.
3. Insertion loss ≤3.5dB, loss fluctuation ≤1.5dB, ensuring the consistency and stability of multi-channel signal transmission.
4. Supports customization of multiple connector forms of FC/ST/SC/LC/N, flexible adaptation to different equipment interfaces, and easy installation.
5. Withstands tensile force ≤12N, and the pigtail has excellent tensile resistance, reducing the risk of signal interruption during installation and use.


GXMA-4 fiber optic signal rotary joint Product Parameters

2-31 channel fiber optic slip ring parameters

Broadband

±50nm

Line length

1.2m (Customizable)

Working wavelength

1310 or 1550(SM);850 or 1310(MM)

Insertion loss (room temperature)

≤3.5dB

Insertion loss fluctuation

≤1.5dB

Return loss

≥40dB(SM)

Power handling

≤23dBm

Withstand tension

≤12N

Speed

0～300rpm(Higher speed can be customized)

Estimated lifespan

＞100 million rpm

Operating temperature

-20℃～+60℃

Storage temperature

-45℃～+85℃

Protection level

IP54(Customizable IP65,IP67)


GXMA-4 fiber optic signal rotary joint Dimensions

2-31 Channel Optical Fiber Rotary Joint Easy Installation Diameter 67mm

GXMA-4 fiber optic signal rotary joint Applications

Suitable for installation on drones, artificial intelligence, monitoring equipment and other products
