Micro 4 Channels Gas Rotary Union Gas Slip Ring For Industrial Automation Equipment
Micro 4 Channels Gas Rotary Union Gas Slip Ring For Industrial Automation Equipment
Micro 4 Channels Gas Rotary Union Gas Slip Ring For Industrial Automation Equipment
Micro 4 Channels Gas Rotary Union Gas Slip Ring For Industrial Automation Equipment
Specifications
Brand Name :
GuRen
Model Number :
Q4PM5
Certification :
ISO9001.CE.RoHS
Place of Origin :
china
MOQ :
1
Price :
＄19-199
Payment Terms :
L/C,D/P,T/T
Supply Ability :
1K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Number of channels :
4 channels
Inner diameter :
5mm
Outer diameter :
38mm
High :
62mm
Housing Material :
Aluminum
Applicable trachea :
4～6mm
Interface Specifications :
M5
Description
4-input 4-output Micro 4-channel gas slip ring M5 connector for industrial automation equipment
Product Specifications
Number of channels 4 channels
Inner diameter 5mm
Outer diameter 38mm
Height 62mm
Housing Material Aluminum
Applicable trachea 4～6mm
Interface Specifications M5
Product Description

Q4PM5 miniature 4-channel gas slip ring, M5 small interface design can save 70% installation space; supports 90kPa vacuum and -30℃ cold start, adapts to precision air pipes, and IP51 protection meets the requirements of dusty environments.

Product Features
  • Four-way rotary joint, with M5 precision thread interface, suitable for 4-6mm micro air pipe, designed for micro equipment and applications requiring high-precision connection.
  • While providing four channels, it maintains a small size, has a high degree of integration, a compact structure, and is easy to install.
  • It is mainly used to transmit low-pressure gases such as compressed air and nitrogen, with excellent sealing performance to ensure no leakage.
  • The maximum speed can reach 250RPM, with a designed service life of 20 million revolutions, precise and reliable, suitable for high-precision equipment.
Technical Parameters
Transmission medium Gas (liquid can be customized)
Working life 20 million revolutions (reference value)
Maximum speed 300RPM
Overpressure -90KPa～1MPa or vacuum
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Aluminum Alloy
Rotational torque 0.5N.m (reference value, torque and number of channels are positively correlated)

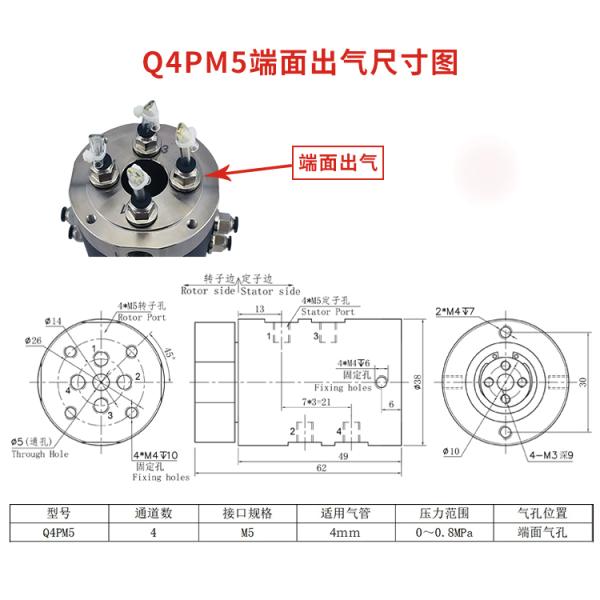

Product Dimensions
Micro 4 Channels Gas Rotary Union Gas Slip Ring For Industrial Automation Equipment Micro 4 Channels Gas Rotary Union Gas Slip Ring For Industrial Automation Equipment
Application Scenarios

It is mainly used in occasions where 360-degree continuous rotation is required and air pressure, vacuum, power supply and signal cannot be interrupted: such as various non-standard automation equipment, lithium battery equipment, mobile phone testing equipment, high-end mobile phone equipment, various laser equipment, coating machines, diaphragm coating equipment, packaging film equipment for soft-pack batteries, laminating equipment, electronic semiconductor industrial automation equipment; optoelectronic flat panel display (LCD/LCM/TP/OLED/PDP) industrial automation equipment, testing equipment, rotary workbench, wind power equipment, engineering machinery, rotary filling machine, capsule filling machine, AGV lifting platform, etc.
