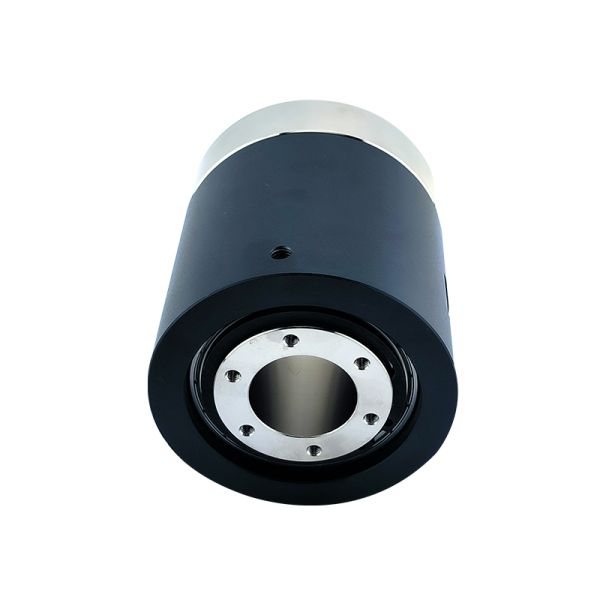

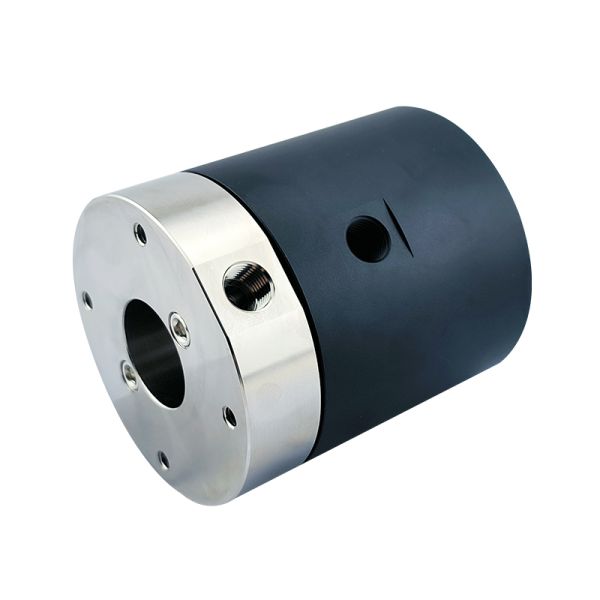

This 2-channel liquid slip ring is specifically designed for fluid transfer. It features a high-strength aluminum alloy housing and a 30mm inner diameter hollow structure. Equipped with a G1/4" standard interface, it is compatible with 8mm piping, has an IP51 protection rating, supports speeds up to 60 RPM, and can stably transfer industrial fluids such as coolants. It is an ideal connection solution for fluid circulation systems in rotating equipment.

Dual-channel independent transmission: Supports simultaneous independent circulation of two fluid streams, meeting the needs of complex cooling systems.

30mm large inner diameter design: Provides ample space for cables and air pipes, optimizing equipment layout.

Industry standard interface: G1/4" interface compatible with 8mm tubing, enabling convenient plug-and-play installation.

Reliable sealing performance: A sealing structure optimized for fluid transmission ensures leak-free operation.

CNC machining centers: Coolant transfer for rotating parts of the spindle and motor.

Industrial chillers: Cooling circulation system for rotary tables.

Plastics machinery: Fluid transfer for the rotary mold temperature control system of injection molding machines.

Testing equipment: Temperature control medium delivery for rotating environmental chambers.

Q1: What types of fluid media is this product suitable for?

A: This product is designed for industrial fluids such as water-based coolants and lubricating oils. For corrosive or special media, please consult our technical support.

Q2: What types of cables can be passed through the 30mm inner diameter?

A: The 30mm inner diameter can simultaneously accommodate multiple equipment cables, control lines, and air pipes, providing convenient wiring channels for integrated equipment designs.

Q3: Does it support higher speed operation?

A: The standard version of this product is optimized for 60RPM to ensure optimal seal life under fluid transmission conditions. For higher speeds, we can provide customized solutions.
