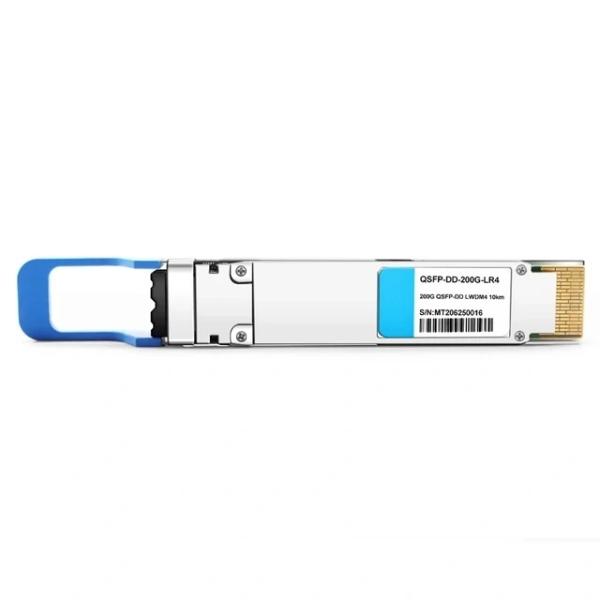

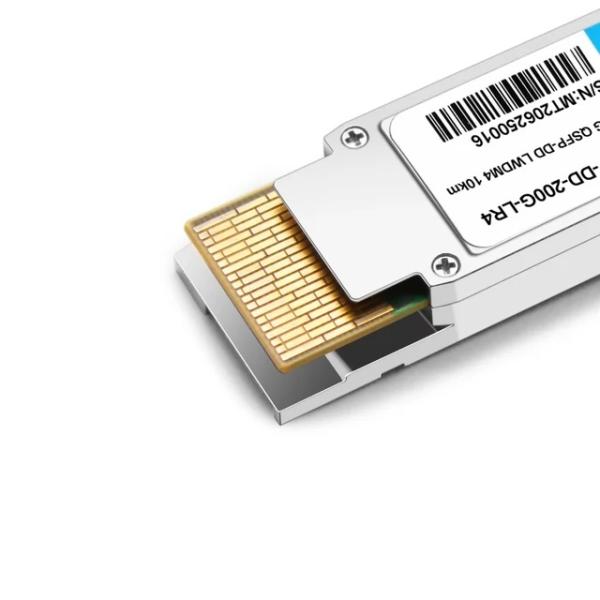

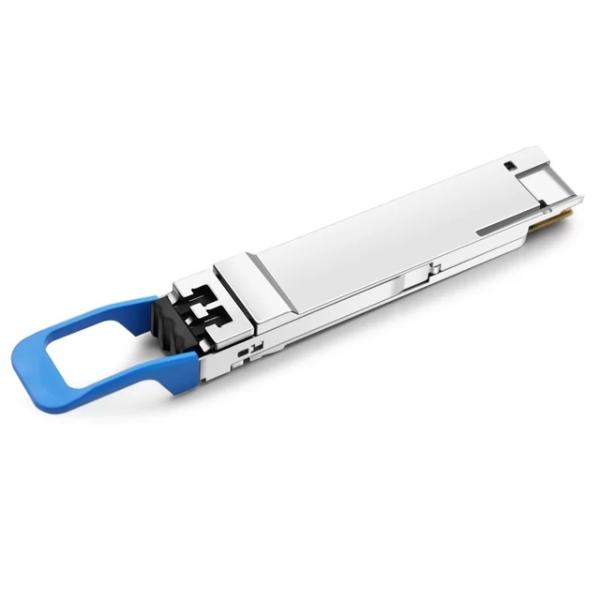

Comelink QSFP-DD-200G-LR4 200G QSFP-DD LR4 PAM4 LWDM4 10km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-LR4 200G QSFP-DD LR4 PAM4 LWDM4 10km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-LR4 200G QSFP-DD LR4 PAM4 LWDM4 10km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-LR4 200G QSFP-DD LR4 PAM4 LWDM4 10km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-LR4 200G QSFP-DD LR4 PAM4 LWDM4 10km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-LR4 200G QSFP-DD LR4 PAM4 LWDM4 10km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-LR4 200G QSFP-DD LR4 PAM4 LWDM4 10km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-LR4 200G QSFP-DD LR4 PAM4 LWDM4 10km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-LR4 200G QSFP-DD LR4 PAM4 LWDM4 10km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-LR4 200G QSFP-DD LR4 PAM4 LWDM4 10km LC SMF FEC Optical Transceiver Module
Specifications
Brand Name :
Comelink
Model Number :
QSFP-DD-200G-LR4
Certification :
ROHS/ISO9001/CE
Place of Origin :
China
MOQ :
1 PC
Price :
USD 1000 PCE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5 workdays
Part Number :
QSFP-DD-200G-LR4
Form Factor :
QSFP-DD
Max Data Rate :
200Gbps
Wavelength :
1310nm
Max Distance :
10km
Connector :

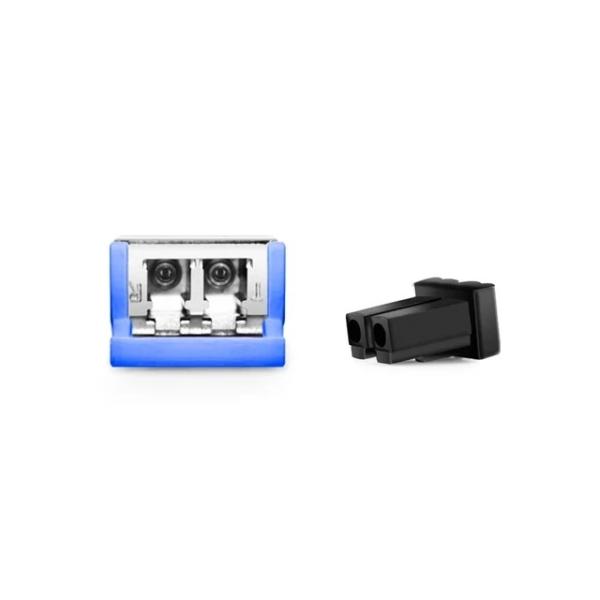

Duplex LC
Warranty :
3 Years
Package Dimensions :
5.12 x 3.54 x 1.57 inches
Description

200G QSFP-DD LR4 PAM4 LWDM4 Lanes MUX/DEMUX Design 10km Optical Transceiver Module (1295.56nm 1300.05nm 1304.58nm 1309.14nm LC SMF 10km with FEC DDM)

200G QSFP-DD LR4 designed for 5G mid-haul and backhaul applications. It is a portfolio of pluggable optical transceiver modules designed for data centers 200G LR4 Ethernet links up to 10 km on dual SMFs without FEC. It features a QSFP-DD form factor with an LC connector and is QSFP-DD MSA compliant.

Feature:

  • Built-in Marvell DSP Chip, Max Power Consumption ≤10.8W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable QSFP MSA, IEEE 802.3bs Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

Quality Assurance

Excellent quality is the foundation of Comelink's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Specificiation

P/N QSFP-DD-200G-LR4 Vendor Name Comelink
Form Factor QSFP-DD Max Data Rate 212.5Gbps
Wavelength 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm Max Distance 10km
Modulation Format PAM4 Host Required FEC
Connector Duplex LC Voltage Supply 3.3V
Cable Type SMF DDM Support Yes
Transmitter Type EML LWDM4 Receiver Type PIN
TX Power -3.4~+5.3dBm Receiver Sensitivity < -7.7dBm
Operation Temperature 0 to 70°C (32 to 158°F) Maximum Power < 10.8W
Protocols QSFP-DD MSA, IEEE 802.3bs Application 200G Ethernet, Data Center Interconnect

Application:

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
Comelink QSFP-DD-200G-LR4 200G QSFP-DD LR4 PAM4 LWDM4 10km LC SMF FEC Optical Transceiver Module

Unleash HPC Power with InfiniBand Architecture

We provides the Infiniband network solution, offering significant advantages in terms of high-speed, low latency, scalability, and efficiency.

Comelink QSFP-DD-200G-LR4 200G QSFP-DD LR4 PAM4 LWDM4 10km LC SMF FEC Optical Transceiver Module

Flat Top OSFP Connector Shell

The OSFP shell has a flat top and is used in adapters, such as ConnectX-7 InfiniBand Adapter Cards.
