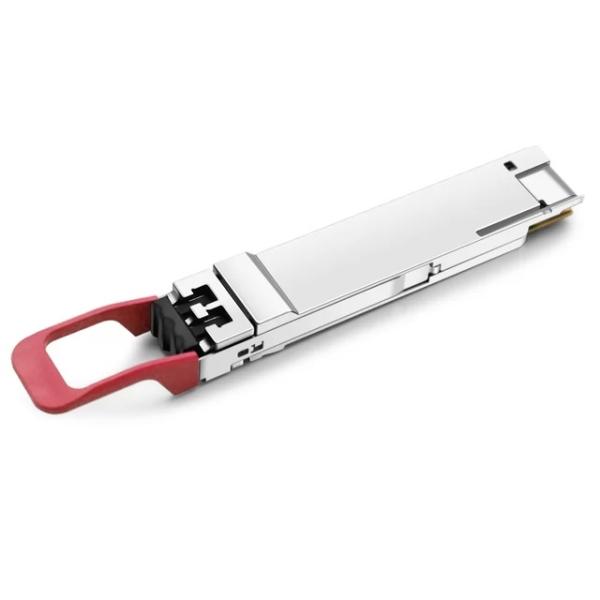

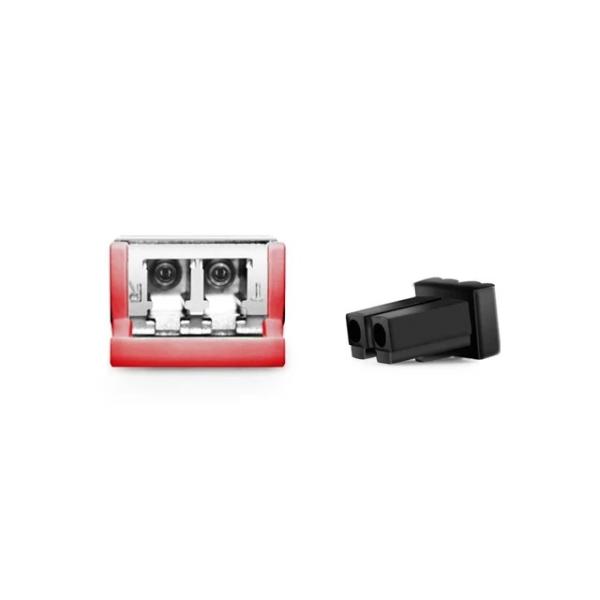

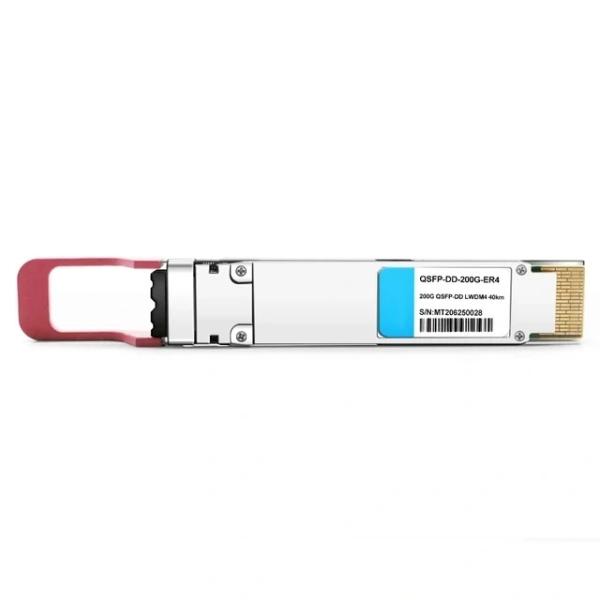

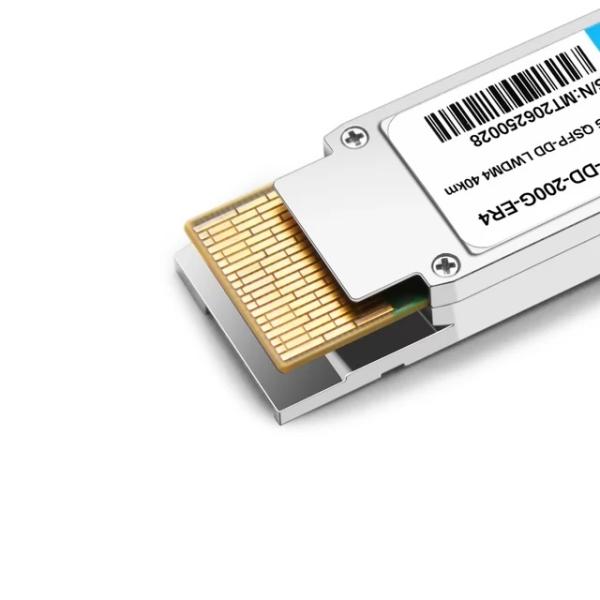

Comelink QSFP-DD-200G-ER4 200G QSFP-DD ER4 PAM4 LWDM4 40km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-ER4 200G QSFP-DD ER4 PAM4 LWDM4 40km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-ER4 200G QSFP-DD ER4 PAM4 LWDM4 40km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-ER4 200G QSFP-DD ER4 PAM4 LWDM4 40km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-ER4 200G QSFP-DD ER4 PAM4 LWDM4 40km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-ER4 200G QSFP-DD ER4 PAM4 LWDM4 40km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-ER4 200G QSFP-DD ER4 PAM4 LWDM4 40km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-ER4 200G QSFP-DD ER4 PAM4 LWDM4 40km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-ER4 200G QSFP-DD ER4 PAM4 LWDM4 40km LC SMF FEC Optical Transceiver Module
Comelink QSFP-DD-200G-ER4 200G QSFP-DD ER4 PAM4 LWDM4 40km LC SMF FEC Optical Transceiver Module
Specifications
Brand Name :
Comelink
Model Number :
QSFP-DD-200G-ER4
Certification :
ROHS/ISO9001/CE
Place of Origin :
China
MOQ :
1 PC
Price :
USD 1200 PCE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5 workdays
Part Number :
QSFP-DD-200G-ER4
Form Factor :
QSFP-DD
Max Data Rate :
200Gbps
Wavelength :
1310nm
Max Distance :
40km
Connector :
Duplex LC
Warranty :
3 Years
Package Dimensions :
5.12 x 3.54 x 1.57 inches
Description

200G QSFP-DD ER4 PAM4 4 LAN WDM Lanes MUX/DEMUX Design 40km Optical Transceiver Module (1295.56nm 1300.05nm 1304.58nm 1309.14nm LC SMF 40km with FEC DDM)

200G QSFP-DD ER4 is a pluggable optical transceiver module designed for data center 200G ER4 Ethernet links up to 40km over SMF. it works in high-speed IDC connection solutions, 5G network back-haul solutions, and so on.

Feature:

  • Built-in Marvell DSP Chip, Max Power Consumption ≤12W.
  • Provide Professional Compatibility and Parameter Test Reports.
  • Compliant with Hot Pluggable QSFP MSA, IEEE 802.3bs Standard.
  • Class1/1M Standard Product, Compliant with RoHS Environmental Protection Standards (Lead-Free).
  • DDM(Digital Diagnostic Monitoring) Supported.
  • 30-Day Free Return, 1-Year Free Replacement, 3-Year Warranty, Lifetime After-sales Technical Support.

Quality Assurance

Excellent quality is the foundation of Comelink's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Specificiation

P/N QSFP-DD-200G-ER4 Vendor Name Comelink
Form Factor QSFP-DD Max Data Rate 212.5Gbps
Wavelength 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm Max Distance 40km
Modulation Format PAM4 Host Required FEC
Connector Duplex LC Voltage Supply 3.3V
Cable Type SMF DDM Support Yes
Transmitter Type EML LWDM4 Receiver Type APD
TX Power -0.1~+5.6dBm Receiver Sensitivity < -14.1dBm
Operation Temperature 0 to 70°C (32 to 158°F) Maximum Power < 12W
Protocols QSFP-DD MSA, IEEE 802.3bs Application 5G Network, 200G Ethernet, Enterprise Networking

Feature:

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
Comelink QSFP-DD-200G-ER4 200G QSFP-DD ER4 PAM4 LWDM4 40km LC SMF FEC Optical Transceiver Module

Unleash HPC Power with InfiniBand Architecture

We provides the Infiniband network solution, offering significant advantages in terms of high-speed, low latency, scalability, and efficiency.

Comelink QSFP-DD-200G-ER4 200G QSFP-DD ER4 PAM4 LWDM4 40km LC SMF FEC Optical Transceiver Module

Flat Top OSFP Connector Shell

The OSFP shell has a flat top and is used in adapters, such as ConnectX-7 InfiniBand Adapter Cards.
