90kW 125hp Fixed Speed Air Compressor 8 Bar Industrial Air Screw Compressor
90kW 125hp Fixed Speed Air Compressor 8 Bar Industrial Air Screw Compressor
90kW 125hp Fixed Speed Air Compressor 8 Bar Industrial Air Screw Compressor
90kW 125hp Fixed Speed Air Compressor 8 Bar Industrial Air Screw Compressor
90kW 125hp Fixed Speed Air Compressor 8 Bar Industrial Air Screw Compressor
90kW 125hp Fixed Speed Air Compressor 8 Bar Industrial Air Screw Compressor
90kW 125hp Fixed Speed Air Compressor 8 Bar Industrial Air Screw Compressor
90kW 125hp Fixed Speed Air Compressor 8 Bar Industrial Air Screw Compressor
90kW 125hp Fixed Speed Air Compressor 8 Bar Industrial Air Screw Compressor
90kW 125hp Fixed Speed Air Compressor 8 Bar Industrial Air Screw Compressor
90kW 125hp Fixed Speed Air Compressor 8 Bar Industrial Air Screw Compressor
90kW 125hp Fixed Speed Air Compressor 8 Bar Industrial Air Screw Compressor
Specifications
Place of Origin :
Jiangsu
Brand Name :
DHH
Model Number :
DC-125A
Packaging Details :
Wooden box
Supply Ability :
600set/months
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Delivery Time :
25days
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Product name :
Air screw Compressor
Type :
Screw
Configuration :
Stationary
Lubrication Style :
Lubricated
Air delivery :
441~569cfm , 12.5~16.1m3/min
Voltage :
380V/50hz
Pressure :
7~13bar
Dimension(L*W*H) :
2000*1120*1590mm
Weight :
1421kg
Marketing Type :
Ordinary Product
Air end :
Hanbell/Rotorcomp
Motor :
Suma/Delta/Siemens/ABB
Cooling method :
Air Cooling
Noise :
82dB(A)
OEM :
Accpet
Oil content :
less than 3ppm
Description

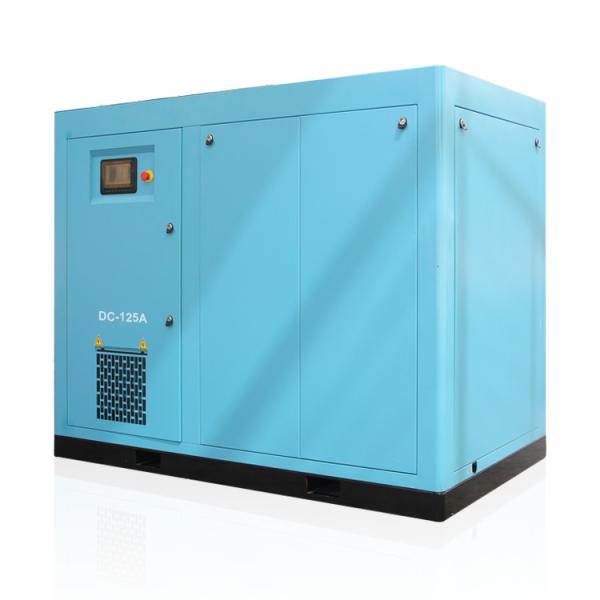

90kW Fixed Speed Silent Air Compressor 8 bar 125 hp Industrial Air Screw Compressor
DC series Screw Air Compressor Instruction:

The DC series compressor represent a giant leap in design and performance with each component designed for reliability and ease of maintenance. The compressor is manufactured in compliance with applicable international standards CE,IAF and others and designed as per the international quality standards. These new generation compressor significantly reduce operating costs and provide cost savings with fast return on investment.

The DC series industrial screw air compressor comes configured as direct driven(7.5kW - 400kW) with discharge pressures from 0.7MPa to 1.3MPa ( 7~13Bar ). And can variable frequency.
* Model: DC-125A
* Free air delivery: 15.5m3/min
* Working pressure: 8 bar
* Screw air end rotor lobe: 5:6
* Brand of screw air end: Hanbell Taiwan
* Control: PLC
* Driven: direct
* Cooling: by air
* Electric motor: 125hp 90KW 380V/50hz/3ph
* Discharge temperature: less than ambient +8 ℃
* Noise: less than 68 dB(A)
* Air outlet size: G1”
* Dimension: 2000*1120*1590mm
* Weight:1421kg
Technical Parameters
DHH Air flow Capacity(m3/min)/cfm Power Noise Outlet Diameter Dimension Weight
0.7Mpa 0.8Mpa 1.0Mpa 1.3Mpa KW/HP DB(A) INCH W×D×H mm Kg
MODEL m3/min m3/min m3/min m3/min
DC-30A 3.6 3.4 3.2 2.8 22/30 68 G1'' 1330×830×1265 370
DC-50A 6.5 6.2 5.6 4.9 37/50 69 G1'' 1/2'' 1500×940×1415 655
DC-75A/W 10.1 9.5 8.5 7.5 55/75 70 G2'' 1600×1060×1470 1050
DC-100A/W 13.6 12.8 12.3 10.2 75/100 72 G2'' 2000×1120×1590 1291
DC-125A/W 16.1 15.5 14 12.5 90/125 72 DN50 2000×1120×1590 1421
DC-150A/W 21.2 19.6 17.8 15.5 110/150 73 DN65 2300×1600×1790 1970
DC-175A/W 24.1 23.2 20.5 17.8 132/175 74 DN65 2300×1600×1790 2120
DC-220A/W 28.8 27.8 25 22.4 160/220 75 DN80 2650×1700×1850 3620
DC-250A/W 32.5 31.2 28 25.8 185/250 77 DN80 2650×1700×1850 3800
DC-270A/W 34.5 34 30.5 28 200/270 76 DN80 2500×1700×1850 4200
DC-300A/W 36.8 34.7 31.5 29.5 220/300 80 DN100 3000×1900×1930 4800
DC-350A/W 43 41.5 38 34.9 250/350 78 DN100 3000×1900×1930 5200
DC-375A/W 51.35 50.59 46.06 41.51 280/375 82 DN125 4200×2200×2240 7500
DC-400A/W 56.79 55.95 50.08 45.62 315/400 82 DN125 4200×2200×2240 7500
DC-450A/W 66.08 65.43 55.12 49.58 355/450 83 DN125 4360×2150×2258 8200
DC-500A/W 75.05 74.31 64.46 58.07 400/500 83 DN125 4360×2150×2258 8200

1.A represents air-cooling type,W represents water-cooling type;

2.Working Environment temperature: -5ºC~45ºC;
3.Discharge temperature is less than ambient temperature +10ºC~15ºC;

4.Drive Mode: coupling direct driven;
5.Startup Mode: direct start under 11kw, and above 11kw;
6.Work Power: 380V / 50HZ, other voltages can be made for customers;
7.F.A.D volume flow test is according to ASMC PTC9 or ISO1217 standard (GB/T3853)

Factory workshop

DHH Screw Compressor Co. Ltd was founded in 1996, is a high-tech enterprise specialized in the R&D and the production of screw type air compressor, Chinese has established two manufacturing base (Shanghai DHH, and DHH Jiangsu ) to provide various types of screw air compressors for users around the world.DHH give you quality guaranty for all products, good after-sale and lifelong maintenance. Welcome to choose us as your partner and best supplier! Now we have fixed speed (belt driven and direct driven) screw air compressor; VSD variable speed frequency screw air compressor, permanent magnet frequency screw compressor and two stage double screw air compressor etc.
