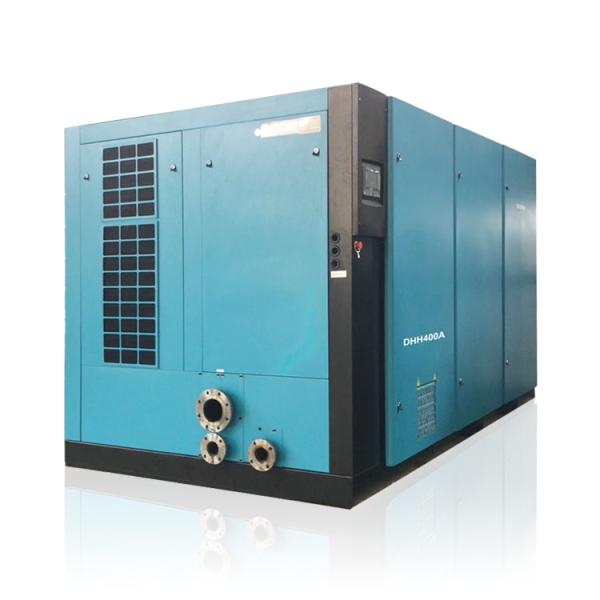

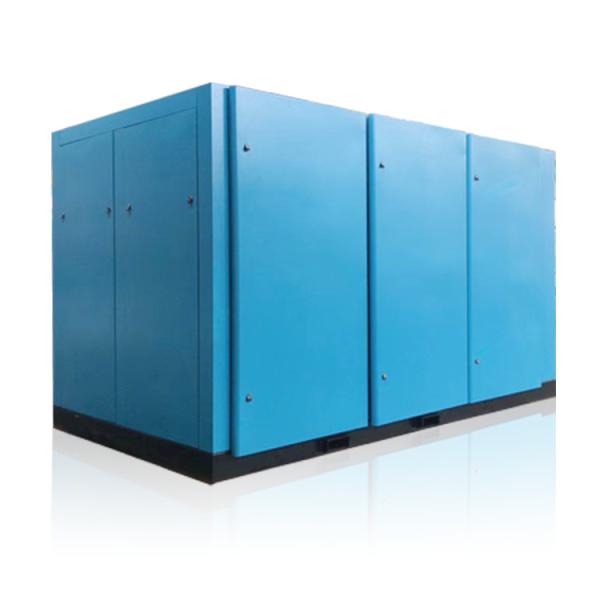

Stationary Fixed Speed Air Compressor 400kw Electric Rotary Screw Type Air Compressor
Stationary Fixed Speed Air Compressor 400kw Electric Rotary Screw Type Air Compressor
Stationary Fixed Speed Air Compressor 400kw Electric Rotary Screw Type Air Compressor
Stationary Fixed Speed Air Compressor 400kw Electric Rotary Screw Type Air Compressor
Stationary Fixed Speed Air Compressor 400kw Electric Rotary Screw Type Air Compressor
Stationary Fixed Speed Air Compressor 400kw Electric Rotary Screw Type Air Compressor
Stationary Fixed Speed Air Compressor 400kw Electric Rotary Screw Type Air Compressor
Stationary Fixed Speed Air Compressor 400kw Electric Rotary Screw Type Air Compressor
Stationary Fixed Speed Air Compressor 400kw Electric Rotary Screw Type Air Compressor
Stationary Fixed Speed Air Compressor 400kw Electric Rotary Screw Type Air Compressor
Stationary Fixed Speed Air Compressor 400kw Electric Rotary Screw Type Air Compressor
Stationary Fixed Speed Air Compressor 400kw Electric Rotary Screw Type Air Compressor
Specifications
Place of Origin :
Jiangsu
Brand Name :
DHH
Certification :
CE/ISO9001
Packaging Details :
Wooden box
Supply Ability :
600set/months
Price :
Negotiate
MOQ :
1set
Delivery Time :
25days
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Model Number :
DC-400A
Voltage :
380V/50HZ or Customized
Type :
Screw
Capacity :
0.63m3-75m3
Configuration :
Stationary
Power Source :
AC POWER
Dimension(L*W*H) :
4200*2200*2240
Weight :
7600kg
Warranty :
1 year
Application :
General Industry
Brand of screw air end :
Hanbell
Motor :
Suma
Cooling method :
Air Cooling
Pressure :
7bar 8bar 10bar 13bar
Bearing :
Sweden SKF
Control :
PLC
Discharge temperature :
less than ambient +8 ℃
Description

Gold Manufacturer 400 kw Eectric Rotary Screw Type Air Compressor With CE Certificate

Product features of screw air compressor

1. Efficient airend
There is no intermediate transmission, so there is no energy loss. direct drive increases reliability and reduces maintenance costs; large rotors run at low speeds, with higher efficiency, lower noise, lower vibration, and lower energy consumption.

2. High-quality independent oil pump forced lubrication design
Forced lubrication with independent oil pump.

3. Increase customized oil and gas separation system
Increase the customized oil and gas separation system to ensure the ultimate oil and gas separation effect and ensure that the oil content of the air is less than 3ppm.

Company Information

Our Factory has been in air compressors industry for 20years, now we have fixed speed (belt driven), fixed speed (direct driven) screw air compressors; VSD variable speed frequency screw air compressors, inverter compressors work very good and save electricity. Besides we also have the newest technology for permanent magnet frequency screw air compressors, this new technology screw air compressor super environmental and save energy, quite lower noise, almost mute, best choice if your work shop have high request of environment.

Welcome to choose us as your partner and best supplier!

Our direct driven fixed speed screw air compressors parameter list:

DHH Air Flow Capacity(m³/min) Power Noise Outlet Diameter Dimension Weight
Model 0.7Mpa 0.8Mpa 1.0Mpa 1.3Mpa KW HP dB(A) INCH WxDxH mm Kg
DC-30A 3.6 3.4 3.2 2.8 22 30 68 G1'' 1300x920x1100 700
DC-50A 6.5 6.2 5.6 4.9 37 50 69 G1 1/2'' 1450x1000x1240 900
DC-75A/W 10.1 9.5 8.5 7.5 55 75 70 G2'' 1720x1200x1340 1700
DC-100A/W 13.6 12.8 12.3 10.2 75 100 72 G2'' 2010x1260x1460 1900
DC-125A/W 16.1 15.5 14.0 12.5 90 125 72 DN50 2010x1260x1460 2500
DC-150A/W 21.2 19.6 17.8 15.5 110 150 73 DN65 2300x1600x1790 2800
DC-175A/W 24.1 23.3 20.5 17.8 132 175 74 DN65 2300x1600x1790 3000
DC-220A/W 28.8 27.8 25.0 22.4 160 220 75 DN80 2650x1700x1850 3500
DC-250A/W 32.5 31.2 28.0 25.8 185 250 77 DN80 2650x1700x1850 3800
DC-270A/W 34.5 34.0 30.5 28 200 270 76 DN80 2650x1700x1850 4200
DC-300A/W 36.8 34.7 31.5 29.5 220 300 80 DN100 3000x1900x1930 4800
DC-350A/W 43.0 41.5 38.0 34.9 250 350 78 DN100 3000x1900x1930 5200
DC-375A/W 51.35 50.59 46.06 41.51 280 375 82 DN125 4200x2200x2240 7600
DC-400A/W 56.79 55.95 50.08 45.62 315 400 82 DN125 4200x2200x2240 7600
DC-450A/W 66.08 65.43 55.12 49.58 355 450 83 DN125 4200x2200x2240 8200
DC-500A/W 75.05 74.31 64.46 58.07 400 500 83 DN125 4200x2200x2240 8200

1.A represents air-cooling type,W represents water-cooling type;2.Working Environment temperature: -5ºC~45ºC;
3.Discharge temperature is less than ambient temperature +10ºC~15ºC;
4.Drive Mode: coupling direct driven;
5.Startup Mode: direct start under 11kw, and above 11kw;
6.Work Power: 380V / 50HZ, 460V / 230V / 6KV and 10KV voltages can be made for customers;
7.F.A.D volume flow test is according to ASMC PTC9 or ISO1217 standard (GB/T3853)

FAQ

Q1. Are you trading company or manufacture ?

A: We are professional manufacture of screw air compressor of Qidong(Close to Shanghai), China, more than 24 years.

Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.

Q3. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.

Q5. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.

Q6. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.

Q7. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment.

Q8. How do you control quality ?
A: 1.The raw materials are strictly inspected
2. Some key parts are imported from overseas
3.Each compressor must pass at least 5 hours of continuous testing before leaving the factory.

Q9. Do you offer OEM service ?
A: Yes.Both OEM & ODM service can be accepted.

Q10.How long could your air compressor be used?
A: Generally, more than 10 years.
