10hp 7.5kw Variable Speed Screw Compressor 8bar Industrial Air Compressors
10hp 7.5kw Variable Speed Screw Compressor 8bar Industrial Air Compressors
10hp 7.5kw Variable Speed Screw Compressor 8bar Industrial Air Compressors
10hp 7.5kw Variable Speed Screw Compressor 8bar Industrial Air Compressors
10hp 7.5kw Variable Speed Screw Compressor 8bar Industrial Air Compressors
10hp 7.5kw Variable Speed Screw Compressor 8bar Industrial Air Compressors
10hp 7.5kw Variable Speed Screw Compressor 8bar Industrial Air Compressors
10hp 7.5kw Variable Speed Screw Compressor 8bar Industrial Air Compressors
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Dehaha
Model Number :
DM-10A
Packaging Details :
wooden case
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Delivery Time :
25days
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Supply Ability :
600set/months
Keywords :
Air Compressor Screw
Type :
Screw
Configuration :
Stationary
Power Source :
AC POWER
Lubrication Style :
Lubricated
Mute :
Yes
Voltage :
380V/50hz or customized
Dimension(L*W*H) :
895*590*970mm
Weight :
170kg
Pressure :
7bar 8bar 10bar 13bar
Core Components :
PLC, Motor, Airend
Gas Type :
Air
Product name :
air compressor
Capacity :
2.5~26.5m3/min 88~935cfm
Application :
General Industry
Air end :
Hanbell
Motor :
IP65
Cooling method :
Oil Cooling
Brand :
DHH
Description

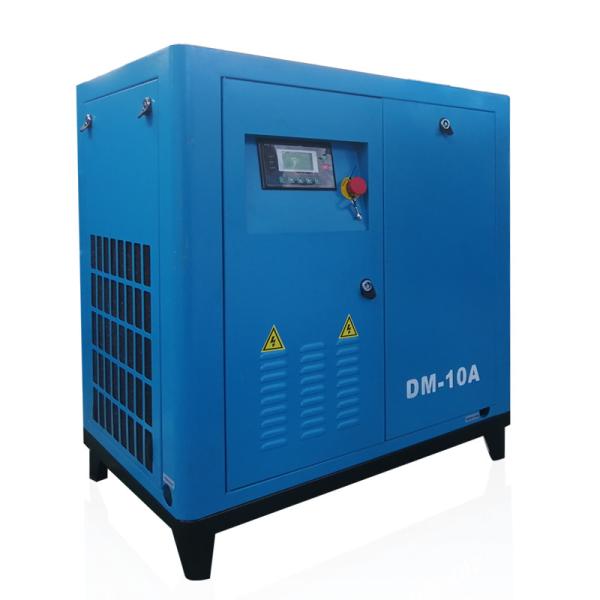

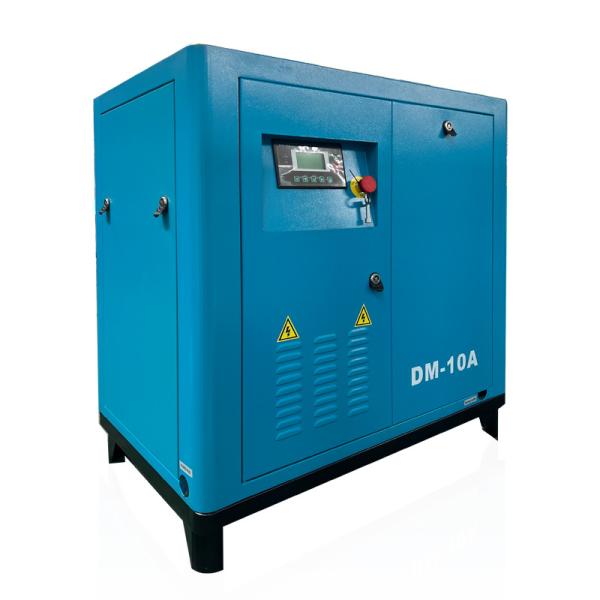

10hp 7.5kw PM VSD Frequency Conversion Screw Compressor for Sale 8bar Industrial Air-Compressors
Model:DM-10A
Air delivery: 1.2 m3/min
Exhaust pressure: 0.8 MPa
Motor Power: 7.5 kW
Motor speed: 3600 r/min
Voltage frequency: 380V/50HZ
Motor protection classs: IP54
Drive mode: Permanent magnet frequency conversion
Noise: ≤63±2 dB(A)
Cooling method: Air cooling
Lubricant oil quantity: 8L
Automatic start method: Frequency conversion start
Outlet size: G3/4
Dimension: 895*590*970mm
Technical Parameters
Model
Air delivery(m3/min)
Power(kW)
Noise(db)
Outlet diameter
Dimension(mm)
Weight(kg)
0.7mpa
0.8mpa
1.0mpa
1.3Mpa
DM-10A
1.3
1.2
1
/
7.5
63
G3/4
895*590*970
190
DM-20A
2.4
2.3
2
1.7
15
65
G3/4
1062*690*1000
236
DM-30A
4.2
3.7
3.2
2.8
22
68
G1
1330*830*1265
410
DM-40A
5.7
5.2
/
/
30
68
G1
1330*830*1265
520
DM-50A
6.9
6.5
5.6
4.9
37
69
G1 1/2
1500*940*1415
655
DM-60A
8.1
7.5
6.8
5.9
45
70
G1 1/2
1500*940*1415
730
DM-75A
10.3
9.5
8.3
7.8
55
70
G2
1600*1060*1470
950
DM-100A
13
12.8
11
9.5
75
72
G2
2000*1120*1590
1070
DM-125A
16.7
15.5
14
12.5
90
72
G2
2000*1120*1590
1221
DM-150A
20.8
19.6
17.8
15.5
110
72
DN65
2400*1630*1980
1950
DM-175A
24.1
23.2
19.5
17
132
72
DN65
2400*1630*1980
2150
DM-220A
28.8
27.8
23
20
160
72
DN80
2800*1828*2150
3620
DM-250A
33.2
31.2
27.5
25.8
185
72
DN80
2800*1828*2150
3920
DM-350A
43
41.5
38
34.9
250
76
DN100
4260*2182*2170
5200
Application Industry
Project Case
Certificate
Company Profile
FAQ

1.Why customer choose us?
DHH COMPRESSOR JIANGSU CO.,LTD.with 23 years old history,we are specialized in Rotary Screw Air Compressor.Germany Standard and 13 years exporting experience help us won more than 30 loyal foreign agents.We warmly welcome your small trial order for quality or market test.

2.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in Qidong,China,with professional design team.Both OEM & ODM service can be accepted.

3.Where is your factory located? How can I visit there?
Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it’s about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!

4.What’s your delivery time?
380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days,if urgently order,pls contact our sales in advance.

5.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts and we can provide some spare parts of the machines.

6.How does your factory do regarding quality control?
Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.


7.How long could your air compressor be used?
Generally, more than 10 years.

8. What's payment term?
T/T,L/C,D/P,Western Union,Paypal,Credit Card,and etc.Also we could accept USD, RMB, Euro and other currency.

9.How about your customer service?
24 hours on-line service available.48 hours problem solved promise.

10.How about your after-sales service?
(1) Provide customers with installation and commissioning online instructions.
(2) Well-trained engineers available to overseas service.
(3) Worldwide agents and after service available.
