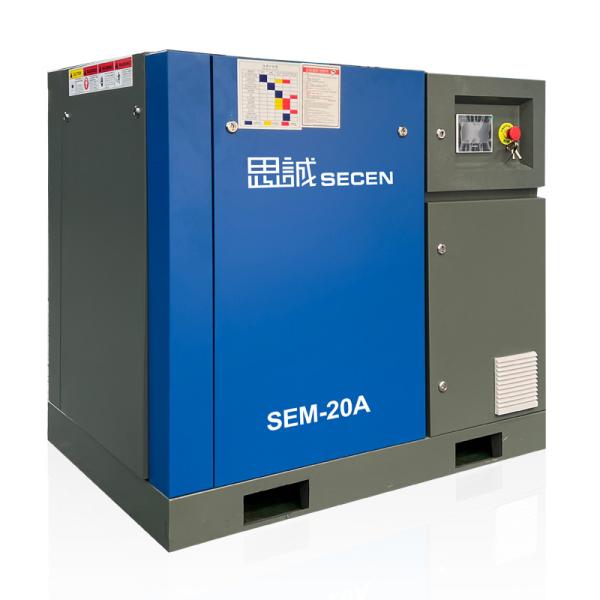

Variable Speed 20hp Rotary Screw Compressor 15kw 8 Bar 20hp Air Compressor
Variable Speed 20hp Rotary Screw Compressor 15kw 8 Bar 20hp Air Compressor
Variable Speed 20hp Rotary Screw Compressor 15kw 8 Bar 20hp Air Compressor
Variable Speed 20hp Rotary Screw Compressor 15kw 8 Bar 20hp Air Compressor
Variable Speed 20hp Rotary Screw Compressor 15kw 8 Bar 20hp Air Compressor
Variable Speed 20hp Rotary Screw Compressor 15kw 8 Bar 20hp Air Compressor
Variable Speed 20hp Rotary Screw Compressor 15kw 8 Bar 20hp Air Compressor
Variable Speed 20hp Rotary Screw Compressor 15kw 8 Bar 20hp Air Compressor
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
DEHAHA
Model Number :
SEM-20A
Packaging Details :
Plywood case
Supply Ability :
600set/months
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Delivery Time :
25days
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Product name :
Screw Compressor
Type :
Screw
Configuration :
Stationary
Power Source :
AC POWER
Lubrication Style :
Lubricated
Voltage :
380V/220V/110V(can be customized)
Dimension(L*W*H) :
800*600*800mm
Weight :
130kg
Warranty :
12 months
Working Pressure :
8 bar
Air delivery :
2.5m3/min 88cfm
Control :
PLC
Pressure :
8 Bar/116Psi
Motor power :
10hp 7.5KW
Motor :
Permanent magnet motor
Start method :
Frequency conversion start
Application :
General Industry
OEM :
Avaliable
Description
Professional Industry Variable Speed 15kw 20hp 8 Bar Screw Air-Compressors
Exhaust volume: 2.43 m3/min
Exhaust pressure: 0.8 MPa
Motor Power: 15 kW
Motor speed: 3600 r/min
Voltage frequency: 380V/50HZ
Motor protection class/insulation class: IP 23/F
Drive mode: Direct
Noise : ≤70±2 dB(A)
Cooling method: Air cooling
Lubricant oil quantity: 10L
Automatic start method: Frequency conversion start
Outlet size: G3/4 ＂
Outlet compressed air temperature after cooling: Ambient temperature +12C°
Dimension:1110*750*1010mm
Model

Air delivery

(m3/min)

 Power
(kW)

Noise

(DB)

Outlet

diameter

 Dimension(mm) Weight
(kg)
0.8Mpa Length Width Height
SEM-10A 1.01 7.5 65±2 RP3/4 862 662 832 125
SEM-20A 2.30 15 70±2 G3/4 1110 750 1010 236
SEM-30A 3.40 22 70±2 G1 1210 800 1160 301
SEM-50A 6.10 37 70±2 G1 1/2 1250 1010 1250 460
Application Industry
Mining, Chemical Industry, Deep well operation, Food Industry, Textile industry, precision instrument, Glass industry, Biochemical, Electronicindustry, Sewage treatment.
Project Case
Certificate
FAQ

1.Why customer choose us?
DHH COMPRESSOR JIANGSU CO.,LTD.with 23 years old history,we are specialized in Rotary Screw Air Compressor.Germany Standard and 13 years exporting experience help us won more than 30 loyal foreign agents.We warmly welcome your small trial order for quality or market test.

2.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in Qidong,China,with professional design team.Both OEM & ODM service can be accepted.

3.Where is your factory located? How can I visit there?
Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it’s about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!

4.What’s your delivery time?
380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days,if urgently order,pls contact our sales in advance.

5.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts and we can provide some spare parts of the machines.

6.How does your factory do regarding quality control?
Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.


7.How long could your air compressor be used?
Generally, more than 10 years.

8. What's payment term?
T/T,L/C,D/P,Western Union,Paypal,Credit Card,and etc.Also we could accept USD, RMB, Euro and other currency.

9.How about your after-sales service?
(1) Provide customers with installation and commissioning online instructions.
(2) Well-trained engineers available to overseas service.
(3) Worldwide agents and after service available.
