IE4 Variable Speed Screw Compressor 22kW 30HP Permanent Magnet Screw Compressor
IE4 Variable Speed Screw Compressor 22kW 30HP Permanent Magnet Screw Compressor
IE4 Variable Speed Screw Compressor 22kW 30HP Permanent Magnet Screw Compressor
IE4 Variable Speed Screw Compressor 22kW 30HP Permanent Magnet Screw Compressor
IE4 Variable Speed Screw Compressor 22kW 30HP Permanent Magnet Screw Compressor
IE4 Variable Speed Screw Compressor 22kW 30HP Permanent Magnet Screw Compressor
IE4 Variable Speed Screw Compressor 22kW 30HP Permanent Magnet Screw Compressor
IE4 Variable Speed Screw Compressor 22kW 30HP Permanent Magnet Screw Compressor
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Dehaha
Model Number :
DM-30A
Packaging Details :
wooden case
Supply Ability :
600set/months
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Delivery Time :
25days
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Product name :
Air Compressor
Type :
Screw
Configuration :
Stationary
Power Source :
AC POWER
Lubrication Style :
Lubricated
Mute :
Yes
Voltage :
Customer requirements
Capacity :
1.2~34.9m3/min 42.4~1232cfm
Motor brand :
Siemens/ABB/WEG
Inverter :
Siemens/Inovance/ABB
Air end :
Rotorcomp/Hanbell
Motor energy efficiency rating :
IE4
Motor protection level :
IP54/IP55/IP65
Working Pressure :
8 bar
Dimension(L*W*H) :
1330*830*1265 mm
Weight :
410kg
Warranty :
2 years
OEM :
Avaliable
MOQ :
1set
Description
Single Stage Industrial Compact PM Variable frequency Screw Air Compressors for Spray Painting

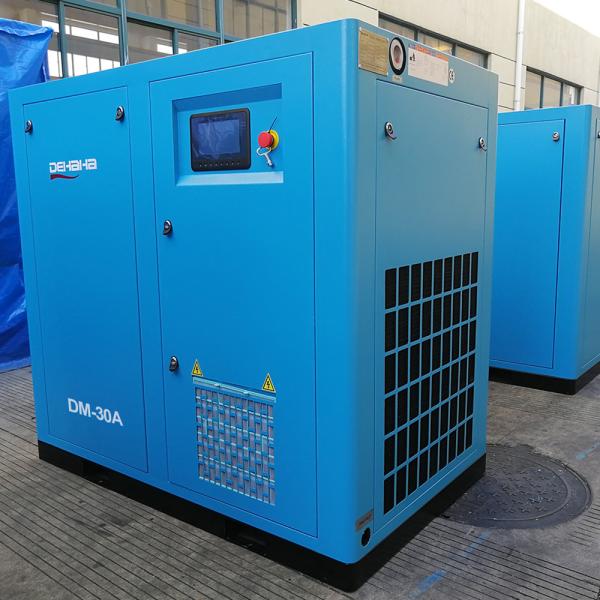

Model: DM-30A
Free air delivery: 3.7m3/min
Working pressure: 8 bar
Screw air end rotor lobe: 5:6
Brand of screw air end: Hanbell Taiwan AB series
Control: PLC
Driven: direct
Cooling: by air
Electric motor: Permanent Magnet type 30hp 22KW, protection level IP65, oil cooling
Discharge temperature: less than ambient +8 ℃
Noise: less than 68 dB(A)
Air outlet size: G1”
Dimension: 1330*830*1265mm
Weight: 410kg
Warranty: 12 months from date of delivery
Technical Parameters
Model Air Delivery (m3/min) Power (kW) Noise (Db) Outlet diameter Dimension (mm) Weight (Kg)
0.7Mpa 0.8Mpa 1.0Mpa 1.3Mpa Length Width Height
DM-10A 1.3 1.2 1 / 7.5 63 G3/4 895 590 970 190
DM-20A 2.4 2.3 2 1.7 15 65 G3/4 1062 690 1000 236
DM-30A 4.15 3.7 3.2 2.8 22 68 G1 1330 830 1265 410
DM-40A 5.7 5.2 / / 30 68 G1 1330 830 1265 520

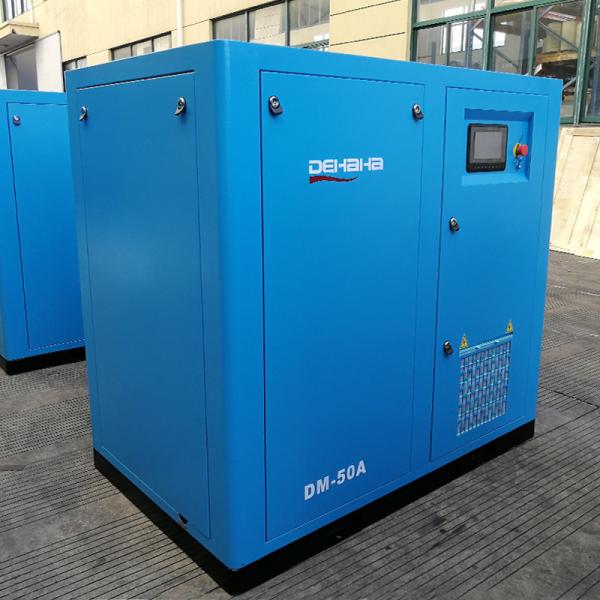

DM-50A 6.9 6.5 5.6 4.9 37 69 G1 1/2 1500 940 1415 655
DM-60A 8.1 7.5 6.75 5.9 45 70 G1 1/2 1500 940 1415 730
DM-75A 10.3 9.5 8.3 7.8 55 70 G2 1600 1060 1470 950
DM-100A 13 12.8 11 9.5 75 72 G2 2000 1120 1590 1070
DM-125A 16.7 15.5 14.0 12.5 90 72 G2 2000 1120 1590 1221
DM-150A 20.8 19.6 17.8 15.5 110 72 DN65 2400 1630 1980 1950
DM-175A 24.1 23.2 19.5 17 132 72 DN65 2400 1630 1980 2150
DM-220A 28.8 27.8 23.0 20 160 72 DN80 2800 1828 2150 3620
DM-250A 33.2 31.2 27.5 25.8 185 72 DN80 2800 1828 2150 3920

Permanent magnet motor

Reach IE4 efficiency standard

Lubricant-cooled motor

VSD: variable speed drive

IP65 protection

New compressor airend

●New improved rotor profile

■R&D in Germany

■Designed to give many years of reliable operation

Inlet filter

●Nano scale Heavy duty

●Filtration accuracy upto 99.9%

●Dust particles below 0.3 micron

●Pressure drop indicator

VSD fan

●VSD control

●Compact

●Low noise level

●High capacity for optimized cooling

●Low power consumption

Classic cooler design

● Easy access for maintenance

● Paint anti-corrosion coating on surface

● 30% oversized cooler design

Innovative flux vector inverter

Wide voltage design

Meets C3 and C3 EMC requirements

Built-in DC reactor

Independent cooling air duct design

Touch PLC

●7.0 inch full color touch screen

●Real-time operation/ maintenance/ alarm information

●Full graphical flow diagram

●Operation record/ chart display

●Multiple languages

●Weekly and daily scheduling, service history and planning

●On board RS485 interface

Application Industry
Company Profile
FAQ

Q1:Are you factory or trading company?

A1: We are factory.

Q2:Where is your factory located? How can I visit there?

A2: Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it’s about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!

Q3: Will you provide some spare parts of the machines?

A3: Yes, of course.

Q4: Warranty terms of your machine?

A4: Two years warranty for Air End, one year for spare part.

Q5: How long will you take to arrange production?

A5:380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days.

Q6:How does your factory do regarding quality control?

A6:Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.

Q7: Can you accept OEM orders?

A7: Yes, with professional design team, OEM orders are highly welcome.
