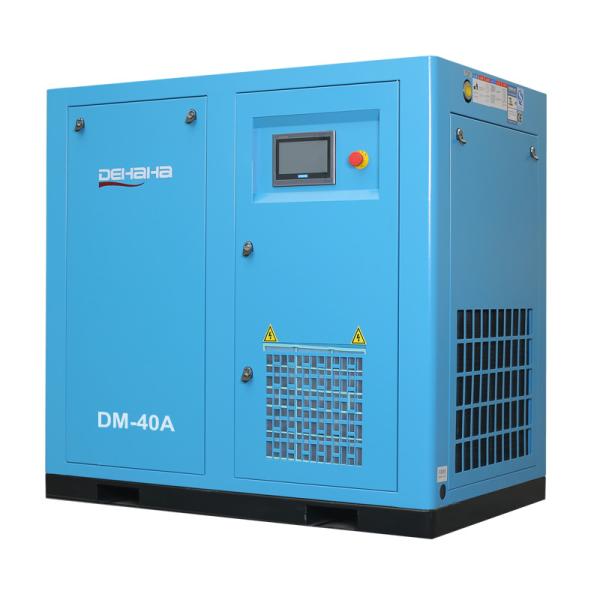

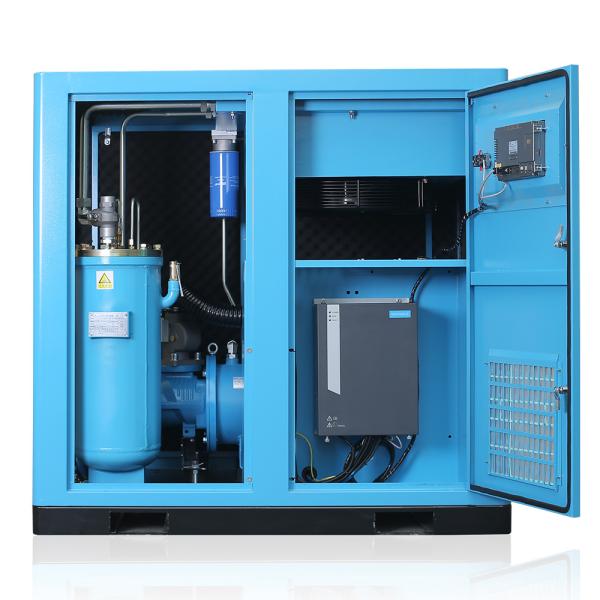

Electric 30kW 40hp Variable Speed Screw Compressor 185Cfm Rotary Air Compressor
Electric 30kW 40hp Variable Speed Screw Compressor 185Cfm Rotary Air Compressor
Electric 30kW 40hp Variable Speed Screw Compressor 185Cfm Rotary Air Compressor
Electric 30kW 40hp Variable Speed Screw Compressor 185Cfm Rotary Air Compressor
Electric 30kW 40hp Variable Speed Screw Compressor 185Cfm Rotary Air Compressor
Electric 30kW 40hp Variable Speed Screw Compressor 185Cfm Rotary Air Compressor
Electric 30kW 40hp Variable Speed Screw Compressor 185Cfm Rotary Air Compressor
Electric 30kW 40hp Variable Speed Screw Compressor 185Cfm Rotary Air Compressor
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
DHH
Model Number :
DM-40A
Packaging Details :
Plywood case
Supply Ability :
600set/months
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Delivery Time :
25days
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Product name :
Screw air compressor
Type :
Screw
Configuration :
Stationary
Power Source :
AC POWER
Lubrication Style :
Lubricated
Voltage :
380V/50hz or customer's requirement
Capacity :
5.2 m3/min 185cfm
Working Pressure :
7 bar, 8 bar, 10 bar, 13 bar
Air end :
Hanbell/Rotorcomp
Motor :
IP54/IP55
Cooling method :
Air Cooling
Application :
General Industry
Dimension(L*W*H) :
1330*830*1265 mm
Weight :
520 kg
Warranty :
12 months
OEM :
Acceptd
Description
Factory Price Energy Saving 30kW 40hp Air-Compressors Electric Rotary 185 Cfm Air Compressor
Products features

Super Premium Efficiency PM Motor (IE4 equivalent) Oil-cooled motor.

1.Fully enclosed IP65 protection.
2.Reach lE4 efficiency standard.
3.VSD: variable speed drive.
4.Optimal cooling for all speeds and ambient conditions.
5.Bearing free motor requires zero maintenance.
6.UH series Permanent magnets resist to 180°C
7.F grade insulation and B grade temperature rise assessment.
8.High temperature design prevents demagnetization.

Technical parameter
Model: DM-40A
Free air delivery: 5.2m3/min
Working pressure: 8 bar
Screw air end rotor lobe: 5:6
Brand of screw air end: Hanbell Taiwan AB series
Control: PLC
Driven: direct
Cooling: by air
Electric motor: Permanent Magnet type 30hp 22KW, protection level IP65, oil cooling
Discharge temperature: less than ambient +8 ℃
Noise: less than 68 dB(A)
Air outlet size: G1”
Dimension: 1330*830*1265mm
Weight: 520kg

Model Air Delivery (m3/min) Power (kW) Noise (Db) Outlet diameter Dimension (mm) Weight (Kg)
0.7Mpa 0.8Mpa 1.0Mpa 1.3Mpa Length Width Height
DM-10A 1.3 1.2 1 / 7.5 63 G3/4 895 590 970 190
DM-20A 2.4 2.3 2 1.7 15 65 G3/4 1062 690 1000 236
DM-30A 4.15 3.7 3.2 2.8 22 68 G1 1330 830 1265 410
DM-40A 5.7 5.2 / / 30 68 G1 1330 830 1265 520
DM-50A 6.9 6.5 5.6 4.9 37 69 G1 1/2 1500 940 1415 655
DM-60A 8.1 7.5 6.75 5.9 45 70 G1 1/2 1500 940 1415 730
DM-75A 10.3 9.5 8.3 7.8 55 70 G2 1600 1060 1470 950
DM-100A 13 12.8 11 9.5 75 72 G2 2000 1120 1590 1070
DM-125A 16.7 15.5 14.0 12.5 90 72 G2 2000 1120 1590 1221
DM-150A 20.8 19.6 17.8 15.5 110 72 DN65 2400 1630 1980 1950
DM-175A 24.1 23.2 19.5 17 132 72 DN65 2400 1630 1980 2150
DM-220A 28.8 27.8 23.0 20 160 72 DN80 2800 1828 2150 3620
DM-250A 33.2 31.2 27.5 25.8 185 72 DN80 2800 1828 2150 3920
Application Industry
Screw air compressors are widely used in the following industries:Environmental protection, Dry cleaning industry, Precision electronics,Textile industry, Biopharmaceutical, Printing industry,Medical industry, Petrochemical,Communication,Natural gas industry ect.
Project Case
Packing & Delivery
Certificate
Company Profile
FAQ

Q1. Are you trading company or manufacture ?
A: We are professional manufacture of screw air compressor of Jiangsu, China, more than 24 years.

Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.

Q3. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.

Q5. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.

Q6. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.

Q7. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment.

Q8. How do you control quality ?
A: 1.The raw materials are strictly inspected
2. Some key parts are imported from overseas
3.Each compressor must pass at least 5 hours of continuous testing before leaving the factory.

Q9. Do you offer OEM service ?
A: Yes.Both OEM & ODM service can be accepted.

Q10.How long could your air compressor be used?
A: Generally, more than 10 years.
