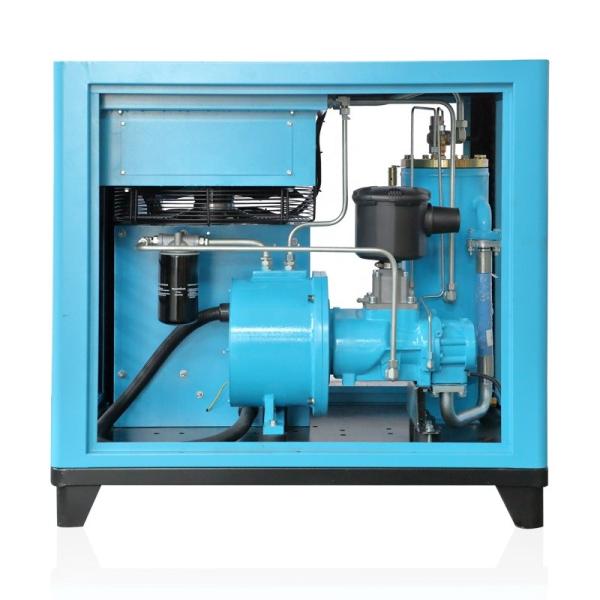

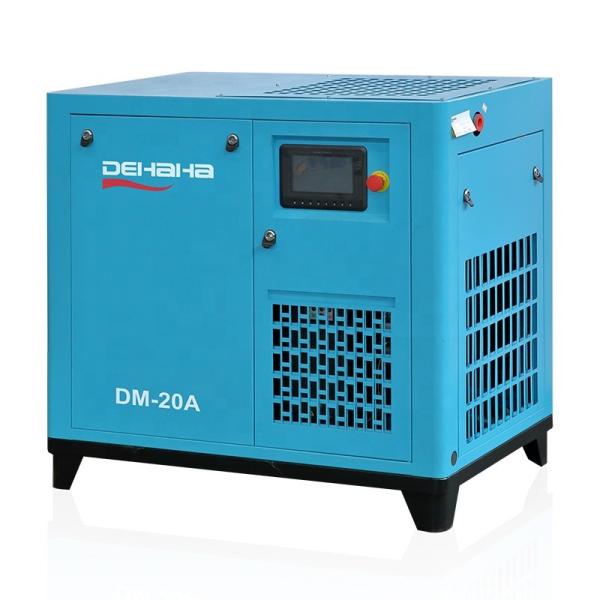

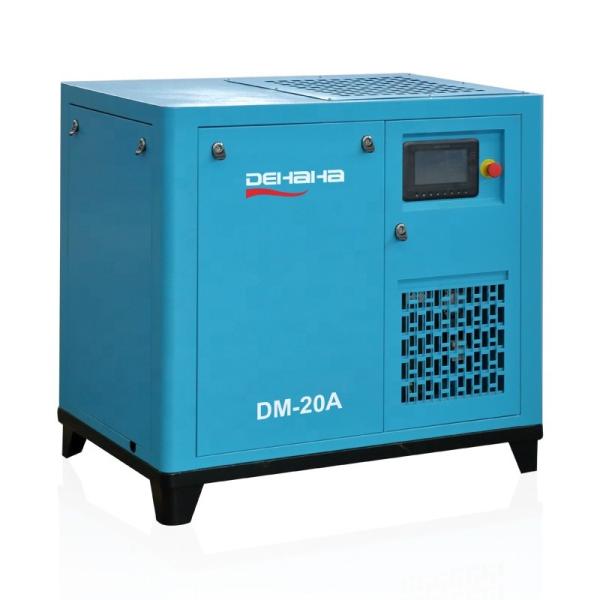

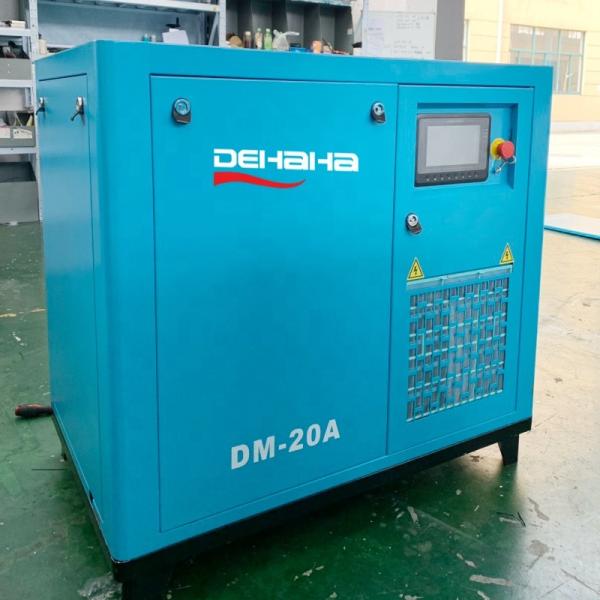

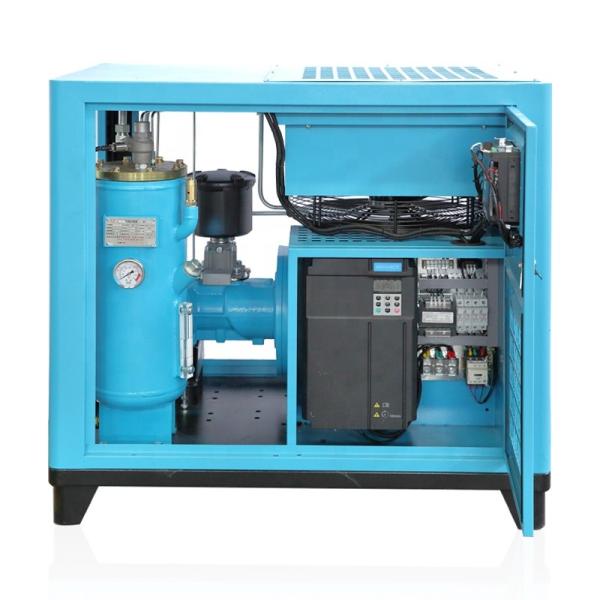

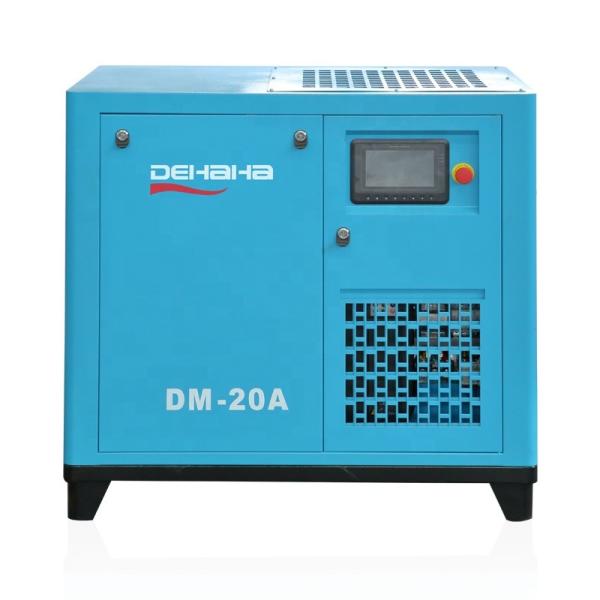

De Ar Variable Speed Screw Compressor 20HP 15kW Rotary Screw Air Compressor
De Ar Variable Speed Screw Compressor 20HP 15kW Rotary Screw Air Compressor
De Ar Variable Speed Screw Compressor 20HP 15kW Rotary Screw Air Compressor
De Ar Variable Speed Screw Compressor 20HP 15kW Rotary Screw Air Compressor
De Ar Variable Speed Screw Compressor 20HP 15kW Rotary Screw Air Compressor
De Ar Variable Speed Screw Compressor 20HP 15kW Rotary Screw Air Compressor
De Ar Variable Speed Screw Compressor 20HP 15kW Rotary Screw Air Compressor
De Ar Variable Speed Screw Compressor 20HP 15kW Rotary Screw Air Compressor
De Ar Variable Speed Screw Compressor 20HP 15kW Rotary Screw Air Compressor
De Ar Variable Speed Screw Compressor 20HP 15kW Rotary Screw Air Compressor
De Ar Variable Speed Screw Compressor 20HP 15kW Rotary Screw Air Compressor
De Ar Variable Speed Screw Compressor 20HP 15kW Rotary Screw Air Compressor
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Dehaha
Model Number :
DM-20A
Packaging Details :
Plywood case
Supply Ability :
600set/months
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Delivery Time :
25days
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Condition :
New
Type :
Screw
Configuration :
Stationary
Power Source :
AC POWER
Lubrication Style :
Lubricated
Mute :
Yes
Voltage :
220V/60HZ 380V/50HZ 460/60HZ or Customize
Capacity :
2.3m3/min
Brand of screw air end :
Hanbell Taiwan AB+ series( 6 pcs SKF bearings)
Driven :
Direct coupling
Electric motor :
Permanent Magnet type 20hp 15KW,protection level IP65, oil cooling
Dimension(L*W*H) :
1062*690*1000mm
Weight :
236kg
Working pressure :
8bar
Control :
PLC
Discharge temperature :
Less than ambient +8 ℃
Cooling :
By air
Air outlet size :
G3/4"
Warranty :
1 Year
Description
15kW 20HP Rotary Screw Air Compressor Stationary Screw Compressor Compressor de ar

Super Premium Efficiency PM Motor (IE4 equivalent) Oil-cooled motor.

  • Fully enclosed IP65 protection.
  • Reach lE4 efficiency standard.
  • VSD: variable speed drive.
  • Optimal cooling for all speeds and ambient conditions.
  • Bearing free motor requires zero maintenance.
  • UH series Permanent magnets resist to 180°C
  • F grade insulation and B grade temperature rise assessment.
  • High temperature design prevents demagnetization.
Model:DM-20A
Air delivery: 1.7~2.4 m3/min
Exhaust pressure: 0.8 MPa~1.3Mpa
Motor Power: 15 kW
Motor speed: 3600 r/min
Voltage frequency: 380V/50HZ
Motor protection classs: IP54
Drive mode: Permanent magnet frequency conversion
Noise : ≤63±2 dB(A)
Cooling method: Air cooling Lubricant oil quantity: 8L
Start method: Frequency conversion start
Outlet size: G3/4
Dimension: 1062*690*1000mm
Weight:236kg
Technical Parameters

Model Air Delivery (m3/min) Power (kW) Noise (Db) Outlet diameter Dimension (mm) Weight (Kg)
0.7Mpa 0.8Mpa 1.0Mpa 1.3Mpa Length Width Height
DM-10A 1.3 1.2 1 / 7.5 63 G3/4 895 590 970 190
DM-20A 2.4 2.3 2 1.7 15 65 G3/4 1062 690 1000 236
DM-30A 4.15 3.7 3.2 2.8 22 68 G1 1330 830 1265 410
DM-40A 5.7 5.2 / / 30 68 G1 1330 830 1265 520
DM-50A 6.9 6.5 5.6 4.9 37 69 G1 1/2 1500 940 1415 655
DM-60A 8.1 7.5 6.75 5.9 45 70 G1 1/2 1500 940 1415 730
DM-75A 10.3 9.5 8.3 7.8 55 70 G2 1600 1060 1470 950
DM-100A 13 12.8 11 9.5 75 72 G2 2000 1120 1590 1070
DM-125A 16.7 15.5 14.0 12.5 90 72 G2 2000 1120 1590 1221
DM-150A 20.8 19.6 17.8 15.5 110 72 DN65 2400 1630 1980 1950
DM-175A 24.1 23.2 19.5 17 132 72 DN65 2400 1630 1980 2150
DM-220A 28.8 27.8 23.0 20 160 72 DN80 2800 1828 2150 3620
DM-250A 33.2 31.2 27.5 25.8 185 72 DN80 2800 1828 2150 3920
Company Profile
FAQ:

Q1:Are you factory or trading company?

A1: We are factory.

Q2:Where is your factory located? How can I visit there?

A2: Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it’s about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!

Q3: Will you provide some spare parts of the machines?

A3: Yes, of course.

Q4: Warranty terms of your machine?

A4: Two years warranty for Air End, one year for spare part.

Q5: How long will you take to arrange production?

A5:380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days.

Q6:How does your factory do regarding quality control?

A6:Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.

Q7: Can you accept OEM orders?

A7: Yes, with professional design team, OEM orders are highly welcome.
