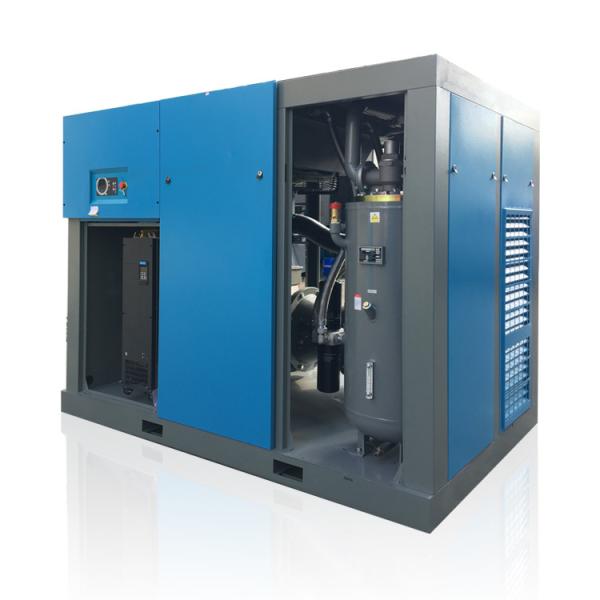

250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor
250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor
250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor
250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor
250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor
250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor
250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor
250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor
250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor
250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor
250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor
250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
DHH
Model Number :
DCF-250A
Packaging Details :
Plywood case
Supply Ability :
600set/months
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Delivery Time :
25days
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Product name :
Screw air compressor
Capacity :
34.9~43m3/min
Air end :
Hanbell/Rotorcomp
Motor :
Simens/Suma/Delta
Voltage :
380V/50hz or customer's requirement
Cooling method :
Air Cooling
Working Pressure :
7~13bar
Type :
Screw
Configuration :
Stationary
Dimension(L*W*H) :
4260*2182*2170mm
Weight :
5200kg
Warranty :
1 Year
Gas Type :
Air
Application :
General Industry
OEM :
Acceptd
After-sales Service Provided :
Engineers available to service machinery overseas
Description

250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor

Model: DC-350A
* Free air delivery:34.9~43m3/min
* Working pressure: 8~13 bar
* Screw air end rotor lobe: 5:6
* Brand of screw air end: Hanbell Taiwan
* Control: PLC
* Driven: direct
* Cooling: by air
* Electric motor: 300hp 250KW 380V/50hz/3ph
* Discharge temperature: less than ambient +8 ℃
* Noise: less than 76DB(A)
* Air outlet size: DN100”
* Dimension: 4260*2182*2170mm
* Weight:5200kg

Technical Parameters

Model
Air delivery(m3/min)
Power(kW)
Noise(db)
Outlet diameter
Dimension(mm)
Weight(kg)
0.7mpa
0.8mpa
1.0mpa
1.3Mpa
DC-10A
1.3
1.2
1
/
7.5
63
G3/4
895*590*190
190
DC-20A
2.4
2.3
2
/
15
65
G3/4
1062*1000*236
236
DC-30A
3.7
3.6
3.2
2.8
22
68
G1
1330*1265*830
400
DCF-40A
5.2
5
/
3.3
30
68
G1
1330*1265*830
500
DCF-50A
6.5
6.2
5.6
4.9
37
69
G1 1/2
1500*940*1415
655
DCF-60A
8
7.3
6
5.9
45
70
G1 1/2
1500*940*1415
730
DCF-75A
10.1
9.5
8.7
7.3
55
70
G2
1600*1060*1470
945
DCF-100A
13.6
12.8
11.3
9.2
75
72
G2
2000*1120*1590
1291
DCF-125A
16.1
15.5
13.6
12.5
90
72
G2
2000*1120*1590
1421
DC-150A
21.2
19.6
17.8
15.5
110
72
DN65
2400*1630*1980
2170
DCF-175A
24.1
23.2
19.5
17.8
132
72
DN65
2400*1630*1980
2350
DCF-220A
28.8
27.8
23
20
160
72
DN80
2800*1828*2150
3620
DCF-250A
32.5
31.2
27.5
25.8
185
72
DN80
2800*1828*2150
3920
DCF-275A
34.5
34
30.5
28
200
76
DN80
2800*1828*2150
4200
DCF-300A
36.8
34.7
31.5
29.5
220
76
DN100
4260*2182*2170
4800
DCF-350A
43
41.5
38
34.9
250
76
DN100
4260*2182*2170
5200
DCF-375A
51.3
50.6
46
41.5
280
82
DN100
4360*2150*2258
7500
DCF-420A
56.8
55.9
50.1
42
315
82
DN125
4360*2150*2258
7500
DCF-420W
56.8
55.9
50.1
42
315
82
DN125
3800*2200*2250
7200
DCF-475A
66.1
65.4
55.1
46
355
85
DN125
4600*2240*2260
9000
DCF-475W
66.1
65.4
55.1
46
355
82
DN125
3800*2200*2250
8570




250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor

Project Case

Air compressors belong to the general equipment category and are widely used in steel, electric power, metallurgy, shipbuilding, textiles, electronics, chemicals, petroleum, mining, light industry, machinery manufacturing, paper printing, transportation facilities, food and medicine, casting and spraying, shipping terminals, Military technology, automotive technology, automotive industry, aerospace, infrastructure and other fields.

250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor

Why choose us




250kw 350HP Driven Direct Rotary Screw Compressor Variable Speed Screw Air Compressor1.Quality Guarantee
With more than 24 years industry experience and our compressor approved by CE, ISO9001, SGS, And TUV test.The raw materials are strictly inspected and Some key parts are imported from overseas.Each compressor must pass at least 5 hours of continuous testing before leaving the factory.

2.Warranty Period
The complete machines are proviede with one-year warranty, and the compressor air end with Two-year warranty and lifetime maintenance(With the exception of wearing parts)

3. Installation and Commissioning
Provied customers with installation and commissioning instructions,and all service-providing personnel are strictly trained technically by our company.

4.After -sales Services
Our company has service network in world, giving prompt replies to customers after notified within 24~48hours for troubleshooting.

5.Spare Parts
Our company always supply spare parts on most favorable terms.
