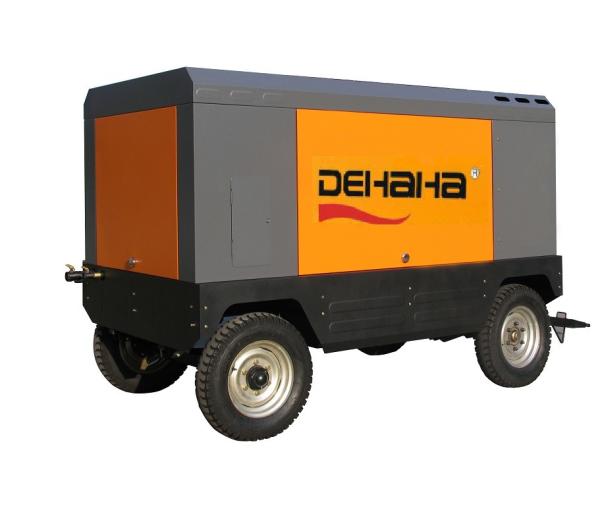

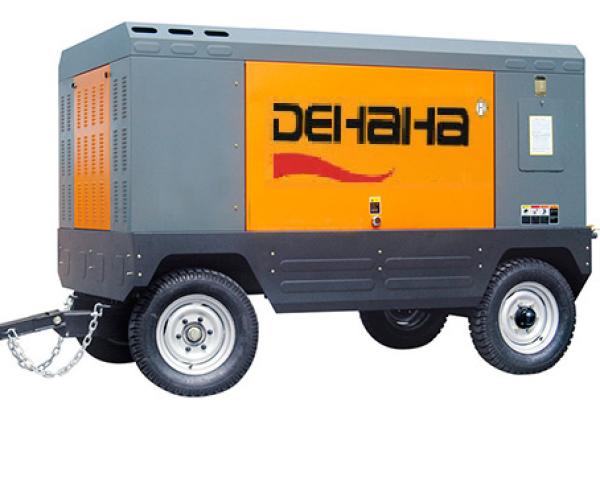

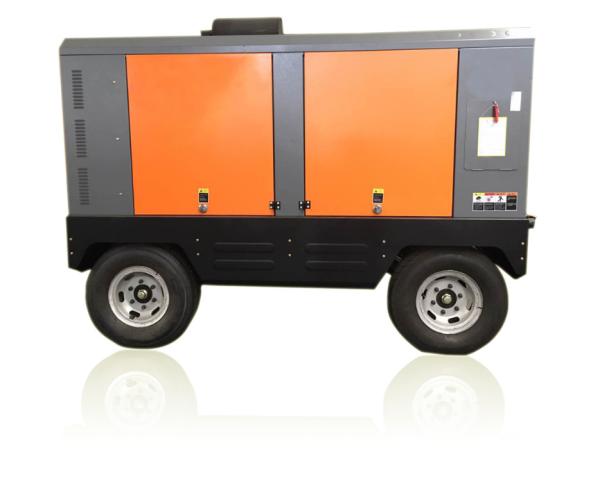

12 Bar Diesel Powered Portable Air Compressor 500cfm Sand Blasting Air Compressor
12 Bar Diesel Powered Portable Air Compressor 500cfm Sand Blasting Air Compressor
12 Bar Diesel Powered Portable Air Compressor 500cfm Sand Blasting Air Compressor
12 Bar Diesel Powered Portable Air Compressor 500cfm Sand Blasting Air Compressor
12 Bar Diesel Powered Portable Air Compressor 500cfm Sand Blasting Air Compressor
12 Bar Diesel Powered Portable Air Compressor 500cfm Sand Blasting Air Compressor
12 Bar Diesel Powered Portable Air Compressor 500cfm Sand Blasting Air Compressor
12 Bar Diesel Powered Portable Air Compressor 500cfm Sand Blasting Air Compressor
12 Bar Diesel Powered Portable Air Compressor 500cfm Sand Blasting Air Compressor
12 Bar Diesel Powered Portable Air Compressor 500cfm Sand Blasting Air Compressor
Specifications
Place of Origin :
Jiangsu
Brand Name :
dhh
Model Number :
138DHY-12
Packaging Details :
Wooden box
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1 SET
Delivery Time :
25 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600 set/month
Product name :
12 Bar diesel engine portable air compressor
Type :
Screw
Configuration :
Stationary
Power Source :
Diesel
Dimension(L*W*H) :
2890*2020*2270mm
Weight :
2260kg
Warranty :
1 Year
Gas Type :
Air
Application :
Sand Blasting
Cooling method :
Air Cooling
Pressure :
8-13bar
Capacity :
500cfm
Brand :
Dehaha
Diesel engine :
140kw
Description

12 Bar Diesel Powered Portable Air Compressor 500cfm Sand Blasting Air Compressor

Specification

  • Model: 138DHY-12
  • Diesel engine driven screw air compressor
  • Type:Rotary Twin Screw, Single Stage
  • Free air delivery: 14m3/min 495cfm
  • Normal working pressure: 12 bar
  • Diesel engine: Yuchai 140kw 180hp
  • Cooling: by air
  • Control type: Micro PLC controller
  • Driven: direct driven
  • Dimension:2890*2020*2270mm
  • Weight:2260kg
  • Noise level: less than 85 db(A)
  • Outlet connection: 2
  • Connection size: G2” and G1 1/2” (can be customized)

Diesel driven air compressor features:
1. High reliability: The compressor has few parts and no wearing parts, so it operates reliably, has a long life, and the interval between overhauls can reach 40,000 to 80,000 hours.
2. Convenient operation and maintenance: high degree of automation, operators do not need to undergo long-term professional training, and can realize unattended operation.
3. Good power balance: no unbalanced inertial force, stable high-speed operation, no foundation operation, small size, light weight, and less floor space.
4. Strong adaptability: It has the characteristics of forced gas transmission, the volume flow is almost not affected by the exhaust pressure, and can maintain high efficiency in a wide range of speed.

Diesel Screw Air Compressor (Low ,Medium Pressure Series)

Model Pressure
(Mpa)

Free Air Delivery

(m3/min)

 Oil Content
(ppm)		 Diesel Power
(kW/HP)		 Weight
(kg)		 Dimensions(mm)
42DHG 0.7 4 ≤6 42(57) 780 2110*1500*1620
50DHY 0.7 6 ≤6 50(68) 1050 2532*1682*1684
58DHY-8 two wheels 0.8 7 ≤6 58(80) 1550 3140*1740*1900
110DHY-8 four wheels 0.8 12 ≤6 110(150) 2480 3120*1630*2290
110DHY-10 two wheels 1.0 12 ≤6 110(150) 2260 2890*2020*2270
110DHY-10 four wheels 1.0 12 ≤6 110(150) 2260 3120*1630*2290
110DHY-14.5 two wheels 1.45 10 ≤6 110(150) 2130 2890*2020*2270
110DHY-14.5 four wheels 1.45 10 ≤6 110(150) 2180 3120*1630*2290
138DHY-14.5 two wheels 1.45 13 ≤6 140(180) 3000 3350*2060*2350
139DHY-13 four wheels(Yuchai) 1.3 15 ≤6 140(180) 3000 3650*1700*2040
141DHY-13 four wheels(Yuchai) 1.3 15.5 ≤6 140(180) 2510 3650*1700*2040
180DHY-8 four wheels 0.8 20 ≤6 179(240) 3800 3720*1970*2250

Project Case
12 Bar Diesel Powered Portable Air Compressor 500cfm Sand Blasting Air Compressor
