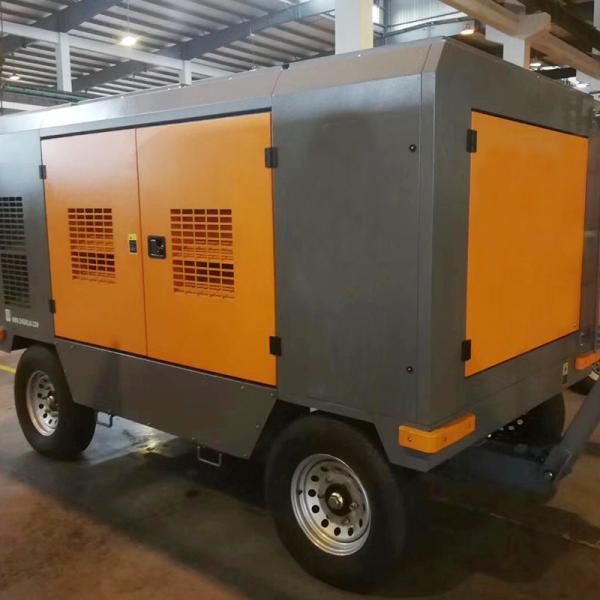

118kw 388cfm Portable Diesel Air Compressor Mining Engine Driven
118kw 388cfm Portable Diesel Air Compressor Mining Engine Driven
118kw 388cfm Portable Diesel Air Compressor Mining Engine Driven
118kw 388cfm Portable Diesel Air Compressor Mining Engine Driven
118kw 388cfm Portable Diesel Air Compressor Mining Engine Driven
118kw 388cfm Portable Diesel Air Compressor Mining Engine Driven
118kw 388cfm Portable Diesel Air Compressor Mining Engine Driven
118kw 388cfm Portable Diesel Air Compressor Mining Engine Driven
118kw 388cfm Portable Diesel Air Compressor Mining Engine Driven
118kw 388cfm Portable Diesel Air Compressor Mining Engine Driven
118kw 388cfm Portable Diesel Air Compressor Mining Engine Driven
118kw 388cfm Portable Diesel Air Compressor Mining Engine Driven
Specifications
Place of Origin :
Jiangsu
Brand Name :
DHH Compressor
Packaging Details :
Wooden box
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1 SET
Delivery Time :
25 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600 set/month
Model Number :
110DHY-14.5
Type :
Screw
Configuration :
Stationary
Power Source :
Diesel
Lubrication Style :
Lubricated
Voltage :
380v/50hz or Customized
Dimension(L*W*H) :
2890*2020*2270mm
Weight :
2130kg
Working Pressure :
10 bar
Core Components :
Air end
Gas Type :
Air
Capacity :
10m3/min
Cooling method :
Air Cooling
Pressure :
14.5bar
Control type :
PLC controller
Working temperature :
-5 to +42℃
Warranty time :
24months
Protection level of motor :
IP54/IP55/IP65
OEM :
Offered
MOQ :
1 PC
Description

118kw 388cfm Portable Diesel Air Compressor Mining Engine Driven

Diesel Air Compressor Specification

Model: 110DHY-14.5

Diesel engine driven screw air compressor

Type:Rotary Twin Screw,single Stage

Free air delivery: 10m3/min

Normal working pressure:14.5 bar

Diesel engine: Yuchai 110kw

Cooling: air cooling

Control type: PLC

Driven: direct driven

Dimension:2890*2020*2270mm

Weight:2130kg

From the demolition of a house to the crushing involved in road maintenance or the construction of new roads, mobile compressors have become indispensable equipment for the construction site, providing power for a variety of on-site construction tools. Fidelity's full range of mobile air compressor equipment can meet a variety of volumetric flow and pressure requirements. All designs are designed with harsh working conditions and uninterrupted use for a long time, and are designed and manufactured with the customer's personal experience as a guide.

Diesel Screw Air Compressor (Low ,Medium Pressure Series)

Model Free Air Delivery
(m3/min)		 Free Air Delivery Oil Content
(ppm)		 Diesel Power
(kW/HP)		 Weight
(kg)

Dimensions

(mm)
42DHG 0.7 4 ≤6 42(57) 780 2110*1500*1620
50DHY 0.7 6 ≤6 50(68) 1050 2532*1682*1684
58DHY-8 two wheels 0.8 7 ≤6 58(80) 1550 3140*1740*1900
110DHY-8 four wheels 0.8 12 ≤6 110(150) 2480 3120*1630*2290
110DHY-10 two wheels 1.0 12 ≤6 110(150) 2260 2890*2020*2270
110DHY-10 four wheels 1.0 12 ≤6 110(150) 2260 3120*1630*2290
110DHY-14.5 two wheels 1.45 10 ≤6 110(150) 2130 2890*2020*2270
110DHY-14.5 four wheels 1.45 10 ≤6 110(150) 2180 3120*1630*2290
138DHY-14.5 two wheels 1.45 13 ≤6 140(180) 3000 3350*2060*2350
139DHY-13 four wheels(Yuchai) 1.3 15 ≤6 140(180) 3000 3650*1700*2040
141DHY-13 four wheels(Yuchai) 1.3 15.5 ≤6 140(180) 2510 3650*1700*2040
180DHY-8 four wheels 0.8 20 ≤6 179(240) 3800 3720*1970*2250

Product Features:
1.Automatic control and protection system.
2.Error free capacity control.
3.Deluxe micro-computer florescence control panel.
4.Suitable for high altitude operations.
5.High quality filtration system with safety filters.

Company Information

DHH Compressor Jiangsu Co.,Ltd

Our Factory has been in air compressors industry for over 20years, now we have fixed speed (belt driven & direct driven) screw air compressors; VSD variable speed frequency screw air compressors, the inverter compressors work very good and save electricity. Permanent magnet frequency screw compressors, this new technology screw compressor super environmental and save energy, quite lower noise, almost mute, best choice if your work shop have high request of environment. Besides we also have two stage double screw compressor, it is very popular in China market.

Welcome to choose us as your partner and best supplier!

118kw 388cfm Portable Diesel Air Compressor Mining Engine Driven

Project Case

118kw 388cfm Portable Diesel Air Compressor Mining Engine Driven

Our Services

1.24/7 after sales service support in different languages.
2.Follow up the feedback of products in 2 months interval by email or call.
3.Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center.
4.Technical training for customers in DEHAHA air compressor factory or working site.
5.Plenty of original spare parts with proven quality are all available from our central stocks in Shanghai and all distributors’depots.
6.All kinds of technical documents in different languages.
