Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA
Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA
Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA
Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA
Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA
Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA
Specifications
Place of Origin :
CN
Brand Name :
TYANSHINE
Certification :
RoHS REACH IEC62471
Model Number :
TX-3535
MOQ :
1000pcs
Price :
Negotiation
Packaging Details :
In Reel
Delivery Time :
5-10 days
Payment Terms :
ExW, FOB, CIF
Supply Ability :
100000PCS/month
Color :
R/G/B/C/A/L/M/W
Power :
10W
Current :
2500mA
PackageSize :
SMD3535
Substrate :
Ceramic
Description

Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA

Features:

  1. Small size
  2. Lower thermal resistance, higher light efficiency
  3. Ceramic base with good heat conductivity to enlarge the lifespan
  4. Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
  5. SMD Components suitable for reflow-solidering,
  6. Low expansion coefficient, high air tightness

Specifications:

Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA

Color Vf (V) Max. If (mA) λd(nm)
CCT(K)		 φv(lm) CRI
Red 1.9-2.6V 2500mA 620-625nm 185-250lm
Green 2.7-3.5V 2500mA 522-532nm 280-360lm
Royal Blue 2.8-3.6V 2500mA 450-460nm 46-65lm
Light Blue 2.8-3.6V 2500mA 465-475nm 90-130lm
Cyan 2.8-3.6V 2500mA 485-510nm 140-190lm
Mint 2.8-3.1V 2500mA 4100-4500K 340-440lm
Lime 2.8-3.5V 2500mA

4030-4280K

(565-568nm)

 360-460lm
PC-Amber 2.8-3.5V 2500mA

1750-1900K

(587-590nm)

 190-240lm
Cool White 2.7-3.4V 2500mA 6000-8000K 270-340lm 80
White 2.7-3.4V 2500mA 4500-5300K 210-270lm 80
Neutral White 2.7-3.4V 2500mA 3700-4350K 200-260lm 80
Warm White 2.7-3.4V 2500mA 2860-3130K 170-230nm 80

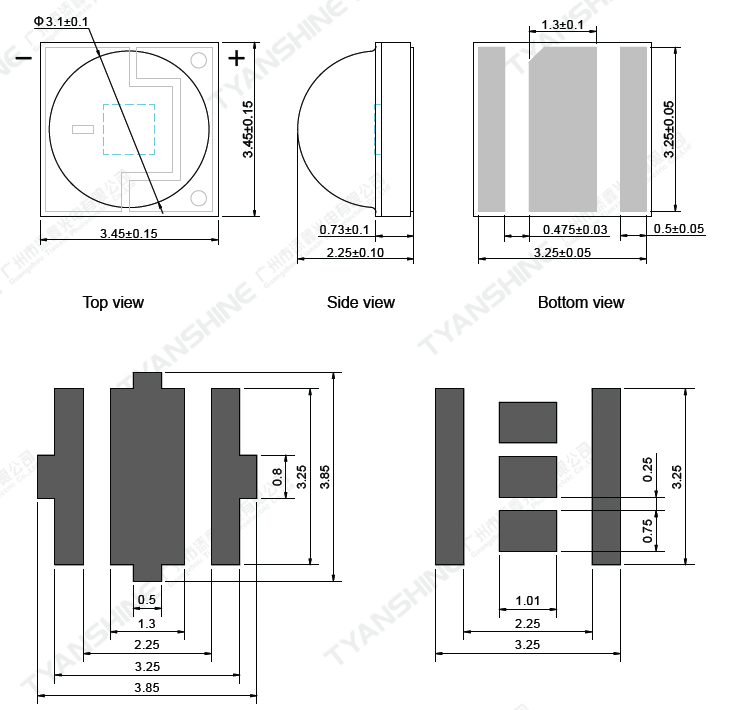

Package Dimensions:

Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA

Applications:

LED Flashlight

Automobile Illumination
Architectural lighting

Landscape lighting

LED Street Light, LED High Bay Lights, LED Tunnel Lights

Secruity application CCTV products

Ceramic SMD3535 LED 10Watt Red Green Blue White PC-Amber Lime Cyan XPG LED 2500mA
