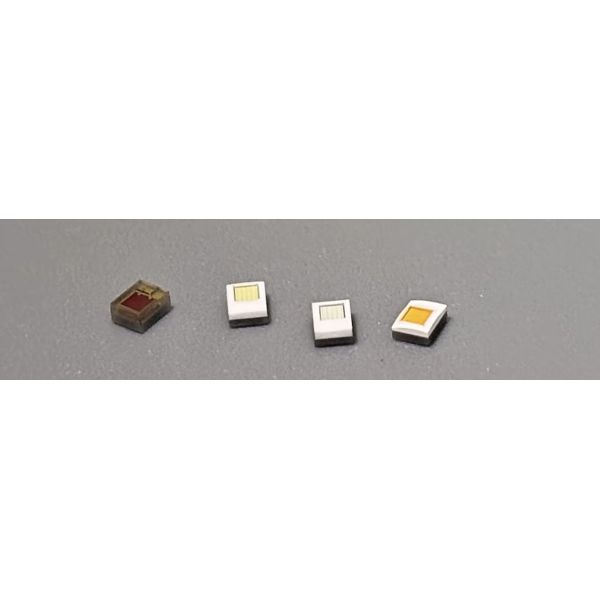

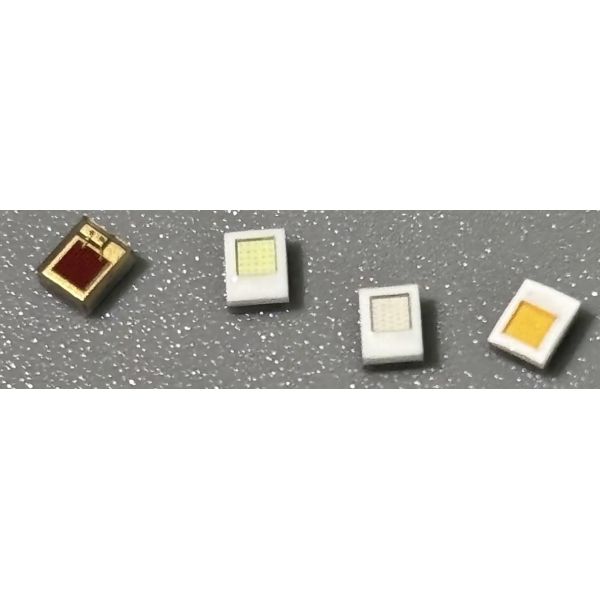

Ceramic SMD2016 LEDs 5Watt 2500K 6000k White PC-Amber Lime SMD Power LED 1800mA
Ceramic SMD2016 LEDs 5Watt 2500K 6000k White PC-Amber Lime SMD Power LED 1800mA
Ceramic SMD2016 LEDs 5Watt 2500K 6000k White PC-Amber Lime SMD Power LED 1800mA
Ceramic SMD2016 LEDs 5Watt 2500K 6000k White PC-Amber Lime SMD Power LED 1800mA
Ceramic SMD2016 LEDs 5Watt 2500K 6000k White PC-Amber Lime SMD Power LED 1800mA
Ceramic SMD2016 LEDs 5Watt 2500K 6000k White PC-Amber Lime SMD Power LED 1800mA
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-2016W5
Certification :
RoHS REACH IEC62471
Place of Origin :
CN
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
ExW, FOB, CIF
Supply Ability :
100000PCS/month
Delivery Time :
5-10 days
Packaging Details :
In Reel
Color :
Lime/PC-Amber, White
Power :
5W
If :
1800mA
Package size :
SMD2016
Substrate :
Ceramic
Description

Ceramic SMD2016 LEDs 5Watt 2500K 6000k White PC-Amber Lime SMD Power LED 1800mA

Ceramic SMD2016 LEDs 5Watt 2500K 6000k White PC-Amber Lime SMD Power LED 1800mA

Features:

  1. Small size,SMD Package with ceramic substrate
  2. Lower thermal resistance, higher light efficiency
  3. Ceramic base with good heat conductivity to enlarge the lifespan
  4. Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
  5. SMD Components suitable for reflow-solidering,
  6. Multi color options, Red Green Blue White Yellow Ultraviolet(UV) Infrared(IR)

Specifications:

Color Vf (V) Max. If (mA) λd(nm)
CCT(K)

φv(lm)

IF=1000mA

 CRI
PC-Amber 2.9-3.2V 1800mA

1750-1900K

(587-590nm)

 280-340lm /
Lime 3.0-3.3V 1800mA

4030-4280k

(565-568nm)

 480-550lm /

White

 2.9-3.4V 1800mA

5700-6500K

400-460lm

 70
White 2.7-3.4V 1800mA 2400-2500K 190-240lm 96

Ceramic SMD2016 LEDs 5Watt 2500K 6000k White PC-Amber Lime SMD Power LED 1800mA

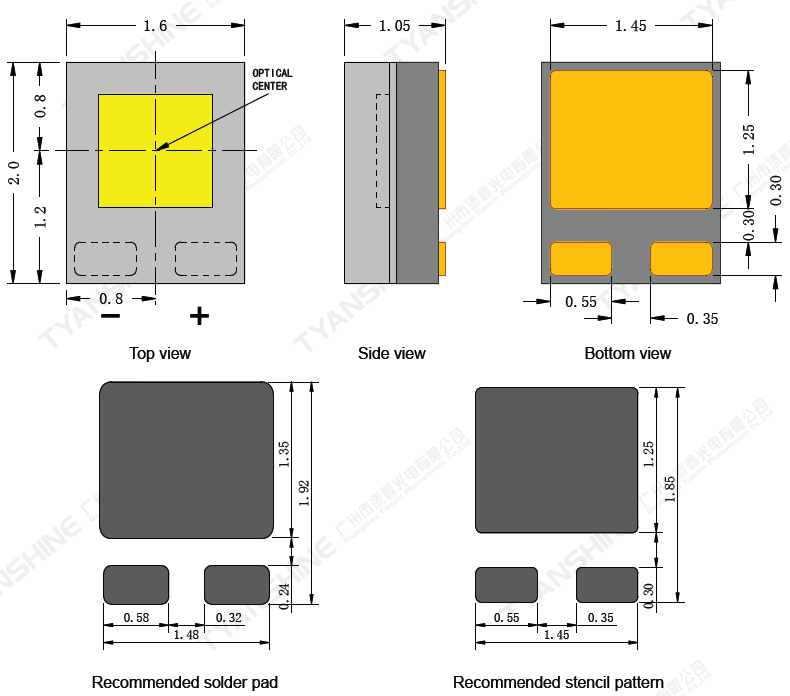

Package Dimensions:

Ceramic SMD2016 LEDs 5Watt 2500K 6000k White PC-Amber Lime SMD Power LED 1800mA

Applications:

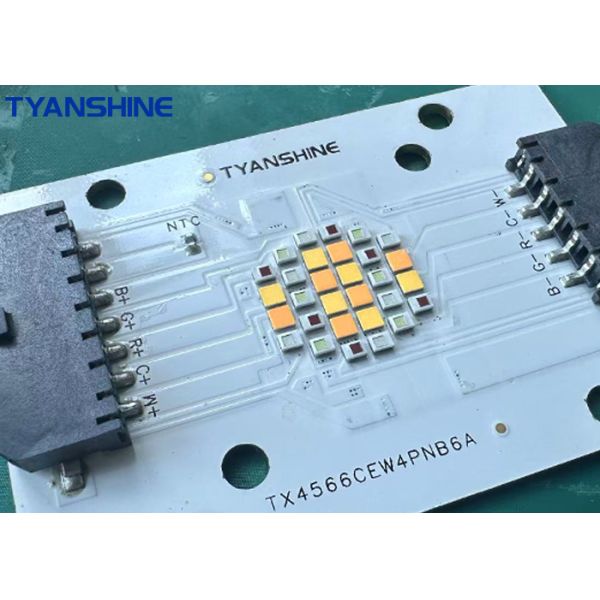

LED Module for Studio / Stage Lighting

Ceramic SMD2016 LEDs 5Watt 2500K 6000k White PC-Amber Lime SMD Power LED 1800mA

Portable LED Flashlight

Automobile illumination
Architectural lighting

Landscape lighting

LED Street Light, LED High Bay Lights, LED Tunnel Lights
