Specifications
Place of Origin :
CN
Brand Name :
TYANSHINE
Certification :
RoHS REACH
Model Number :
TX-5050W
MOQ :
1000pcs
Price :
Negotiation
Packaging Details :
In Reel
Delivery Time :
5-10 days
Payment Terms :
ExW, FOB, CIF
Supply Ability :
100000PCS/month
Power :
10W/12W/15W/20W/30W/45W
Size :
SMD3535/4045/5050/6065/6070
CCT :
5000-6500K
Voltage :
3V
LES :
∅1.35/1.72/2.35mm
Description

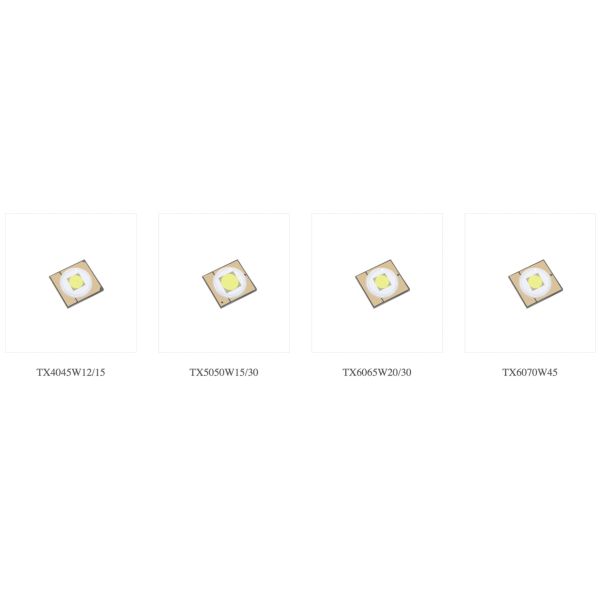

Ceramic 3V Circulr LED Chip SMD3535 10W SMD4045 15W SMD5050 30W SMD6070 45W LED

3V Circulr LED Chip SMD3535 10W SMD4045 15W SMD5050 30W SMD6070 45W LED

Features:

  1. Ceramic SMD package, single LED die Circular chip
  2. Lower thermal resistance, higher light efficiency
  3. Ceramic base with good heat conductivity to enlarge the lifespan
  4. Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
  5. Different type of package, various wattage class,
  6. Low expansion coefficient, high air tightness

Specifications:

Package Power Vf (V) If (A) CCT(K) φv(lm) LES(mm)
SMD4045 12W 2.8-3.2 4.5A 5500-6500K 550-750lm

(IF=4A)

 Φ1.35
SMD4045 15W 3.6-4.6 5A 5300-6500K

950-1050lm

(IF=4.5A)
SMD5050 15W 2.7-3.1V 5A 5300-6500K

1000-1150lm

(IF=4.5A)
SMD5050 30W 2.7-3.5V 9A 5700-7000K 1500-1650lm

(IF=7A)

 Φ1.72
SMD6065 20W 2.8-3.5V 7A 5700-7000K

360-390lm

(IF=1A)
SMD6065 30W 3.0-3.8V 9A 5600-6500K

1800-2000lm

(IF=7A)
SMD6070 45W 3.9-4.6V 10A 5000-5700K

2250-2650lm

(IF=9A)

 Φ2.35
5600-6500K

2500-2900lm

(IF=9A)

Applications:

LED Flashlight

Automobile Illumination
Architectural lighting

Landscape lighting

LED Street Light, LED High Bay Lights, LED Tunnel Lights

Secruity application CCTV products
