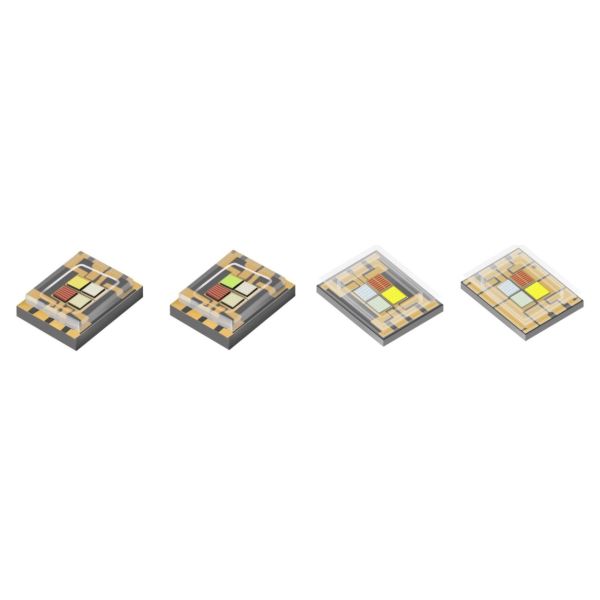

Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs
Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs
Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs
Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs
Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs
Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs
Specifications
Place of Origin :
CN
Brand Name :
TYANSHINE
Certification :
RoHS, REACH
Model Number :
TX-5060
MOQ :
1000pcs
Price :
Negotiation
Packaging Details :
In Reel
Delivery Time :
5-10 days
Payment Terms :
ExW, FOB, CIF
Supply Ability :
100000PCS/month
Power :
15W 20W 40W 50W 60W
Colour :
RGBW/ RGBL / RGBA
Size :
SMD5060
Substrate :
Ceramic
Description

Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs

Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs

Features:

  1. SMD5060 Ceramic LED Package, similar to Ostar Stage;
  2. Lower thermal resistance, higher light efficiency
  3. Ceramic base with good heat conductivity to enlarge the lifespan
  4. Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
  5. Various optios of color mixtures, different power output
  6. Low expansion coefficient, high air tightness

Specifications:

SMD5060 LED 15W RGBW, RGBWW

Item Code Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=750mA

 CRI

RGBW

RGBWW

 R 1000 2.0-2.8 620-630 75-105 /
G 1500 2.8-3.6 520-530 160-210 /
B 1500 2.8-3.6 450-460 25-40 /
W 1500 2.8-3.6 6500K±500K 200-255 70
WW 3000K±150K 150-180

SMD5060 LED 20W RGBW, RGBWW, RGBL, RGBA

Item Code Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=1000mA

 CRI

RGBW

RGBWW

 R 2000 2.0-2.8 620-630 75-105 /
G 1800 2.8-3.6 520-530 160-210 /
Royal Blue 1800 2.8-3.6 450-460 25-40 /
Light Blue 465-475 55-70
W 1800 2.8-3.6 6500K±500K 260-300 80
NW 4000K±300K 260-300
WW 3000K±150K 215-250
WW 2700K±80K 215-250

Item Code Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=1000mA

 CRI

RGBA

RGBL

 R 2000 2.0-2.8 620-630 75-105 /
G 1800 2.8-3.6 520-530 160-210 /
Royal Blue 1800 2.8-3.6 450-460 25-40 /
Light Blue 465-475 55-70
A 1800 2.8-3.6 1770-1850K 150-180 /
L 4250-4500K 300-350 /

SMD5060 LED 40W RGBW, RGBWW, RGBL, RGBA

Item Code Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=1000mA

 CRI

RGBW

RGBWW

RGBA

RGBL

 R 2500 2.0-2.8 620-625 100-140 /
G 3000 2.9-3.8 520-530 250-350 /
Royal Blue 3000 2.9-3.8 450-460 40-50 /
W 2500 2.8-3.6 6000-7500K 260-300 70
WW 2500 3000K±150K 260-300 80
A 2500 1770-1850K 170-200 /
L 2000 4020-42880K 210-390

SMD5060 LED 50W RGBW, RGBL

Item Code Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=1000mA

 CRI

RGBW

RGBL

 R 3500 2.0-2.6 622-627 105-145 /
G 4500 2.9-3.5 526-532 250-350 /
Royal Blue 4500 2.9-3.5 447-453 35-45 /
W 4000 2.9-3.5 6000-7000K 370-430 70
L 4500 4020-42880K 350-450 /

SMD5060 LED 60W RGBW, RGBL

Item Code Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=1000mA

 CRI

RGBW

RGBL

 R 3500 2.0-2.6 622-627 120-150 /
G 4500 2.9-3.5 526-532 295-345 /
Royal Blue 4500 2.9-3.5 447-453 45-58 /
W 4000 2.8-3.5 6000-7000K 370-430 70
L 4500 4020-42880K 350-450 /

Applications:

Stage Lighting - Moving head wash, beam

Autotive Illumination
Architectural lighting

Landscape lighting

Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs

Ceramic SMD5060 LED RGBW 15W 20W 40W 50W 60W RGBL Multichip LEDs
