Ceramic SMD6065 LED RGBW 60Watt RGBL 4IN1 LED TunableWhite CRI80 LEDs
Ceramic SMD6065 LED RGBW 60Watt RGBL 4IN1 LED TunableWhite CRI80 LEDs
Ceramic SMD6065 LED RGBW 60Watt RGBL 4IN1 LED TunableWhite CRI80 LEDs
Ceramic SMD6065 LED RGBW 60Watt RGBL 4IN1 LED TunableWhite CRI80 LEDs
Ceramic SMD6065 LED RGBW 60Watt RGBL 4IN1 LED TunableWhite CRI80 LEDs
Ceramic SMD6065 LED RGBW 60Watt RGBL 4IN1 LED TunableWhite CRI80 LEDs
Ceramic SMD6065 LED RGBW 60Watt RGBL 4IN1 LED TunableWhite CRI80 LEDs
Ceramic SMD6065 LED RGBW 60Watt RGBL 4IN1 LED TunableWhite CRI80 LEDs
Specifications
Place of Origin :
CN
Brand Name :
TYANSHINE
Certification :
ISO9001:2008 SGS RoHS
Model Number :
TX-6065
MOQ :
1000pcs
Price :
Negotiation
Packaging Details :
In Reel
Delivery Time :
5-10 days
Payment Terms :
ExW, FOB, CIF
Supply Ability :
100000PCS/month
Power :
60W
Voltage :
3V
Current :
5000mA
Size :
SMD6065
Substrate :
Ceramic
Colour :
RGBW/RGBL/RGBA/TunableWhite
Description

Ceramic SMD6065 LED RGBW 60Watt RGBL 4IN1 LED TunableWhite CRI80 LEDs

Ceramic SMD6065 LED RGBW 60Watt RGBL 4IN1 LED TunableWhite CRI80 LEDs

Features:

  1. Small size, powerful LEDs
  2. Lower thermal resistance, higher light efficiency
  3. Ceramic base with good heat conductivity to enlarge the lifespan
  4. Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
  5. SMD Components suitable for reflow-solidering,
  6. Low expansion coefficient, high air tightness

Specifications:

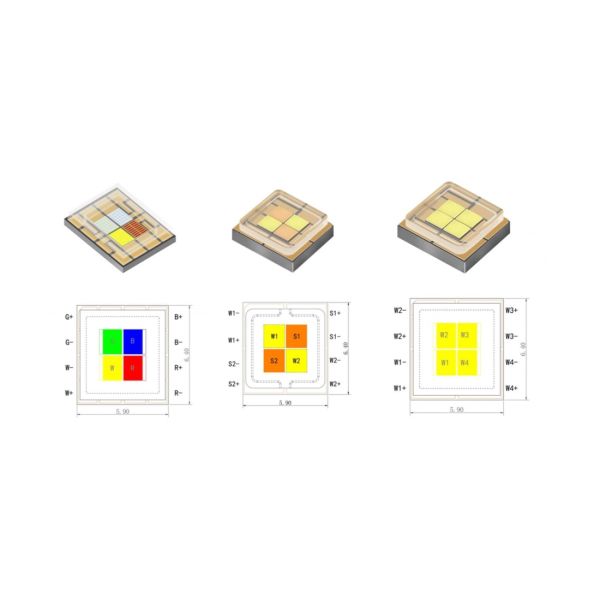

SMD6065 LED RGBW / RGBL

Item Code Color Max. IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=1000mA

 LES
(mm)
RGBW 6500K R 5000 2.4-3.2 622-627 120-145 /
G 5000 2.8-3.8 522-532 35-55 /
B 5000 2.8-3.8 449-455 40-50 /
W 5000 2.8-3.8 6500K±500K 380-480 70

Item Code Color Max. IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=1000mA

 LES
(mm)
RGBL R 5000 2.4-3.2 622-627 120-145 /
G 5000 2.8-3.8 522-532 35-55 /
B 5000 2.8-3.8 449-455 40-50 /
L 5000 2.8-3.8 4250-4500K 380-480 /

SMD6065 LED TunableWhite

Item Code Color Max. IF
(mA)		 VF
(V)

CCT (°K)

Lumen(lm)

If=1000mA

 LES
(mm)
TunableWhite W1 4500 2.9-3.5 5800-6900K 350-400 80
W2 4500 2.9-3.5 5800-6900K 350-400 80
S1 4500 2.9-3.5 2590-2840K 300-350 80
S2 4500 2.9-3.5 2590-2840K 300-350 80

SMD6065 LED White

Item Code Color Max. IF
(mA)		 VF
(V)		 CCT (°K)

Lumen(lm)

If=1000mA

 LES
(mm)
Cool White W1 5000 2.9-3.5 5600-6900K 390-490 80
W2 5000 2.9-3.5 5600-6900K 390-490 80
W3 5000 2.9-3.5 5600-6900K 390-490 80
W4 5000 2.9-3.5 5600-6900K 390-490 80

Applications:

Stage Lighting

LED Flashlight

Automobile Illumination
Architectural lighting

Landscape lighting

Ceramic SMD6065 LED RGBW 60Watt RGBL 4IN1 LED TunableWhite CRI80 LEDs
