Ceramic SMD3535 LEDs CRI 90 White 2200K 3000K 4000K 5000K 6500K XP-G LED CRI80
Ceramic SMD3535 LEDs CRI 90 White 2200K 3000K 4000K 5000K 6500K XP-G LED CRI80
Ceramic SMD3535 LEDs CRI 90 White 2200K 3000K 4000K 5000K 6500K XP-G LED CRI80
Ceramic SMD3535 LEDs CRI 90 White 2200K 3000K 4000K 5000K 6500K XP-G LED CRI80
Specifications
Place of Origin :
CN
Brand Name :
TYANSHINE
Certification :
RoHS REACH IEC62471
Model Number :
TX-3535W5FSA1-0G4DB-01
MOQ :
1000pcs
Price :
Negotiation
Packaging Details :
In Reel
Delivery Time :
5-10 days
Payment Terms :
ExW, FOB, CIF
Supply Ability :
100000PCS/month
Color :
White
CCT :
2200K 2700K 3000K 4000K 5000K 6500K
CRI :
80Ra / 90Ra
Package Size :
SMD3535
Substrate :
Ceramic
Description

Ceramic SMD3535 LEDs CRI 90 White 3000K 4000K 5000K 6500K XP-G LED CRI80

Features:

  1. Small size
  2. Lower thermal resistance, higher light efficiency
  3. Ceramic base with good heat conductivity to enlarge the lifespan
  4. Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
  5. SMD Components suitable for reflow-solidering,
  6. Low expansion coefficient, high air tightness

Specifications:

Code Color Vf (V) Max. If (mA) CCT(K)

φv(lm)

IF=700mA

 CRI
TX-3535W5FSA1-0G4DB-01 White 2.7-3.2V 1800mA

5300-6400K

 280-400lm 70
TX-3535W5FSA1-0G4DB-01H80 White 2.7-3.2V 1800mA 4000K±300K 255-330lm 80
TX-3535W5FSA1-0G4DB-01H80 White 2.7-3.2V 1800mA 3500K±150K 230-300lm 80
TX-3535W5FSA1-0G4DB-01H80 White 2.7-3.2V 1800mA 3000K±150K 200-260lm 80
TX-3535W5FSA1-0G4DB-01H90 White 2.7-3.2V 1800mA 5500-6800K 230-270lm 90
TX-3535W5FSA1-0G4DB-01H90 White 2.7-3.2V 1800mA 4000K±300K 210-250lm 90
TX-3535W5FSA1-0G4DB-01H90 WarmWhite 2.7-3.2V 1800mA 3000K±150K 195-230lm 90

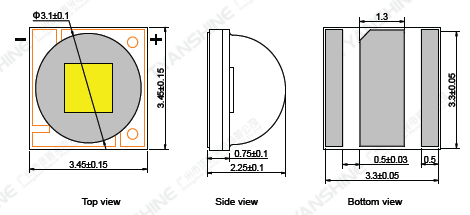

Package Dimensions:

Ceramic SMD3535 LEDs CRI 90 White 2200K 3000K 4000K 5000K 6500K XP-G LED CRI80

Applications:

LED Flashlight

Automobile Illumination
Architectural lighting

Landscape lighting

LED Street Light, LED High Bay Lights, LED Tunnel Lights

Secruity application CCTV products

Ceramic SMD3535 LEDs CRI 90 White 2200K 3000K 4000K 5000K 6500K XP-G LED CRI80
