Ceramic SMD3535 LEDs RGB 1W 3W 4W 9W 3-in-1 SMD LED Components
Ceramic SMD3535 LEDs RGB 1W 3W 4W 9W 3-in-1 SMD LED Components
Ceramic SMD3535 LEDs RGB 1W 3W 4W 9W 3-in-1 SMD LED Components
Ceramic SMD3535 LEDs RGB 1W 3W 4W 9W 3-in-1 SMD LED Components
Ceramic SMD3535 LEDs RGB 1W 3W 4W 9W 3-in-1 SMD LED Components
Ceramic SMD3535 LEDs RGB 1W 3W 4W 9W 3-in-1 SMD LED Components
Ceramic SMD3535 LEDs RGB 1W 3W 4W 9W 3-in-1 SMD LED Components
Ceramic SMD3535 LEDs RGB 1W 3W 4W 9W 3-in-1 SMD LED Components
Specifications
Place of Origin :
CN
Brand Name :
TYANSHINE
Certification :
RoHS REACH IEC62471
Model Number :
TX-3535RGB
MOQ :
1000pcs
Price :
Negotiation
Packaging Details :
In Reel
Delivery Time :
5-10 days
Payment Terms :
ExW, FOB, CIF
Supply Ability :
100000PCS/month
Colour :
RGB
Lens :
Dome / Flat
Power :
1W 2W 3W 4W
Package size :
SMD3535
Substrate :
Ceramic
Description

Ceramic SMD3535 LEDs RGB 1W 3W 4W 3-in-1 SMD LED Components

Features:

  1. Small size
  2. Lower thermal resistance, higher light efficiency
  3. Ceramic base with good heat conductivity to enlarge the lifespan
  4. Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
  5. SMD Components suitable for reflow-solidering,
  6. Low expansion coefficient, high air tightness

Specifications:

Code Color Power If (mA) Dominant Wavelength φv(lm) Lens Type
TX-3535RGB1FC120-OGHCND34-01 RGB 1W 160mA

R 615-625nm

G 517-530nm

B 458-470nm

R 22-35lm

G 25-45lm

B 10-15lm

 Dome
TX-3535RGB3FC120-OGVCND34-03 RGB 3W 350mA

R 615-625nm

G 517-530nm

B 458-470nm

R 50-70lm

G 60-85lm

B 20-30lm

 Dome
TX-3535RGB4VCC1-0G4DB-01 RGB 4W 500mA

R 618-628nm

G 522-532nm

B 449-457nm

R 60-75lm

G 90-115lm

B 13-18lm

 Dome
TX-3535RGB4VCC1-0G4DB-01 RGB 4W 500mA

R 618-628nm

G 522-532nm

B 465-475nm

R 60-75lm

G 90-115lm

B 28-38lm

 Dome
TX-3535RGB9VCC1-NG4DB-01 RGB 9W

R 1000mA

G/B 1200mA

R 616-626nm

G 521-531nm

B 465-470nm

R 125-145lm

G 190-220lm

B 50-60lm

 Dome
TX-3535RGB2FC180-OGVCND34-01 RGB 2W 200mA

R 616-626nm

G 523-535nm

B 456-468nm

R 16-28lm

G 25-40lm

B 5-10lm

 Flat
TX-3535RGB4FC180-OGVCND34-02L RGB 4W 400mA

R 618-628nm

G 522-535nm

B 456-465nm

R 25-55lm

G 55-85lm

B 12-25lm

 Flat

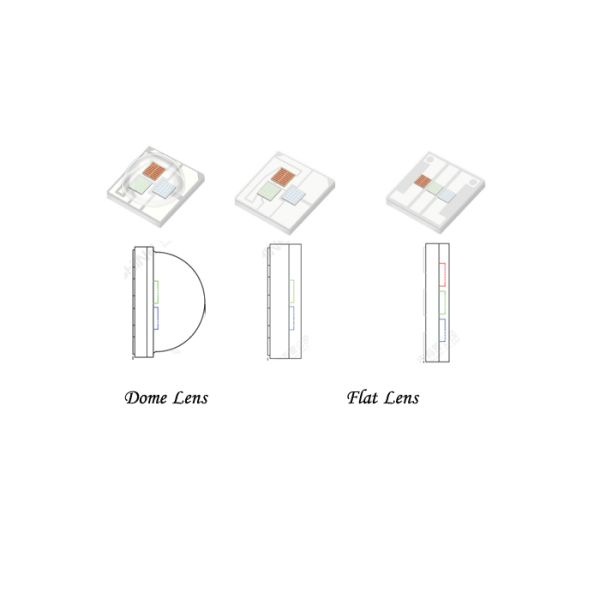

Package Type:

Ceramic SMD3535 LEDs RGB 1W 3W 4W 9W 3-in-1 SMD LED Components

Applications:

LED Flashlight

Automobile Illumination
Architectural lighting

Landscape lighting

LED Street Light, LED High Bay Lights, LED Tunnel Lights
