Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA
Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA
Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA
Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA
Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA
Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA
Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA
Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-2020
Certification :
ISO9001:2008 SGS RoHS
Place of Origin :
CN
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
ExW, FOB, CIF
Supply Ability :
100000PCS/month
Delivery Time :
5-10 days
Packaging Details :
In Reel
Color :
R/G/B/L/A/C/W
Power :
3W
If :
1000mA
Package :
SMD2020
Substrate :
Ceramic
Description

Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA

Features:

  1. Small size,SMD Package with ceramic substrate
  2. Lower thermal resistance, higher light efficiency
  3. Ceramic base with good heat conductivity to enlarge the lifespan
  4. Packages with Silicon,anti-UV, adaptable for a variety of harsh environments
  5. SMD Components suitable for reflow-solidering,
  6. Multi color options, Red Green Blue White Yellow Ultraviolet(UV) Infrared(IR)

Specifications:

Code Color Vf (V) Max. If (mA) λd(nm)
CCT(K)		 φv(lm) CRI
TX-2020R3VSA1-NG4DA-01 Red 2.1-2.5V 1000mA 620-625nm 60-80lm /
TX-2020G3VSA1-NG4DA-01 Green 2.6-3.4V 1000mA 525-532nm 125-155lm /
TX-2020B3VSA1-NG4DA-01 Blue 2.8-3.4V 1000mA

450-460nm

465-475nm

14-24lm

30-40lm

 /
TX-2020W3VSA1-NG4DA-01 White 2.8-3.3V 1000mA 5700-7000K 135-165lm 70
TX-2020W3FSA1-NG4DA-01H80

Warm

White

 2.8-3.3V 1000mA 2950-3040K 120-150lm 80
TX-2020Y3VCA1-NG4DA-01 Yellow 2.0-2.6V 1000mA 589-596nm 45-55lm /
TX-2020A3FSA1-NG4DA-01 PC-Amber 2.8-3.3V 1000mA

1750-1900K

(586-590nm)

 110-125lm /
TX-2020L3FSA1-NG4DA-01

Lime

 2.8-3.3V 1000mA

4030-4280K

(565-568nm)

 145-190lm /

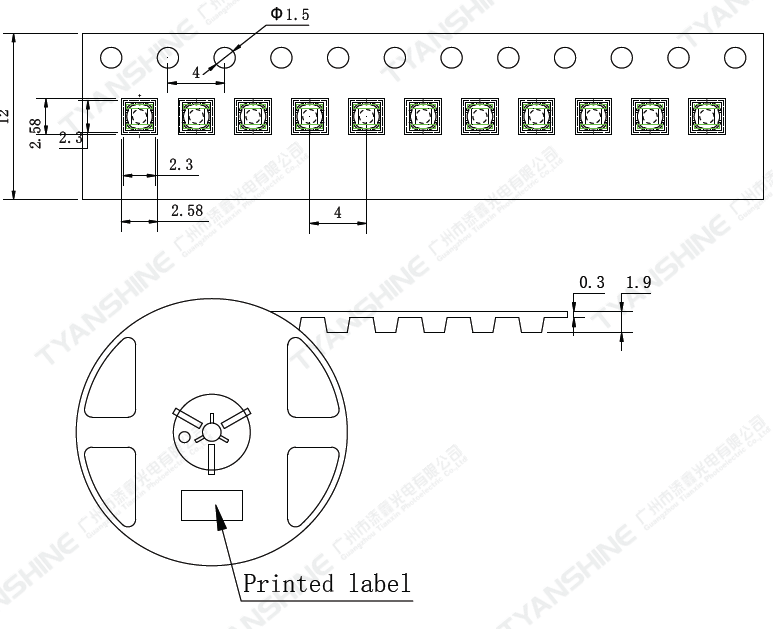

Package Dimensions:

Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA

Packing: 1000pcs per Reel

Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA

Applications:

LED Module for Studio/Stage Ligting

Ceramic SMD2020 LEDs 3Watt Red Green Blue White PC-Amber Lime Yellow 1000mA

Portable LED Flashlight

Automobile illumination
Architectural lighting

Landscape lighting

LED Street Light, LED High Bay Lights, LED Tunnel Lights
