Specifications
Brand Name :
TYANSHINE
Model Number :
TX-3535RGBW10
Certification :
RoHS
Place of Origin :
CN
MOQ :
1000pcs
Packaging Details :
In tape reel
Power :
10W
Voltage :
3V
Current :
1200mA
Package size :
SMD3535
Color :
RGBW / RGBA / RGBL
Substrate :
Ceramic
Lens Type :
Dome / Flat
Description

Ceramic SMD3535 LEDs RGBW 10Watt RGBL LED 4in1 SMD LED Components

Key Features:

1, Small package for RGBW LEDs,

2, Ceramic base, higher heat conductivity

3, One LED to replace 4 LEDs, save cost

Advantages ( C3535 RGBW Package LEDs):

1, Eutectic-bonding packaging technique with flip-chips on a ceramic base,

stronger cohesion, less coefficient of expansion, more stable,

tighter air-proof to enable tough outdoor application circumstances;

2, 30-50 times higher cohesion than other products by the Eutectic-bonding, higher conductivity upto 160W/mK;

3, Anti-UV silicon domed lens, anti-aging and better light direction;

4,Long lifespan over 50,000 hrs,Smaller package size for luminaries manufactures.

Specification:

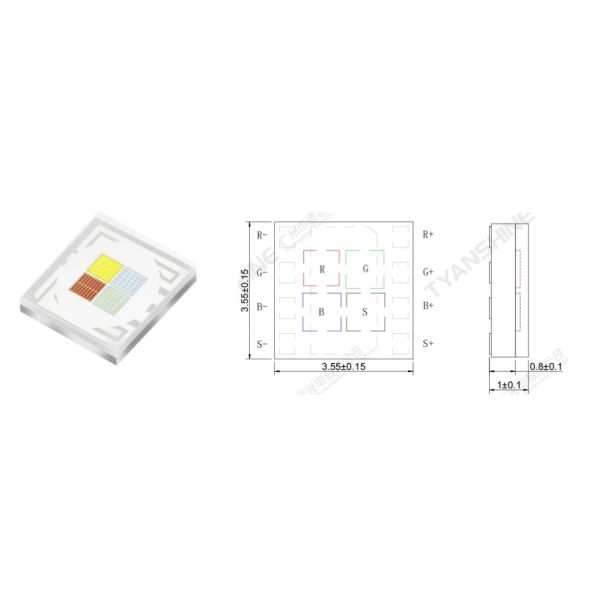

(10W Ceramic SMD3535 RGBW LEDs, Flat Lens

Ceramic SMD3535 LEDs RGBW 10Watt RGBL LED 4in1 SMD LED Components

Item Code Color Max. IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

 Beam Angle
(°)		 Lumen
(lm)		 CRI

RGBW

(10W)

 R 1200 2.0-2.7 620-625nm 120 80-110 /
G 1200 2.9-3.6 522-532nm 140-195 /
B 1200 3.0-3.4

450-460nm

 30-45 /
W 1200 3.0-3.4 6000-7000K 175-210 80

Item Code Color Max. IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

 Beam Angle
(°)		 Lumen
(lm)		 CRI

RGBW

(10W)

 R 1200 2.0-2.7 620-625nm 120 80-110 /
G 1200 2.9-3.6 522-532nm 140-195 /
B 1200 3.0-3.4 450-460nm 30-45 /
W 1200 3.0-3.4 3780-4300K 165-200 80

Item Code Color Max. IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

 Beam Angle
(°)		 Lumen
(lm)		 CRI

RGBW

(10W)

 R 1200 2.0-2.7 620-625nm 120 80-110 /
G 1200 2.9-3.6 522-532nm 140-195 /
B 1200 3.0-3.4 450-460nm 30-45 /
W 1200 3.0-3.4 2870-3130K 155-200 80

Item Code Color Max. IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

 Beam Angle
(°)		 Lumen
(lm)		 CRI

RGBA

(10W)

 R 1200 2.0-2.7 620-625nm 120 80-110 /
G 1200 2.9-3.6 522-532nm 140-195 /
B 1200 3.0-3.4 450-460nm 30-45 /
A 1200 3.0-3.4 1750-1900K 135-170 /

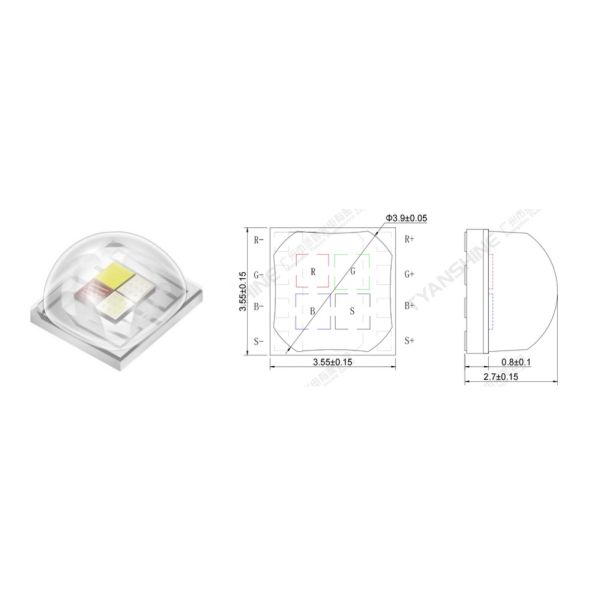

(10W Ceramic SMD3535 RGBW LEDs, Dome Lens

Ceramic SMD3535 LEDs RGBW 10Watt RGBL LED 4in1 SMD LED Components

Item Code Color Max. IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

 Beam Angle
(°)		 Lumen
(lm)		 CRI

RGBW

(10W)

 R 1200 2.1-2.6 620-625nm 120 115-160 /
G 1200 2.8-3.4 522-532nm 210-255 /
B 1200 2.9-3.5

450-460nm

30-35

 /
465-475nm 50-75
W 1200 2.9-3.5 6000-7000K 240-300 /

Item Code Color Max. IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

 Beam Angle
(°)		 Lumen
(lm)		 CRI

RGBW

(10W)

 R 1200 2.1-2.6 620-625nm 120 115-160 /
G 1200 2.8-3.4 522-532nm 210-255 /
B 1200 2.9-3.5

450-460nm

30-35

 /
465-475nm 50-75
W 1200 2.9-3.5 4800-5500K 220-255 80

Item Code Color Max. IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

 Beam Angle
(°)		 Lumen
(lm)		 CRI

RGBW

(10W)

 R 1200 2.1-2.6 620-625nm 120 115-160 /
G 1200 2.8-3.4 522-532nm 210-255 /
B 1200 2.9-3.5 450-460nm 30-35 /
465-475nm 50-75
W 1200 2.9-3.5 4000K±300k 210-245 80

Item Code Color Max. IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

 Beam Angle
(°)		 Lumen
(lm)		 CRI

RGBW

(10W)

 R 1200 2.1-2.6 620-625nm 120 115-160 /
G 1200 2.8-3.4 522-532nm 210-255 /
B 1200 2.9-3.5 450-460nm 30-35 /
465-475nm 50-75
W 1200 2.9-3.5 3000K±150k 185-245 80

Item Code Color Max. IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

 Beam Angle
(°)		 Lumen
(lm)		 CRI

RGBL

(10W)

 R 1200 2.1-2.6 620-625nm 120 115-160 /
G 1200 2.8-3.4 522-532nm 210-255 /
B 1200 2.9-3.5 450-460nm 30-35 /
465-475nm 50-75
L 1200 2.9-3.5

4030-4280K

(565-5568nm)

 195-245 /

Appplications:

1, Outdoor Landscape illumination & Architectural lighting:

Luminaries such as Liner light, wall-washer, flood light, under-ground and under water light, etc.

Ceramic SMD3535 LEDs RGBW 10Watt RGBL LED 4in1 SMD LED Components

2, Entertainment lighting/Stage lighting

Matrix panel lights, Moving Heads panels, Par cans lights...

Additional Services offered:

PCB design & making, LEDs soldering.
