Ceramic SMD3535 LED RGBW 2Watt 200mA 4in1 RGBWW LM-80 SMD LEDs
Ceramic SMD3535 LED RGBW 2Watt 200mA 4in1 RGBWW LM-80 SMD LEDs
Ceramic SMD3535 LED RGBW 2Watt 200mA 4in1 RGBWW LM-80 SMD LEDs
Ceramic SMD3535 LED RGBW 2Watt 200mA 4in1 RGBWW LM-80 SMD LEDs
Ceramic SMD3535 LED RGBW 2Watt 200mA 4in1 RGBWW LM-80 SMD LEDs
Ceramic SMD3535 LED RGBW 2Watt 200mA 4in1 RGBWW LM-80 SMD LEDs
Ceramic SMD3535 LED RGBW 2Watt 200mA 4in1 RGBWW LM-80 SMD LEDs
Ceramic SMD3535 LED RGBW 2Watt 200mA 4in1 RGBWW LM-80 SMD LEDs
Ceramic SMD3535 LED RGBW 2Watt 200mA 4in1 RGBWW LM-80 SMD LEDs
Ceramic SMD3535 LED RGBW 2Watt 200mA 4in1 RGBWW LM-80 SMD LEDs
Specifications
Brand Name :
TYANSHINE
Model Number :
TX-3535RGBW2
Certification :
RoHS Reach LM-80 IEC62471
Place of Origin :
CN
MOQ :
1000pcs
Packaging Details :
In tape reel
Power :
2Watt
Voltage :
3V
Current :
200mA (Max.)
Size :
SMD3535
Substrate :
Ceramic
Color :
RGBW / RGBWW
Description

Ceramic SMD3535 LED RGBW 2Watt 200mA 4in1 RGBWW LM-80 SMD LEDs

Key Features of the C3535 RGBW Package LEDs:

1, Eutectic-bonding packaging technique with flip-chips on a ceramic base, stronger cohesion,

less coefficient of expansion, more stable,tighter air-proof to enable tough outdoor application circumstances;

2, 30-50 times higher cohesion than other products by the Eutectic-bonding, higher conductivity upto 160W/mK;

3, Anti-UV silicon domed lens, anti-aging and better light direction;

4, LM-80 certification, Long lifespan over 50,000 hrs

Specification:

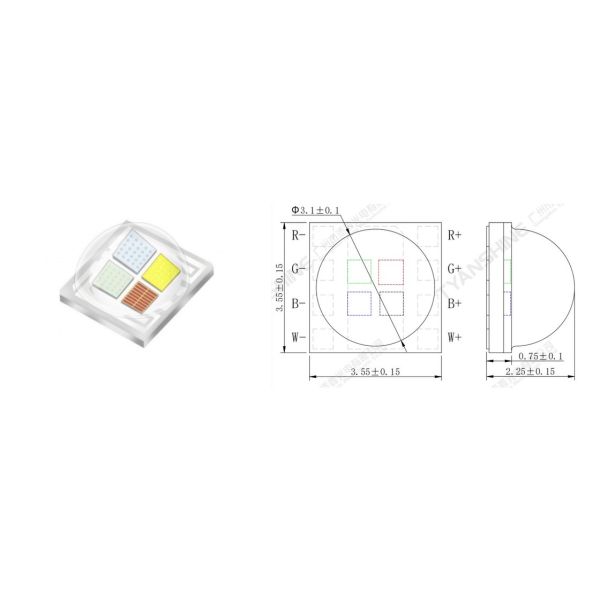

2W Ceramic 3535 RGBW LEDs, Dome Lens type

Ceramic SMD3535 LED RGBW 2Watt 200mA 4in1 RGBWW LM-80 SMD LEDs

Item Code Color Max. IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=150mA

 LES
(mm)
RGBW 6500K R 200 2.1-2.4 620-625 18-32 /
G 200 2.8-3.1 522-532 35-55 /
B 200 3.0-3.3 465-475 8-18 /
W 200 2.8-3.1 6500K±500K 50-80 80

Item Code Color Max. IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=150mA

 LES
(mm)
RGBW 5000K R 200 2.1-2.4 620-625 18-32 /
G 200 2.8-3.1 522-532 35-55 /
B 200 3.0-3.3 465-475 8-18 /
W 200 2.8-3.1 5000K±500K 50-80 80

Item Code Color Max. IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=150mA

 LES
(mm)
RGBW 4000K R 200 2.1-2.4 620-625 18-32 /
G 200 2.8-3.1 522-532 35-55 /
B 200 3.0-3.3 465-475 8-18 /
W 200 2.8-3.1 4000K±300K 40-65 80

Item Code Color Max. IF
(mA)		 VF
(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=150mA

 LES
(mm)
RGBW 3000K R 200 2.1-2.4 620-625 18-32 /
G 200 2.8-3.1 522-532 35-55 /
B 200 3.0-3.3 465-475 8-18 /
W 200 2.9-3.4 3000K±150K 40-65 80

Appplications:

1, Outdoor Landscape illumination & Architectural lighting:

Luminaries such as Liner light, wall-washer, flood light, under-ground and under water light, etc.

Ceramic SMD3535 LED RGBW 2Watt 200mA 4in1 RGBWW LM-80 SMD LEDs

2, Entertainment lighting/Stage lighting

Matrix panel lights, Moving Heads panels, Par cans lights...
