Specifications
Brand Name :
TYANSHINE
Model Number :
TX-3535RGBW4
Certification :
RoHS Reach LM-80 IEC62471
Place of Origin :
CN
MOQ :
1000pcs
Packaging Details :
In tape reel
Power :
4W
Voltage :
3V
Current :
500mA
Size :
SMD3535
Substrate :
Ceramic
Colour :
RGBW / RGBL / RGBA
Description

Ceramic SMD3535 LED RGBL 4Watt 500mA 4in1 RGBW LM-80 SMD RGBA LEDs

Key Features of the SMD3535 RGBW Package LEDs:

1, Eutectic-bonding packaging technique with flip-chips on a ceramic base, stronger cohesion, less coefficient of expansion, more stable,tighter air-proof to enable tough outdoor application circumstances;

2, 30-50 times higher cohesion than other products by the Eutectic-bonding, higher conductivity upto 160W/mK;

3, Anti-UV silicon domed lens, anti-aging and better light direction;

4, LM-80 certification, Long lifespan over 50,000 hrs

Specification:

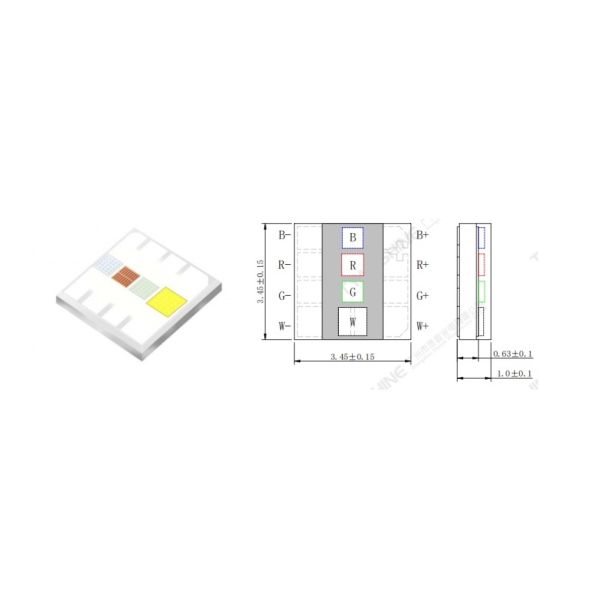

(4W Ceramic 3535 RGBW LEDs) Dome Lens type

Ceramic SMD3535 LED RGBL 4Watt 500mA 4in1 RGBW LM-80 SMD RGBA LEDs

Item Code Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=350mA

 CRI
RGBW R 500 2.0-2.3 620-625 50-80 /
G 500 2.9-3.2 518-528 90-135 /
Royal Blue 500 2.9-3.2 450-460 17-27 /
Light Blue 465-475 27-40 /
W 500 2.9-3.2 6500K±500K 100-130 80

Item Code Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=350mA

 CRI
RGBW R 500 2.0-2.3 620-625 50-80 /
G 500 2.9-3.2 518-528 90-135 /
Royal Blue 500 2.9-3.2 450-460 17-27 /
Light Blue 465-475 27-40 /
W 500 2.9-3.2 5000K±500K 100-130 80

Item Code Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=350mA

 CRI
RGBW R 500 2.0-2.3 620-625 50-80 /
G 500 2.9-3.2 518-528 90-135 /
Royal Blue 500 2.9-3.2 450-460 17-27 /
Light Blue 465-475 27-40 /
W 500 2.9-3.2 4000K±300K 90-115 80

Item Code Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=350mA

 CRI
RGBW R 500 2.0-2.3 620-625 50-80 /
G 500 2.9-3.2 518-528 90-135 /
Royal Blue 500 2.9-3.2 450-460 17-27 /
Light Blue 465-475 27-40 /
W 500 2.9-3.2 3000K±150K 85-115 80

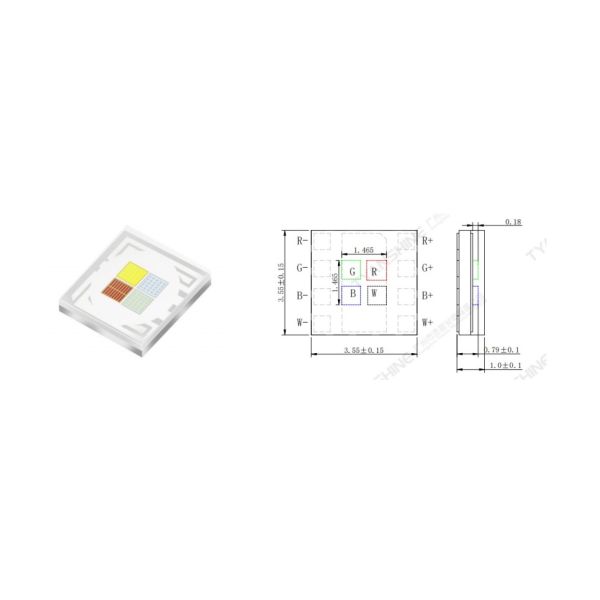

(4W Ceramic 3535 RGBW LEDs) Flat Lens type

Ceramic SMD3535 LED RGBL 4Watt 500mA 4in1 RGBW LM-80 SMD RGBA LEDs

Item Code Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=350mA

 CRI
RGBW R 500 2.0-2.6 620-625 50-80 /
G 500 2.7-3.5 518-528 90-135 /
Light Blue 500 2.8-3.5 465-475 25-40 /
W 500 2.8-3.5 6500K±500K 80-105 80

Item Code Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=350mA

 CRI
RGBW R 500 2.0-2.6 620-625 50-80 /
G 500 2.7-3.5 518-528 90-135 /
Light Blue 500 2.8-3.5 465-475 25-40 /
W 500 2.8-3.5 5000K±300K 75-100 80

Item Code Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=350mA

 CRI
RGBW R 500 2.0-2.6 620-625 50-80 /
G 500 2.7-3.5 518-528 90-135 /
Light Blue 500 2.8-3.5 465-475 25-40 /
W 500 2.8-3.5 4000K±300K 70-90 80

Item Code Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=350mA

 CRI
RGBW R 500 2.0-2.6 620-625 50-80 /
G 500 2.7-3.5 518-528 90-135 /
Light Blue 500 2.8-3.5 465-475 25-40 /
W 500 2.8-3.5 3000K±150K 57-80 80

(4W Ceramic 3535 RGBW LEDs) Flat Lens type

Ceramic SMD3535 LED RGBL 4Watt 500mA 4in1 RGBW LM-80 SMD RGBA LEDs

Item Code Color Max.IF
(mA)		 VF(V)

λd (nm)

CCT (°K)

Lumen(lm)

If=350mA

 CRI
RGBW R 500 2.0-2.6 620-625 50-80 /
G 500 2.7-3.5 518-528 90-135 /
Light Blue 500 2.8-3.5 465-475 25-40 /
W 500 2.8-3.5 5150-5850K 90-120 80

Appplications:

1, Outdoor Landscape illumination & Architectural lighting:

Luminaries such as Liner light, wall-washer, flood light, under-ground and under water light, etc.

2, Entertainment lighting/Stage lighting

Ceramic SMD3535 LED RGBL 4Watt 500mA 4in1 RGBW LM-80 SMD RGBA LEDs
