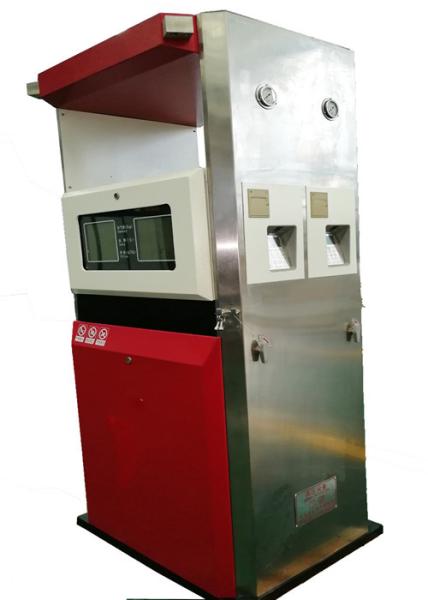

Four Nozzles CNG Dispenser Explosion - Proof With Special Filtering Systems
Four Nozzles CNG Dispenser Explosion - Proof With Special Filtering Systems
Specifications
Brand Name :
JINGKE
Model Number :
JKJQ-30-IIII, F
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
150 sets per month
Delivery Time :
20 days
Packaging Details :
Wooden box
Material :
Stainless steel
Color :
as required
Application :
compressed natural gas
Usage :
CNG dispenser
Working pressure :
≤25 MPa
Power :
200kw
Temperature range :
-35℃～+55℃
Warranty :
1 year
Nozzle :
auto shutoff nozzle
Hose :
anti-static rubber hose
Description

Four nozzles CNG filling machine for CNG gas filling station

Application:

The CNG filling machine is used for CNG filling station.

Features:

The CNG filling machine has the below features:

* Specially designed filtering systems with build-in re-cleanable filter

* With rich functions expansion like POS for smart card and bank card

* Flexible fuel application for gasoline, diesel, and kerosene etc.

* Works well in harsh conditions, like extremely cold, hot, humid, and sand-stormy environment

Technical parameters:

NO. Item Description
1 Explosive-proof grade Ex d e ib mbii B T4 Gb
2 Medium CNG
3 Range of flow (1-30)kg/min
4 Accuracy of measuring 1
5 Measurement repeatability 0.50%
6 Maximum working pressure 25MPa
7 Nominal working pressure 20MPa
8 Temperature (-35-55)°C
9 Humidity ≤95%
10 Working voltage 220V AC± 15% 50Hz
11 Motor power ≤300W
12 One counter range 0~9999.99Nm³,kg,
13 The cumulate counter range 0~99999999.99Nm³,kg,
14 Weight 230Kg
15 Other In favor of IC card,RS485communicaion protocol
