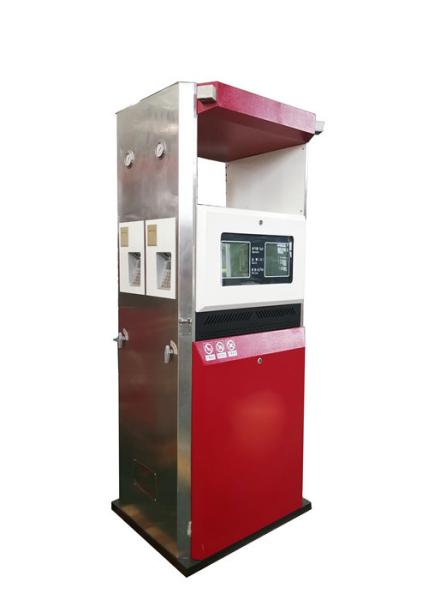

High Accuracy Pneumatic Ball Valves CNG Dispenser For Compressed Natural Gas
High Accuracy Pneumatic Ball Valves CNG Dispenser For Compressed Natural Gas
Specifications
Brand Name :
JINGKE
Model Number :
JKJQ-30-II, C
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
150 sets per month
Delivery Time :
20 days
Packaging Details :
Wooden box
Material :
Stainless steel
Color :
as required
Application :
compressed natural gas
Usage :
CNG dispenser
Working pressure :
≤25 MPa
Power :
240w
Temperature range :
-35℃～+55℃
Warranty :
1 year
Product name :
CNG dispenser
Type :
Dispenser
Flow rate :
1-20KGS/min
Solenoid valve :
Two stage electronic solenoid valve
Description

High accuracy Pneumatic Ball Valves CNG dispenser For CNG Filling Station​

Application:

The CNG dispensers serve for dispensing of compressed natural gas (CNG) on filling stations for vehicles.

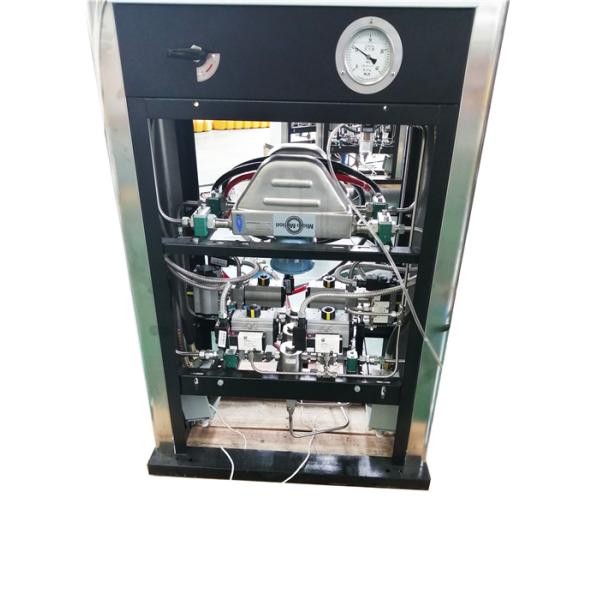

The CNG dispensers are one-sided or double-sided with one to four hoses. The CNG dispensers are equipped by the high-quality pressure system, mass flow meter and by the reliable electronic calculator.

The CNG dispensers are operated both in the manual mode (i.e. off-line), and in the automatic mode, where the fuel dispenser is linked with the control system and the data concerning volume, sum and price are transmitted to POS.

Technical parameters:

Item no. JKJQ-30-II, IV
Explosion proof certificate CNEx14.3295
EX mark Ex d e ib mbⅡB T4 Gb
Working medium CNG
Flow range(filling dispenser) (1～30)kg/min
Meter accuracy class 1.0
Max.working pressure 25Mpa
Rated working pressure 20Mpa
Input power AC 187V~242V 50±1Hz, P≤300W
Work enviroment Enviroment temperature:-35℃～+55℃
Relative humidity:≤95%
Ambient atmosphere:86～110kPa
unit of measurement dollar/kg dollar/m3
Weight,including package 220kg
