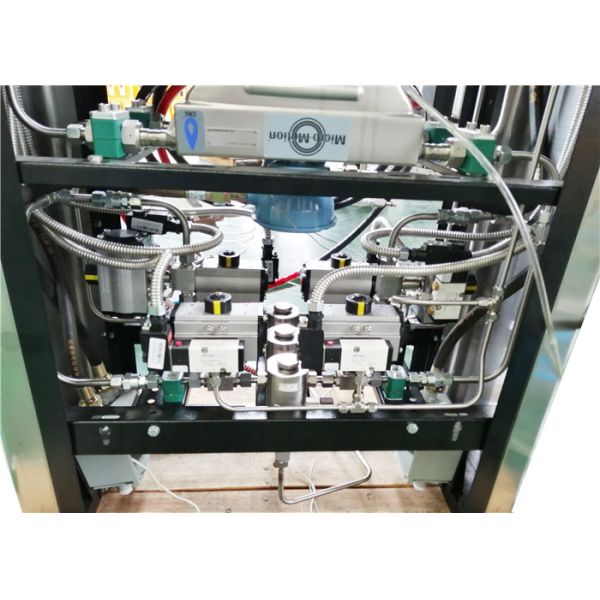

Quick Filling CNG Dispenser Solenoid Valves Compressed Natural Gas Dispenser
Quick Filling CNG Dispenser Solenoid Valves Compressed Natural Gas Dispenser
Specifications
Brand Name :
JINGKE
Model Number :
JKJQ-30-II, D
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
150 sets per month
Delivery Time :
20 days
Packaging Details :
Wooden box
Material :
Stainless steel
Application :
compressed natural gas
Working pressure :
≤25 MPa
Temperature range :
-35℃～+55℃
Warranty :
1 year
Type :
CNG dispenser
Flow rate :
1～20 kg/min
Nozzle :
Auto shutoff nozzle
Hose :
Anti-static rubber hose
Description

Quick Filling high efficiency CNG Dispenser Solenoid Valves CNG Gas Dispenser

Description:

The CNG dispensers are configured according to the needs of each refueling station for medium capacity vehicles refilling.

Features:

1. Remote monitoring

2. Compliance with international standards

3. Low maintenance

4. Low operating cost

Technical parameters:

Item no. JKJQ-30-II, IV
Product standards GB/19237 JJG996-2012 Q/75595257-9.8-2014
Full performance test certificate 2015-001
Explosion proof certificate CNEx14.3295
EX mark Ex d e ib mbⅡB T4 Gb
Working medium CNG
Flow range(filling dispenser) (1～30)kg/min
Meter accuracy class 1.0
Max.working pressure 25Mpa
Rated working pressure 20Mpa
Input power AC 187V~242V 50±1Hz, P≤300W
Work enviroment Enviroment temperature:-35℃～+55℃
Relative humidity:≤95%
Ambient atmosphere:86～110kPa
unit of measurement dollar/kg dollar/m3
Weight,including package 220kg

Quick Filling CNG Dispenser Solenoid Valves Compressed Natural Gas Dispenser
