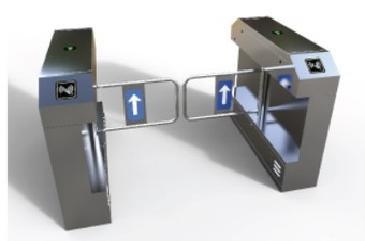

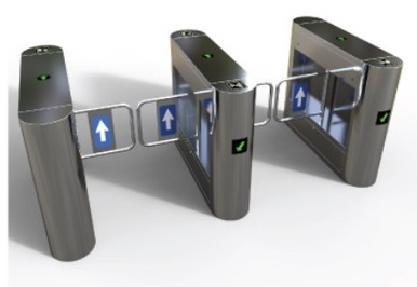

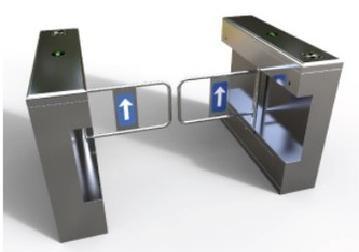

Customized Swing Barrier Gate Turnstile Stainless Steel Material
Customized Swing Barrier Gate Turnstile Stainless Steel Material
Customized Swing Barrier Gate Turnstile Stainless Steel Material
Customized Swing Barrier Gate Turnstile Stainless Steel Material
Customized Swing Barrier Gate Turnstile Stainless Steel Material
Customized Swing Barrier Gate Turnstile Stainless Steel Material
Specifications
Brand Name :
AT
Model Number :
SZAT-B8000
Certification :
CE FCC RoHS
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, T/T
Delivery Time :
4-6 Weeks
Packaging Details :
According to customer requirements
Closing Time :
1.2s
Control Mode :
Remote Control/Button Control
Dimension :
1200*280*980mm
Material :
Stainless Steel/Aluminum Alloy
Maximum Passage Height :
2.2m
Maximum Passage Width :
3.5m
Opening Time :
1.2s
Operating Temperature :
-20℃~+70℃
Power Supply :
AC/DC
Product Name :
Barrier Gate Series
Protection Level :
IP54
Voltage :
220V/110V
Weight :
80kg
Description

Customized Swing Barrier Gate

echnical parameters:

Chassis material: Domestic standard

(304) stainless steel

· Chassis size:1200L*280W"980H(mm)

· Expansion arm length:260mm

Max .channel width:≤550mm

· Weight: Gross weight 65Kg

Mains voltage:AC220±10% V,50HZ

Drive motor: DC brush motor(24V)

Input interface: Relay switch signal or 12V

level signal or pulse width >100ms pulse

signal, drive current >10mA

■ Normal service life: 3 million times

Communication interface:TCP/IP

communication

Pass speed: 30-40 people /minute

Brake start / stop time: 0.6 second

Required electrify & pass time: 3 second

Automatic reset time after trouble takes

place: 10 second

· Operating environmentIndoor, outdoor

(cloudiness-shed)

Temperature:- 15 ℃—60 ℃

· Relative humidity: ≤%, o

condensation
