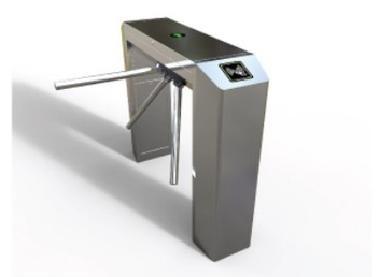

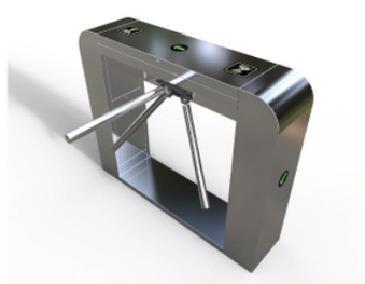

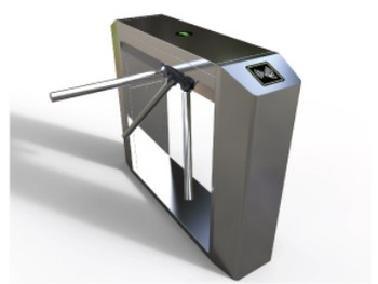

Automatic Tripod Barrier Gate Stainless Steel Tripod Turnstile
Automatic Tripod Barrier Gate Stainless Steel Tripod Turnstile
Automatic Tripod Barrier Gate Stainless Steel Tripod Turnstile
Automatic Tripod Barrier Gate Stainless Steel Tripod Turnstile
Automatic Tripod Barrier Gate Stainless Steel Tripod Turnstile
Automatic Tripod Barrier Gate Stainless Steel Tripod Turnstile
Specifications
Brand Name :
AT
Model Number :
AT-J500D
Certification :
CE FCC RoHS
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, T/T
Delivery Time :
4-6 Weeks
Packaging Details :
According to customer requirements
Closing Time :
1.2s
Control Mode :
Remote Control/Button Control
Dimension :
1200*280*980mm
Material :
Stainless Steel/Aluminum Alloy
Maximum Passage Height :
2.2m
Maximum Passage Width :
3.5m
Opening Time :
1.2s
Operating Temperature :
-20℃~+70℃
Power Supply :
AC/DC
Product Name :
Barrier Gate Series
Protection Level :
IP54
Voltage :
220V/110V
Weight :
80kg
Description

Tripod Turnstile

Technical parameters:

■ Box material: Stainless steel

Structure: Frame structure / stainless steel

housing

· Production craft & technology: Fully

· computerized CNC laser cutter manufacture

· Product size:(L1200×W280×H980mm)

· Weight:(Gross weight 60kg)

· Brake lever length: 510mm outside box

Max.bearing force of brake lever: 80kg

· Operating drve fore of brakelever:3Kg

· Brake lever drive mode:Digital mode

Brake lever steering: One way, two-way

(optional)

· Automatic reset function: After gate opens, if no

pass within stipulated time, pass system will then

be locked automatically with adjustable pass

time .

· Lamp indication:Pass direction indication

· No time-delay requirement to input control

signal

· Operating environment: Indoor, outdoor

(cloudiness-shed)

· Temperature:- 15 ℃~60 ℃

· Relative humidity:≤90%,no condensation

· Read port size of sensor card: With standard

installation brackets or custom-made

■ Start time: 0.2 second

· Pass speed: 30 people / minute

Communication interface:TCP/IP

· Input interface: Dry contact signal or +12V level

signal or pulse width ≥100ms DC12V pulse

signal,drive current ≥10mA

Product tags

tripod turnstile barrier gate

,

security tripod turnstile gate

,

tripod turnstile gate mechanism
