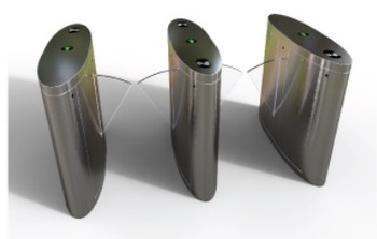

Automatic Flap Barrier Gate Turnstile With 1.2s Closing Time
Automatic Flap Barrier Gate Turnstile With 1.2s Closing Time
Specifications
Brand Name :
AT
Model Number :
SZAT-Y2008
Certification :
CE FCC RoHS
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, T/T
Delivery Time :
4-6 Weeks
Packaging Details :
According to customer requirements
Closing Time :
1.2s
Control Mode :
Remote Control/Button Control
Dimension :
1200*300*980mm
Material :
Stainless Steel/Aluminum Alloy
Maximum Passage Height :
2.2m
Maximum Passage Width :
3.5m
Opening Time :
1.2s
Operating Temperature :
-15℃~+70℃
Power Supply :
AC/DC
Product Name :
Barrier Gate Series
Protection Level :
IP54
Voltage :
220V/110V
Weight :
65kg
Description

Flap Barrier Gate

Technical parameters:

Chassis material: Domestic standard (304) stainless steel

Chassis size:1200X300X980(mm)

· Expansion arm length:260mm

Max.channel width:≤550mm

Weight: Gross weight 65Kg

· Mains voltage:AC220±10%V,50HZ

· Drive motor: DC brush motor(24V)

· Input interface: Relay switch signal or 12V level signal or pulse width >

100ms pulse signal, drive current >10mA

Normal service life: 3 million times

Communication interface:TCP/IP communication

Pass speed:30-40 people /minute

Brake start/ stop time: 0.6 second

Required electriy & pass time: 3 second

· Automatic reset time after trouble takes place: 10 second

· Operating envronment: Indoor,outdoor(cloudiness-shed)

Temperature:- 15 ℃-60 ℃

· Relative humidity:≤90%,no condensatio
