Specifications
Supply Ability :
30 sets one week
Wire Diameter :
0.2-2.3mm
Model Number :
HYD-20T-3A
Additional Tool :
Spinner
MOQ :
1 Set
Delivery Time :
15 Days
Cutting tool :
Standard
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Axis :
Three to Four Axes
Decoiler :
150KG
Price :
Negotiable
Delivery date :
15 days
CNC system :
Automatic
Certification :
CE / IS09001
Packaging Details :
Standard Seaworthy Plywood Case
Place of Origin :
Dongguan,China
Brand Name :
HYD
Description
380V 0.2 - 2.3mm Torsion Spring Machine With 141m/Min Max Feeding Speed
0.2 - 2.3mm Torsion Spring Making Machine with Three to Four Axes

This advanced CNC spring making machine is designed for producing tension springs, torsion springs, and various wire forms. The standard model features three axes, with customization options available to meet specific production requirements.

Key Features
  • Multi-axis configurations available (3, 4, 5, 6, 10, or 12 axes)
  • 12-axis model includes wire rotation function
  • High-speed production capabilities
  • Extensive program storage capacity
  • Robust motor system for precision operation
Technical Specifications
Specification Value
Wire Size Range 0.2 - 2.3mm
Maximum Feeding Speed 141 m/min
Direct Storage Programs 1000
X-axis Motor Output 2.7 KW
Y-axis Motor Output 2.7 KW
Z-axis Motor Output 1.0 KW
Machine Dimensions 1400 × 900 × 1600 mm
Operating Voltage 380V
Machine Weight 700 kg

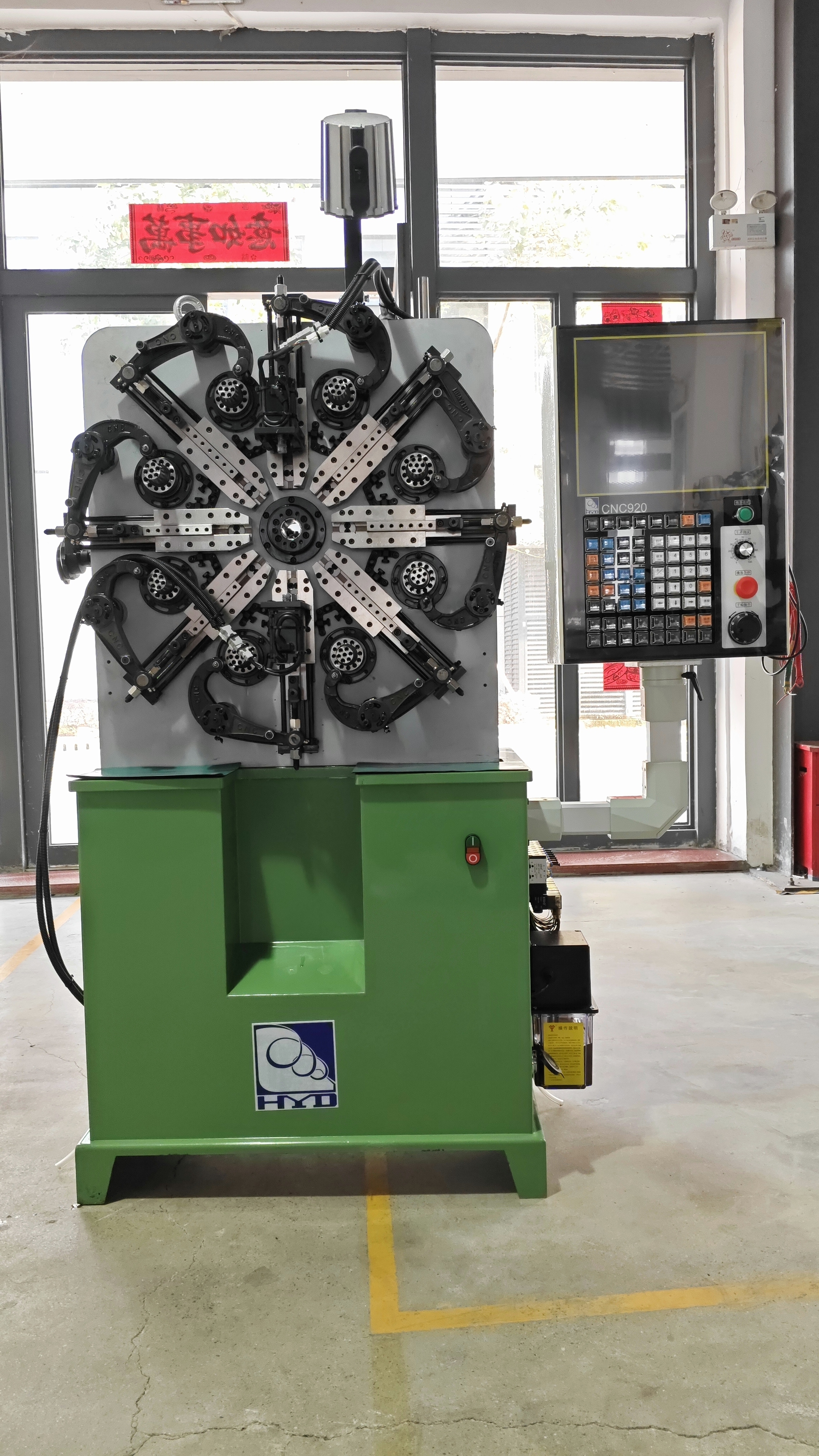

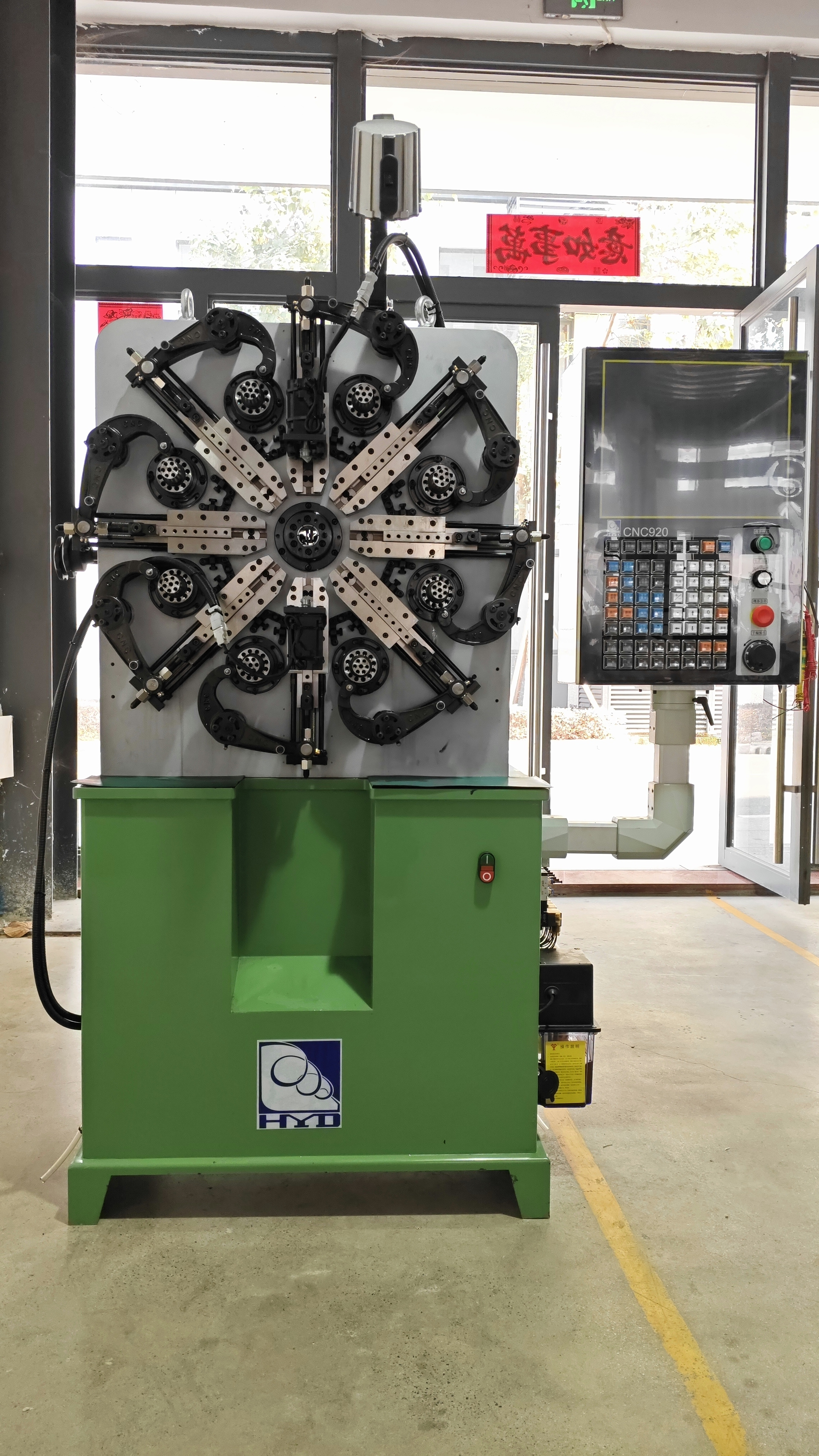

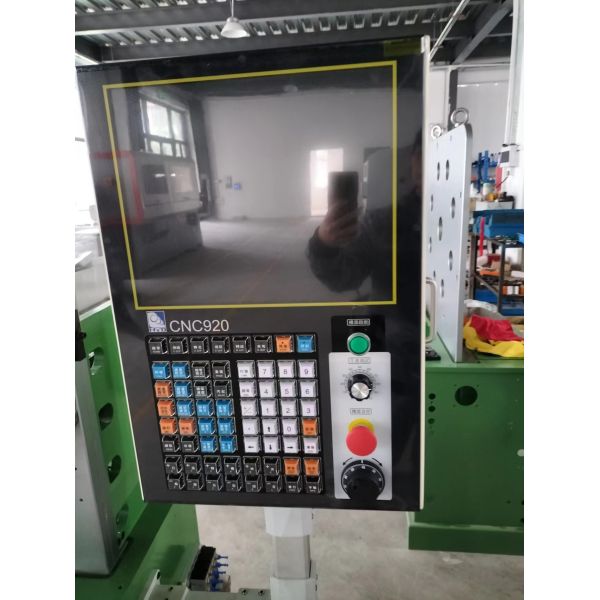

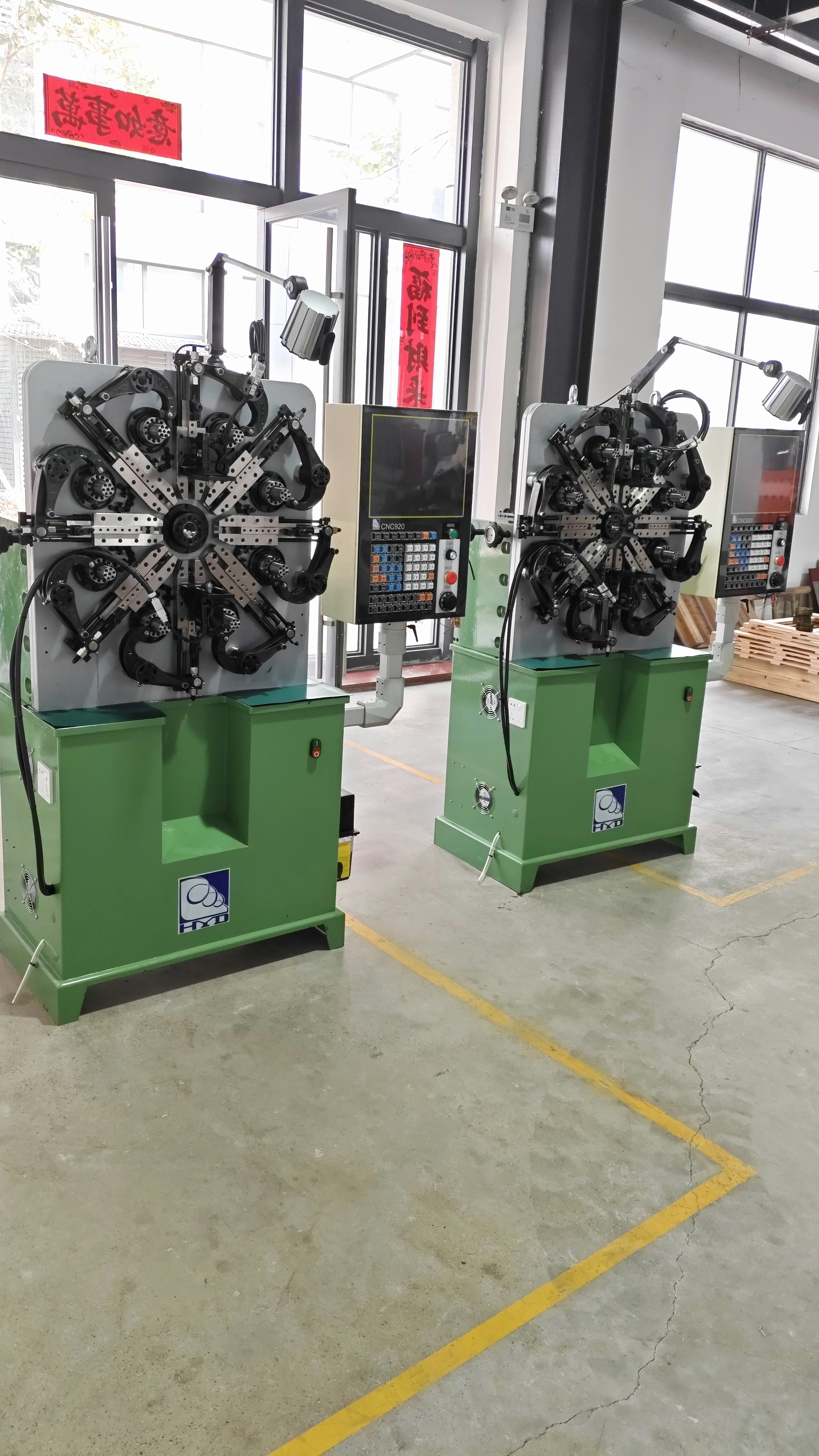

Machine Gallery
380V 0.2 - 2.3mm Torsion Spring Machine With 141m / Min Max Feeding Speed
380V 0.2 - 2.3mm Torsion Spring Machine With 141m / Min Max Feeding Speed
380V 0.2 - 2.3mm Torsion Spring Machine With 141m / Min Max Feeding Speed
380V 0.2 - 2.3mm Torsion Spring Machine With 141m / Min Max Feeding Speed
380V 0.2 - 2.3mm Torsion Spring Machine With 141m / Min Max Feeding Speed
380V 0.2 - 2.3mm Torsion Spring Machine With 141m / Min Max Feeding Speed
380V 0.2 - 2.3mm Torsion Spring Machine With 141m / Min Max Feeding Speed
Spring Production Samples
380V 0.2 - 2.3mm Torsion Spring Machine With 141m / Min Max Feeding Speed
380V 0.2 - 2.3mm Torsion Spring Machine With 141m / Min Max Feeding Speed
Service Support
  • Durable machine quality with professional technical support
  • Free production solutions provided by experienced HYD engineering team
  • Comprehensive training and facility visits warmly welcomed
