Stable Torsion Spring Making Machine Two Axes For Diameter 0.15 - 1.6mm Wire
Stable Torsion Spring Making Machine Two Axes For Diameter 0.15 - 1.6mm Wire
Stable Torsion Spring Making Machine Two Axes For Diameter 0.15 - 1.6mm Wire
Stable Torsion Spring Making Machine Two Axes For Diameter 0.15 - 1.6mm Wire
Stable Torsion Spring Making Machine Two Axes For Diameter 0.15 - 1.6mm Wire
Stable Torsion Spring Making Machine Two Axes For Diameter 0.15 - 1.6mm Wire
Stable Torsion Spring Making Machine Two Axes For Diameter 0.15 - 1.6mm Wire
Stable Torsion Spring Making Machine Two Axes For Diameter 0.15 - 1.6mm Wire
Stable Torsion Spring Making Machine Two Axes For Diameter 0.15 - 1.6mm Wire
Stable Torsion Spring Making Machine Two Axes For Diameter 0.15 - 1.6mm Wire
Specifications
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Max Outside Diameter :
45mm
System :
English
Power AC :
3-Phase 380V
Model Number :
HYD-216
MOQ :
1 Set
Packaging Details :
Standard Seaworthy Plywood Case
Price :
Negotiable
Machine Weight :
850KG
Certification :
CE / IS09001
Place of Origin :
Dongguan,China
Delivery Time :
25 Days
Axis :
2 axes
Brand Name :
HYD
Wire diameter :
0.15-1.6mm
Description
Stable Torsion Spring Making Machine Two Axes For Diameter 0.15 - 1.6mm Wire
Two Axes Torsion Spring Making Machine with Enhanced Stability
This high-performance torsion spring making machine combines convenient mechanization with precision servo motion control for exceptional accuracy and production efficiency.
Key Features
  • High-speed spring production up to 300 pieces per minute
  • Precision servo motion system for superior accuracy
  • Cam motor-driven cutter, pitch, and outside diameter control
  • Advanced servo drive control system
  • Unlimited maximum feeding length capability
Technical Specifications
ModelHYD-216
Wire Diameter Range0.15-1.6mm
Number of Axes2 axes
Maximum Feeding LengthUnlimited
Maximum Production Speed300pcs/min
Maximum Outside Diameter45mm
Wire Feed Servo Motor2.7kw
Cam Servo Motor2.7kw
Power Requirements3-Phase 380V AC
Machine Dimensions1000×900×1500mm
Machine Weight800kg
Gross Weight850kg

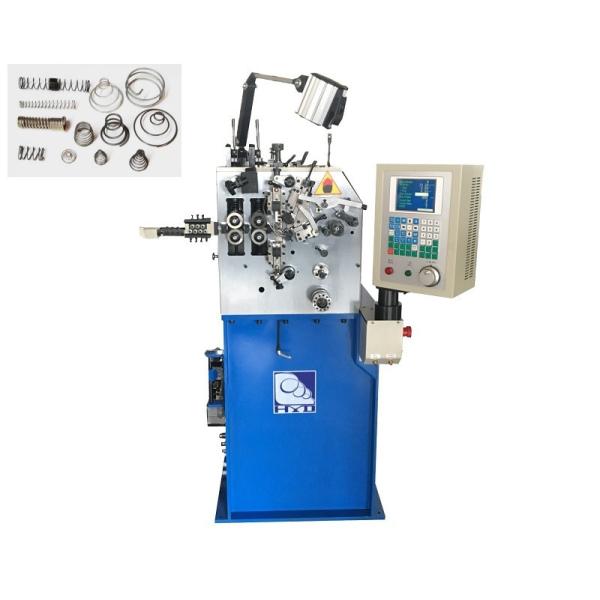

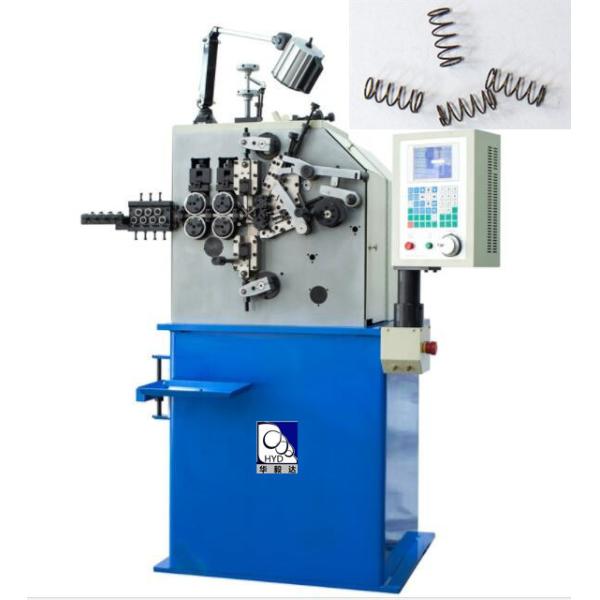

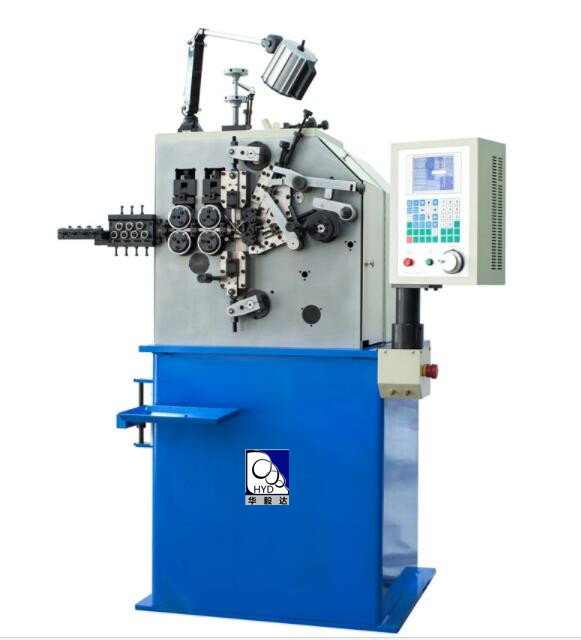

Product Images
Stable Torsion Spring Making Machine Two Axes For Diameter 0.15 - 1.6mm Wire Stable Torsion Spring Making Machine Two Axes For Diameter 0.15 - 1.6mm Wire Stable Torsion Spring Making Machine Two Axes For Diameter 0.15 - 1.6mm Wire Stable Torsion Spring Making Machine Two Axes For Diameter 0.15 - 1.6mm Wire
About Our Manufacturing Capabilities
Our comprehensive spring manufacturing equipment covers wire diameters from 0.15mm to 8.00mm, supporting various spring types including:
Compression springs, torsional springs, extension springs, wire forms, and abnormal-shaped springs.
