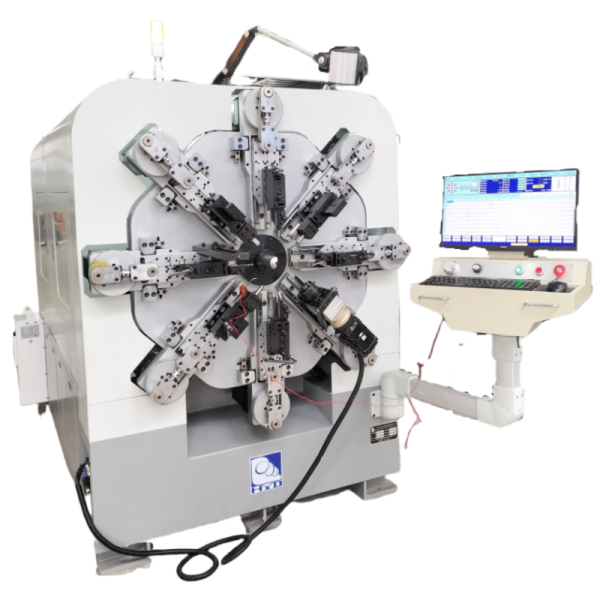

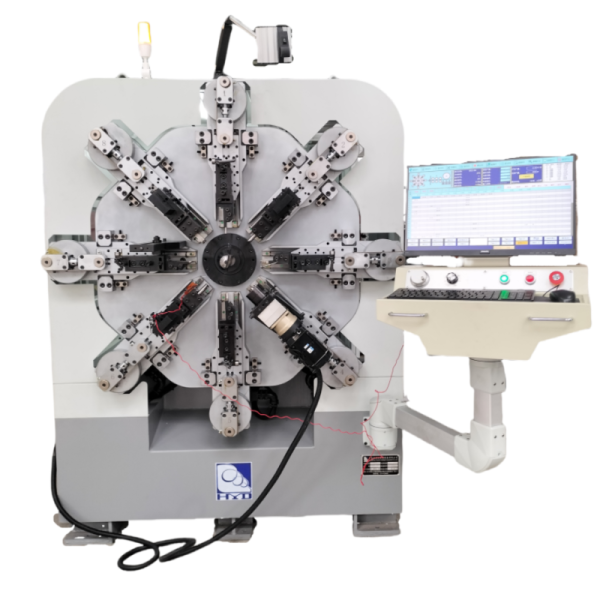

Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides
Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides
Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides
Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides
Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides
Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides
Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides
Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides
Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides
Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides
Specifications
Model Number :
HYD-40T-12A
Guarantee Period :
One year
MOQ :
1 Set
Delivery Time :
30 Days
Payment Term :
T/T
Payment Terms :
Negotiable,L/C,T/T
Axis :
Twelve Axes
Servo Motor :
Sanyo
Price :
Negotiable
Optional Tools :
Servo scissors
Power Ac :
380V 50Hz
Supply Ability :
20 Pcs Per Month
Wire Diameter :
low carbon steel:2-6mm high-carbon steel:1-4mm
Brand Name :
HYD
Port :
Shenzhen,China
Certification :
CE / IS09001
Place of Origin :
Dongguan,China
Packaging Details :
Standard Seaworthy Plywood Case
Description
Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides
High-carbon steel: 1-4mm Cam-less Spring Machine & Torsion Spring Machine
Technical Specifications
Component Specification Remarks
Cam axis 8 axes Sanyo 13120 (1.2KW) motor 8 pcs, 1:15 reducer 8 pcs
Wire feed axis 1 axis Sanyo 18450 (4.5KW) motor 1 pcs
Rotary wire feed 1 axis Sanyo 8100 (1.0KW) motor 1 pcs, 1:5 reducer 1 pcs
Guide Distance of 100MM HIWIN
Wire feeding group 4 groups -
Max speed of wire feed 100 meters/min -
Maximum change ±0.05 (length) -
Wire range Low-carbon steel 2-6MM
High-carbon steel 1-4MM		 -
Machine weight 3000KG -
Machine size 2300MM × 1200MM × 1950MM -
Servo motor Sanyo -
CNC control system 1 set -
Wire decoiler 1 set 500KG
Shaft core 6 set -
Wire feeding wheel/wire gauge - -
Blade adapter 6 pcs -
Correcting wheel 2 set -
Max Outside Diameter 300MM -
Maximum diameter of tower shape 230 -
Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides Camless Torsion Spring Machine With Link Rocker Design And Double Roller Guides
Machine Features
  • Link rocker design with independent single-axis servo motor control for simple, convenient operation. Shaped springs can be placed by tooling angle to reduce setup times and increase production efficiency.
  • Taiwan double roller guides with excellent wear resistance for durability and maintained accuracy. Dual track design allows flexible left-right adjustment.
  • Taiwan helical gear reducer for enhanced intensity and security.
  • Taiwan control system effectively ensures mechanical and computer synchronization.
  • Separated motor and power transmission lines reduce delivery line box load, increase turn angle of the line, and ensure accuracy in line feed transfer.
HYD Service
  • Free training provided at HYD production base. Pictures and video of machine operation sent for confirmation before shipment.
  • Professional and patient consulting service to help find suitable solutions.
  • Quick and safe shipment including booking, container loading, and shipping documents as per requirements.
  • Technical support via email and phone, with technicians available if necessary.
  • Spare parts freely supplied during one-year guarantee period, available at original cost thereafter.
Frequently Asked Questions
What information helps get an accurate quotation?
Provide related drawings, pictures, industrial voltage, planned output, and technical requirements.
What is the power supply of the machine?
Standard power supply in China is 380V, 3P, 50Hz. Customization available as per requirements.
What is the payment term?
30% deposit upon PO confirmation, 70% before shipment. Other payment terms accepted.
What is the delivery time?
Normal manufacturing time is 30 days after receiving deposit, depending on machine model. Some models can be completed within 15 days.
What is the guarantee period?
One year guarantee period from the date of B/L.
