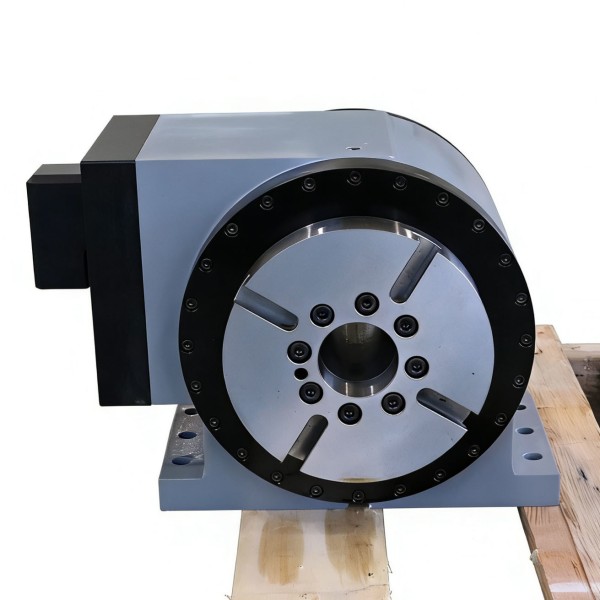

Natural Cooling Direct Drive 4th Axis Rotary Table With 65 Nm Rated Motor Torque
Natural Cooling Direct Drive 4th Axis Rotary Table With 65 Nm Rated Motor Torque
Natural Cooling Direct Drive 4th Axis Rotary Table With 65 Nm Rated Motor Torque
Natural Cooling Direct Drive 4th Axis Rotary Table With 65 Nm Rated Motor Torque
Specifications
Price :
Negotiable
Table Diameter :
170 Mm
Max Rotating Speed :
200 R/min
Clamping Brake Torque :
150 N·m
Payment Terms :
T/T
T-slot Specification :
12H8
Max Table Load Capacity :
50 Kg
Cable Outlet Type :
Aviation Plug Connector
Packaging Details :
Wooden Box
Center Height :
135 Mm
Certification :
ISO9001,CE
Delivery Time :
According To Customer Needs
Brand Name :
JuZhuo
MOQ :
1set
Rated Motor Torque :
65 N·m
Model Number :
DAR-170-02
Place Of Origin :
Dongguan,China
Supply Ability :
1000set/month
Name :
4th Axis Rotary Table
Description
Natural Cooling Direct Drive 4th Axis Table Rated Motor Torque 65 Nm
Ideal for high precision CNC rotary positioning tasks in aerospace, automotive, electronics, and general manufacturing applications.
Product Overview
The 4th Axis Direct-Drive Rotary Table delivers superior performance, reliability, and accuracy for advanced machining and automation. Featuring horizontal shaft mounting for optimal alignment and stability, natural cooling for reduced maintenance, and robust construction for long-term durability.
Key Features
  • Direct-drive motor provides high acceleration and torque with zero backlash
  • Robust pneumatic clamping brake system for enhanced stability and safety
  • Large-bore, high-rigidity bearings for smooth performance under heavy loads
  • Ideal for high-speed machining of turbine blades, medical equipment, and 3C electronic components
Technical Specifications
Application High-speed machining of turbine blades, medical equipment parts, 3C electronic components
IP Protection Class IP65
Max Table Load Capacity 50 Kg
Hollow Bore Diameter 40 mm
Peak Motor Torque 309 N·m
Rated Motor Torque 65 N·m
T-slot Specification 12H8
Overall Weight 48 Kg
Max Rotating Speed 200 R/min
Cable Outlet Type Aviation Plug Connector
Product Images
Natural Cooling Direct Drive 4th Axis Rotary Table With 65 Nm Rated Motor Torque Natural Cooling Direct Drive 4th Axis Rotary Table With 65 Nm Rated Motor Torque
Applications
The JuZhuo DAR-170-02 4th Axis Direct-Drive Rotary Table enhances CNC machine capabilities for complex multi-dimensional machining in metalworking, aerospace, automotive, and electronics industries. Certified with ISO9001 and CE standards, it supports milling, drilling, grinding, and assembly operations with precision and efficiency.
Customization & Ordering
Manufactured in Dongguan, China with minimum order quantity of 1 set. Flexible pricing and delivery times. Packaged in wooden boxes for safe delivery. Payment terms: T/T accepted. Supply capacity: 1000 sets per month.
Support & Services
Comprehensive technical support, installation assistance, software integration, and maintenance services. Product manual included with detailed instructions. Genuine parts replacement and upgrade options available.
Packaging & Shipping
Securely packaged in custom-fitted foam within double-walled cardboard boxes with additional protective materials. Multiple shipping options including standard ground freight, expedited air shipping, and international courier services. All shipments tracked and insured.
Frequently Asked Questions
Q: What is the brand and model number?
A: JuZhuo DAR-170-02
Q: Where is it manufactured?
A: Dongguan, China
Q: What certifications does it have?
A: ISO9001 and CE certified
Q: What is the minimum order quantity and packaging?
A: Minimum 1 set, packaged in wooden boxes
Q: What are the payment terms and delivery time?
A: T/T payment, delivery time arranged according to customer needs
