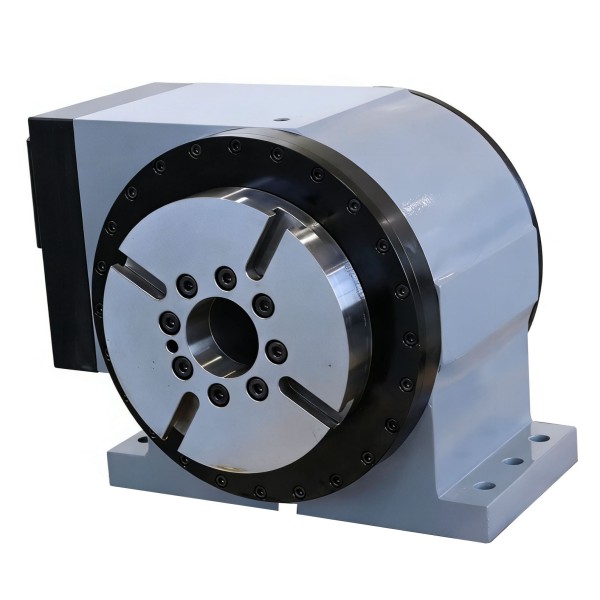

High Speed 200r/Min Direct Drive Rotary Table 4th Axis High Rigidity
High Speed 200r/Min Direct Drive Rotary Table 4th Axis High Rigidity
High Speed 200r/Min Direct Drive Rotary Table 4th Axis High Rigidity
High Speed 200r/Min Direct Drive Rotary Table 4th Axis High Rigidity
Specifications
Overall Weight :
48 Kg
Peak Motor Torque :
309 N·m
Max Rotating Speed :
200 R/min
MOQ :
1set
Place Of Origin :
Dongguan,China
Supply Ability :
1000set/month
Certification :
ISO9001,CE
Cable Outlet Type :
Aviation Plug Connector
Packaging Details :
Wooden Box
Application :
Ideal For High-speed Machining Of Turbine Blades, Medical Equipment Parts, 3C Electronic Components And Other Workpieces.
Name :
Direct Drive Rotary Table
Price :
Negotiable
Brand Name :
JuZhuo
Rated Motor Torque :
65 N·m
Model Number :
DAR-170-02
Delivery Time :
According To Customer Needs
Payment Terms :
T/T
Shaft Mounting Form :
Horizontal
Table Diameter :
170 Mm
Description
Max Table Load Capacity 50 Kg 4th Axis Direct Driver Rotary Table
Product Overview
The 4th Axis Direct-Driver Rotary Table is a state-of-the-art solution designed to enhance CNC machining centers by providing precise and reliable rotational movement. This advanced rotary table serves as a Fourth Axis CNC Rotary Table, making it essential for complex machining tasks requiring an additional axis of rotation.
With direct-drive technology, this rotary table delivers exceptional accuracy, smooth motion, and high rigidity, ensuring superior performance across various industrial applications. It features a maximum rotating speed of 200 R/min, enabling efficient machining processes and reduced cycle times.
Key Features
  • Direct-drive motor delivering high acceleration, impressive torque, precise control, and zero backlash operation
  • Robust pneumatic clamping brake system providing reliable and secure holding power
  • Rotary spindle with large-bore, high-rigidity bearings for enhanced durability and stability
  • Ideal for high-speed machining of turbine blades, medical device parts, 3C electronic components, and precision workpieces
  • Aviation plug connector for secure electrical connections in demanding industrial environments
  • Natural cooling motor system for maintenance-free operation and extended lifespan
Technical Specifications
Parameter Specification
Overall Weight 48 Kg
Hollow Bore Diameter 40 Mm
Motor Cooling Mode Natural Cooling
Clamping Brake Torque 150 N*m
T-slot Specification 12H8
Max Table Load Capacity 50 Kg
Max Rotating Speed 200 R/min
Peak Motor Torque 309 N*m
Table Diameter 170 Mm
Protection Class IP65
Product Images
High Speed 200r/Min Direct Drive Rotary Table 4th Axis High Rigidity
High Speed 200r/Min Direct Drive Rotary Table 4th Axis High Rigidity
Applications
The JuZhuo DAR-170-02 Fourth Axis Motorized Rotary Table is ideal for aerospace, automotive, mold making, and precision engineering industries. It enables multi-axis machining for creating complex geometries with high accuracy, particularly suited for intricate parts requiring simultaneous rotation and milling operations.
Customization & Ordering
Manufactured in Dongguan, China with ISO9001 and CE certification. Minimum order quantity is 1 set, packaged in wooden boxes. Supply capacity of 1000 sets per month with negotiable pricing. Delivery time arranged according to customer requirements with T/T payment terms.
Frequently Asked Questions
Q: What is the brand and model number?
A: JuZhuo DAR-170-02
Q: What certifications does it have?
A: ISO9001 and CE certified
Q: What is the minimum order quantity?
A: 1 set
Q: What are the payment terms?
A: T/T with negotiable pricing
