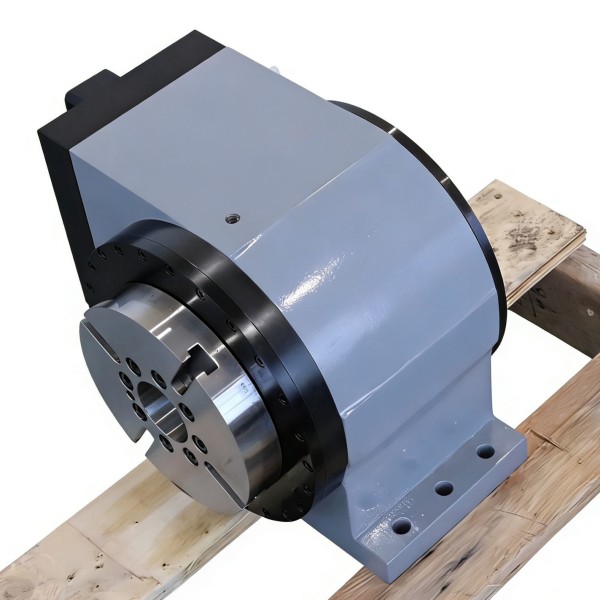

170mm Rotary Positioner Table 4th Axis Natural Cooling Horizontal Rotary Table
170mm Rotary Positioner Table 4th Axis Natural Cooling Horizontal Rotary Table
170mm Rotary Positioner Table 4th Axis Natural Cooling Horizontal Rotary Table
170mm Rotary Positioner Table 4th Axis Natural Cooling Horizontal Rotary Table
Specifications
Overall Weight :
48 Kg
Clamping Brake Torque :
150 N·m
Place Of Origin :
Dongguan,China
Rated Motor Torque :
65 N·m
Delivery Time :
According To Customer Needs
Payment Terms :
T/T
Application :
Ideal For High-speed Machining Of Turbine Blades, Medical Equipment Parts, 3C Electronic Components And Other Workpieces.
Certification :
ISO9001,CE
Supply Ability :
1000set/month
Hollow Bore Diameter :
40 Mm
Name :
Rotary Positioner Table
Packaging Details :
Wooden Box
Price :
Negotiable
Motor Cooling Mode :
Natural Cooling
MOQ :
1set
Brand Name :
JuZhuo
Model Number :
DAR-170-02
Max Table Load Capacity :
50 Kg
Table Diameter :
170 Mm
Description
170 Mm Table Diameter 4th Axis Rotary Positioner
The 4th Axis Direct-Driver Rotary Table is a cutting-edge solution designed for high precision and efficiency in various machining applications. This high precision rotary device is ideal for high-speed machining of turbine blades, medical equipment parts, 3C electronic components, and other intricate workpieces that demand exceptional accuracy and reliability.
Key Features
  • Direct-drive motor delivering exceptional acceleration and torque with zero backlash
  • Robust pneumatic clamping brake system for secure and efficient braking
  • Large-bore, high-rigidity bearings for smooth and stable rotation
  • Optimized for high-speed machining of turbine blades, medical device parts, and 3C electronic components
Technical Specifications
Application High-speed machining of turbine blades, medical equipment parts, 3C electronic components
Shaft Mounting Form Horizontal
Center Height 135 mm
Cable Outlet Type Aviation Plug Connector
IP Protection Class IP65
Peak Motor Torque 309 N*m
Table Diameter 170 mm
Clamping Brake Torque 150 N*m
Motor Cooling Mode Natural Cooling
Rated Motor Torque 65 N*m
170mm Rotary Positioner Table 4th Axis Natural Cooling Horizontal Rotary Table 170mm Rotary Positioner Table 4th Axis Natural Cooling Horizontal Rotary Table
Applications
The JuZhuo DAR-170-02 Fourth Axis CNC Rotary Table is ideal for CNC milling centers, engraving machines, and automated machining systems. Suitable for aerospace, automotive, mold making, and precision engineering industries where complex multi-axis machining is required.
Customization & Support
Customization services available with minimum order quantity of 1 set. Comprehensive technical support including installation guidance, troubleshooting, maintenance tips, software integration, and training sessions. Spare parts and repair services available to minimize downtime.
Frequently Asked Questions
What is the brand and model number?
Brand: JuZhuo, Model: DAR-170-02
Where is it manufactured?
Dongguan, China
What certifications does it have?
ISO9001 and CE certified
What are the packaging and delivery details?
Packaged in wooden box, delivery time arranged according to customer needs
What are the payment terms?
T/T (Telegraphic Transfer) with negotiable pricing
