Custom OEM 316L Stainless Steel Mazak 7 Axis Mill Turn Composite Measuring Cylinder Part
Product Overview

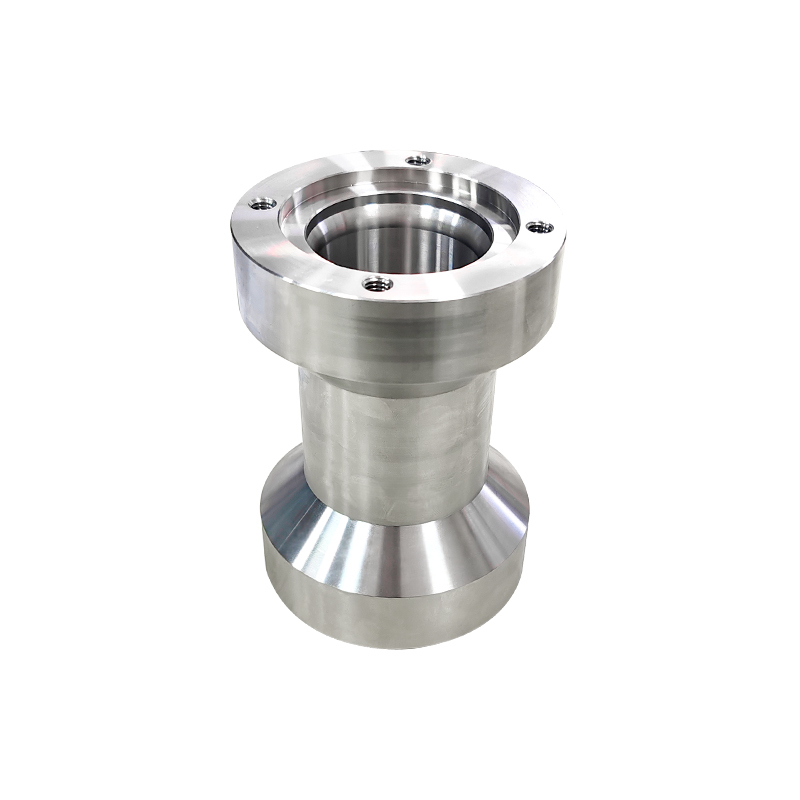

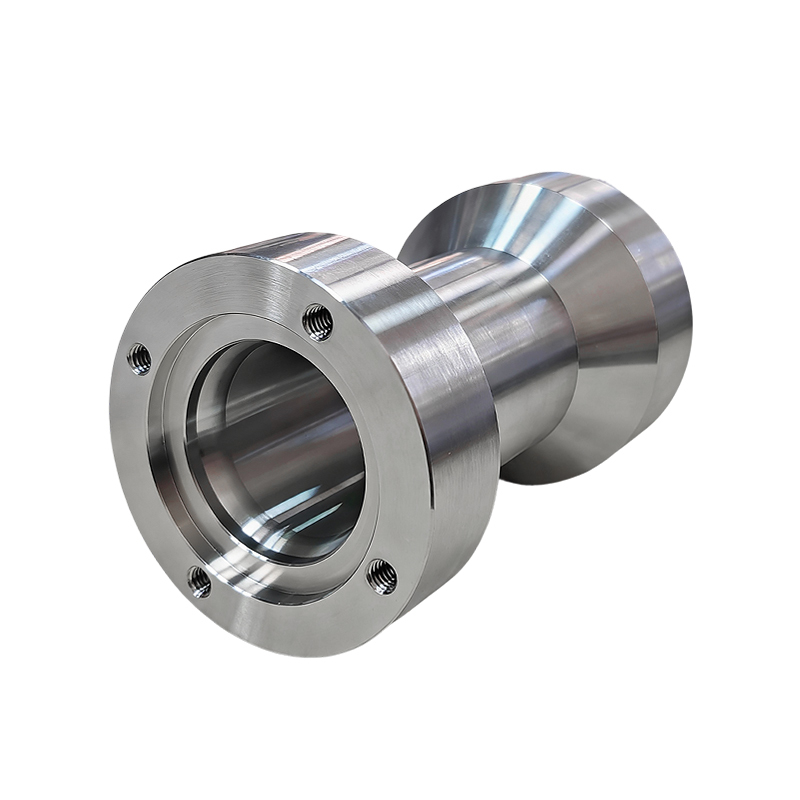

Custom CNC Machined 316L Stainless Steel Mill‑Turn Composite Measuring Cylinder Spare Part

This high‑precision 316L stainless steel measuring cylinder is processed by Mazak high‑end 7‑axis 5‑linkage mill‑turn composite machine. It features complex double‑ended stepped flange structure, multi‑stage precision inner bores, 90‑degree inclined surfaces, threaded holes and strict concentricity requirements. All dimensional tolerance, geometric tolerance and surface finish are strictly produced according to customer drawings.

Mazak 7‑axis 5‑linkage mill‑turn composite completes turning, complex inclined‑surface milling, boring, drilling and tapping in one single clamping. It eliminates repeated re‑clamping cumulative errors, guarantees high concentricity and positional accuracy, meets high‑precision sealing and corrosion‑resistant working requirements for long‑term industrial operation.

It is widely applied in daily‑chemical machinery, automation equipment, general mechanical assemblies and automotive industry precision spare parts.

Product Specifications

Final dimensions and tolerances are manufactured according to the approved customer drawing.

Item Specification
Product Name 316L Stainless Steel Measuring Cylinder
Product Type Precision Mill‑Turn Composite Machinery Spare Part
Machining Process Mazak High‑end 7‑Axis 5‑Linkage Mill‑Turn Composite Production
Material 316L Stainless Steel
Structural Features Double‑ended stepped flange, multi‑stage inner bore, 90° inclined mating surface, threaded holes, positioning pin holes
Surface Roughness Ra 1.6 μm / Ra0.8 μm for key sealing surfaces
Surface Treatment As‑machined, optional passivation, electroless nickel plating
Tolerance Standard Strictly follow customer drawing dimensional & geometric tolerances, concentricity ≤0.04 mm
Application Industry Daily‑Chemical Machinery, Automation Equipment, General Mechanical Parts, Automotive Industry
Production Mode Prototype / Low Volume / Mass Production
Mill‑Turn Composite Machining Advantages & Process Difficulty
Feature Our Capability
Composite Structure Machining Adopt imported Mazak 7‑axis 5‑linkage mill‑turn composite equipment, one‑setup complete turning, inclined‑face milling, boring, drilling and tapping for complex stainless steel measuring cylinder parts, avoids multiple‑process transfer errors of ordinary CNC machines
High Precision Control Unified rotary datum, tightly controls multi‑bore concentricity ≤0.04 mm, guarantees interchangeable assembly and reliable sealing performance
Process Difficulty 316L stainless steel material has poor machinability, easy to produce tool wear and burr. Complex mixed turning‑milling structure with 90° inclined surfaces, multi‑step inner‑outer bores and distributed holes. High requirement for concentricity of two‑end flanges, secondary clamping will cause obvious precision loss.
One‑Clamp Forming Advantage Mazak 7‑axis 5‑linkage realizes full‑feature one‑clamp forming, zero repeated positioning offset, stable batch dimensional consistency, greatly improves production efficiency for complex precision measuring cylinder
Surface Quality Fine‑finished sealing and mating surfaces, clean burr‑free edges, suitable for medium‑contact anti‑corrosion working environment
Product Highlights: Custom 316L stainless steel measuring cylinder processed by Mazak high‑end 7‑axis 5‑linkage mill‑turn composite; solves precision loss caused by multi‑process split‑processing; excellent concentricity and corrosion resistance; ideal complex fluid measuring cylinder component for daily‑chemical, automation and automotive equipment.
Available Materials

We provide CNC machining for a wide range of engineering materials:

Material Common Grades
Stainless Steel 304, 316L, 17‑4PH, 2205
Aluminum Alloy 6061, 6061‑T6, 6063, 7075
Alloy Steel 4140, 4130, 42CrMo4
Brass & Copper C360, H62, Copper Alloys
Titanium Alloy Grade 2, Grade 5
Engineering Plastics POM, PA6, PA66, ABS, Nylon

Other materials are available according to customer requirements.

Surface Finishing

Depending on the application, we can provide:

  • Passivation
  • Electroless Nickel Plating
  • Polishing
  • Brushing
  • Deburring
Typical Applications
  • Daily‑Chemical Machinery Equipment
  • Automation Industrial Equipment
  • General Mechanical Components
  • Automotive Industry Parts
  • Fluid‑Measuring & Sealing Assemblies
  • Custom OEM Machinery Spare Parts
Frequently Asked Questions
Why choose Mazak 7‑axis 5‑linkage mill‑turn composite for this measuring cylinder?
This measuring cylinder owns complex mixed turn‑mill features, multi‑stage bores, inclined surfaces and high concentricity requirements. Separate lathe‑milling split‑processing will introduce cumulative clamping error. Mazak 7‑axis 5‑linkage mill‑turn composite finishes all features in one clamping, ensures drawing‑required concentricity and positional accuracy, fits corrosive working conditions of daily‑chemical, automation and automotive equipment.
What materials can you machine?
We can machine stainless steel, aluminum, alloy steel, brass, copper, titanium and engineering plastics. Custom materials are also available according to customer specifications.
Can you customize according to drawings?
Yes, all features are fully custom‑made based on your 2D drawings or 3D CAD models.
What surface treatments are available for 316L parts?
We provide passivation, polishing, electroless nickel plating and other finishes to improve corrosion resistance and surface quality.
Can you manufacture prototype and mass‑production orders?
Yes. We provide custom CNC mill‑turn machining from prototype trial, low‑volume to mass‑production.
