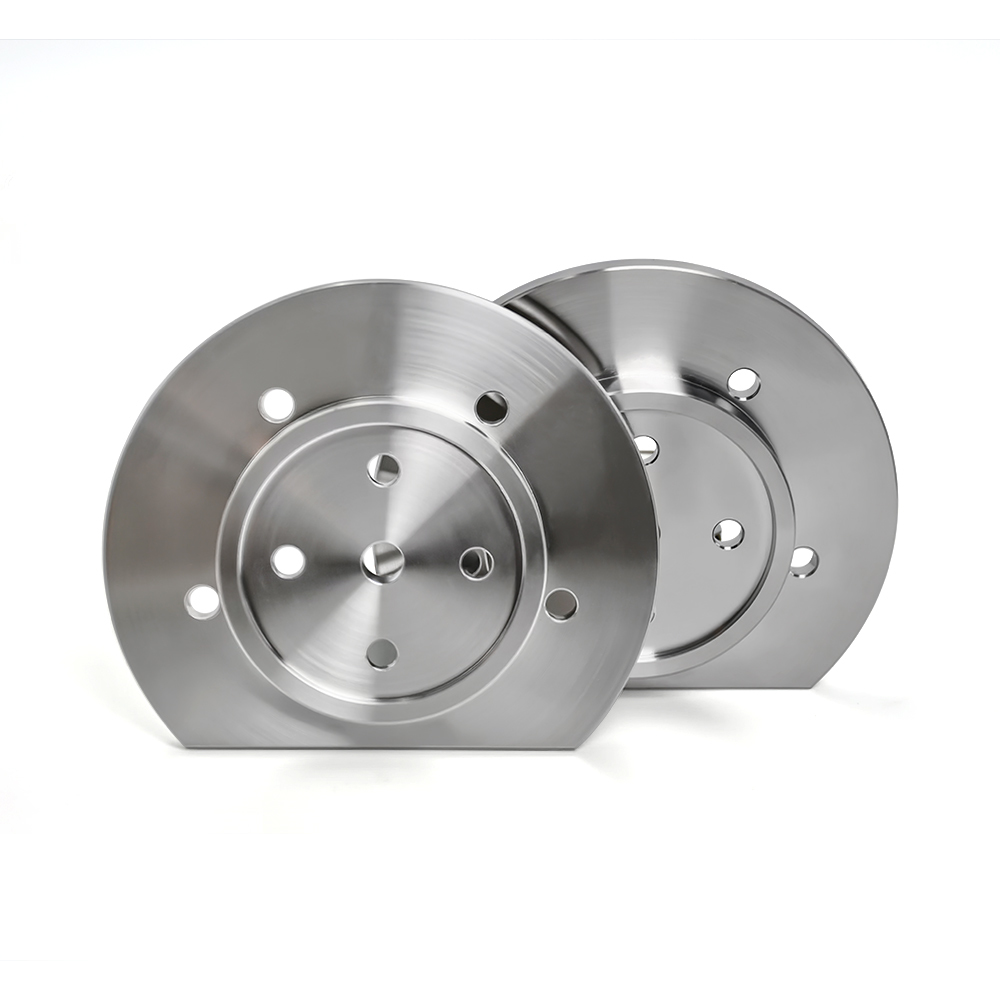

Custom CNC Turn Mill 304 Stainless Steel Special Shaped Flange Base
Custom CNC Turn-Mill Machined 304 Stainless Steel Special-Shaped Flange Base Spare Part This precision special-shaped flange base is manufactured by CNC turn-mill composite machining, featuring multi-step concentric bosses, irregular outer contour, through holes, counter-bore holes and threaded holes with strict tolerance requirements per customer drawing.
CNC turn-mill composite machining completes turning and milling features in one clamping. It minimizes re-clamping positioning errors, ensures high coaxiality of multi-step circular surfaces and accurate hole-position tolerance for all mounting holes.
It is suitable for automation equipment, packaging machinery, industrial fixtures, robotics and other custom OEM applications.
Product Specifications
Final dimensions and tolerances are manufactured according to the approved customer drawing.
Item Specification
Product Type Precision CNC Turn-Mill Composite Special-Shaped Flange Base
Machining Process CNC Turn-Mill Composite Machining
Material 304 Stainless Steel
Overall Dimension Approx. Ø125 * 22 mm
Main Boss Diameter Ø80 mm / Ø70 mm / Ø40 mm
Mounting Holes 4*Ø6.6 through holes
Threaded Holes 4*M6-6H threaded holes
Surface Roughness Ra 3.2 μm for chamfer; rest per drawing
Tolerance According to customer drawing
Production Prototype / Low Volume / Mass Production
CNC Turn-Mill Composite Machining Advantages
Feature Our Capability
Rotary & Irregular Part Machining One-setup processing for circular boss and special-shaped flange profile
Multi-Step Boss Geometry High-precision concentric multi-layer boss for locating & assembly
Integrated Hole Machining Complete drilling, counter-boring and tapping in single clamping
Fewer Setups Eliminate re-positioning errors caused by multiple fixturing
Dimensional Consistency Stable tolerance for diameters, depths and hole-position accuracy
Surface Quality Clean machined surface, all sharp edges deburred as required
Available Materials
We provide CNC machining for a wide range of engineering materials:
Material Common Grades
Aluminum 6061, 6061-T6, 6063, 7075
Stainless Steel 304, 316, 316L, 17-4PH
Alloy Steel 4140, 4130, 42CrMo4
Brass C360, H62
Copper Copper Alloys
Titanium Grade 2, Grade 5
Plastics POM, PA6, PA66, ABS, Nylon, PEEK, PTFE
Other materials are available according to customer requirements.
Surface Finishing
Depending on the application, we can provide:
  • Polishing
  • Brushing
  • Passivation
  • Electropolishing
  • Electroless Nickel Plating
  • Electroplating
  • Powder Coating
Typical Applications
  • Automation Equipment
  • Packaging Machinery
  • Robotics
  • Industrial Machinery
  • Industrial Fixtures
  • Food Processing Equipment
  • Custom OEM Machinery
Frequently Asked Questions
1. Why is CNC turn-mill composite suitable for this flange base component?
This part combines rotary multi-step bosses and irregular non-circular outer profile, together with distributed through holes, counter-bore holes and threaded holes. Turn-mill composite machining finishes turning and milling in one clamping, ensures coaxiality and hole-position accuracy while reducing fixture-caused errors.
2. What materials can you machine?
We can machine aluminum, stainless steel, alloy steel, brass, copper, titanium and engineering plastics. Custom materials are also available according to customer specifications.
3. What is the maximum size you can machine?
The exact machining capacity depends on the machine and component geometry. Please send us your 2D drawing or 3D CAD model for an engineering evaluation.
4. Can you provide surface treatment?
Yes. We can arrange polishing, brushing, passivation, electropolishing, plating, powder coating and other customized surface treatments.
5. Can you manufacture according to our drawings?
Yes. We provide custom CNC machining from 2D drawings and 3D CAD files, including prototypes, low-volume production and mass production.
