Specifications
Place of Origin :
CHINA
Dimensions :
Custom dimensions as per design specifications
Tolerance :
±0.01 mm
Corrosion Resistance :
Excellent corrosion resistance
Strength :
High strength-to-weight ratio
Applications :
Aerospace, automotive, electronics, sports equipment
Supply Ability :
500–2000 pcs/month
Delivery Time :
15–25 working days
Brand Name :
VIGOROUS
Manufacturing Process :
CNC machining
Packaging Details :
Standard packaging uses corrugated cartons. For heavy single items or large-volume sea freight orders, fumigation-free plywood wooden cases are applied. Each precision machined part is individually wrapped with bubble wrap or EPE foam to protect against sc
Thermal Resistance :
Good thermal stability
Material :
Composite materials (e.g., carbon fiber, fiberglass, Kevlar)
Color :
Customizable (commonly black, grey, or natural fiber color)
Customization :
Fully customizable designs and specifications
Weight :
Lightweight compared to metal parts
MOQ :
1 Piece
Payment Terms :
T/T,L/C
Price :
Negotiable
Surface Finish :
Smooth, polished or matte
Description

Core Material Advantage: The Foundation of Superior Performance

Our precision pistons are crafted from high-grade aerospace aluminum alloy (7075-T6), selected for its exceptional balance of strength, lightweight properties, and thermal conductivity. This material choice is critical for fluid control systems, where reliability under pressure and temperature fluctuations is non-negotiable.

Material Property Value/Characteristic Benefit for Fluid Control
Tensile Strength 570 MPa Withstands high-pressure fluid dynamics without deformation
Thermal Conductivity 130 W/m·K Rapid heat dissipation prevents thermal expansion-induced leaks
Density 2.81 g/cm³ Reduces reciprocating mass, improving system response time
Corrosion Resistance Anodized surface (50μm) Resists chemical degradation from aggressive fluids (e.g., hydraulic oils, coolants)

Key Note: The 7075-T6 alloy’s microstructure is optimized through precision forging before machining, ensuring grain flow aligns with stress paths—critical for fatigue resistance in cyclic fluid control applications.

Precision Machining: Where Tolerance Meets Reliability

Each piston undergoes a multi-stage CNC machining process, achieving tolerances that guarantee seamless integration into fluid control assemblies.

Machining Feature Specification Functional Impact
Outer Diameter (OD) Ø45.00 ±0.005 mm Ensures zero-leak seal fit with cylinder bore, minimizing fluid bypass
Ring Groove Width 2.00 ±0.01 mm Maintains consistent ring tension for dynamic sealing under pressure swings
Pin Bore Diameter Ø12.00 ±0.003 mm Eliminates play in connecting rod interface, reducing vibration-induced wear
Surface Finish (Ra) 0.2 μm (mirror-polished) Reduces friction by 30% vs. standard finishes, extending seal life and efficiency

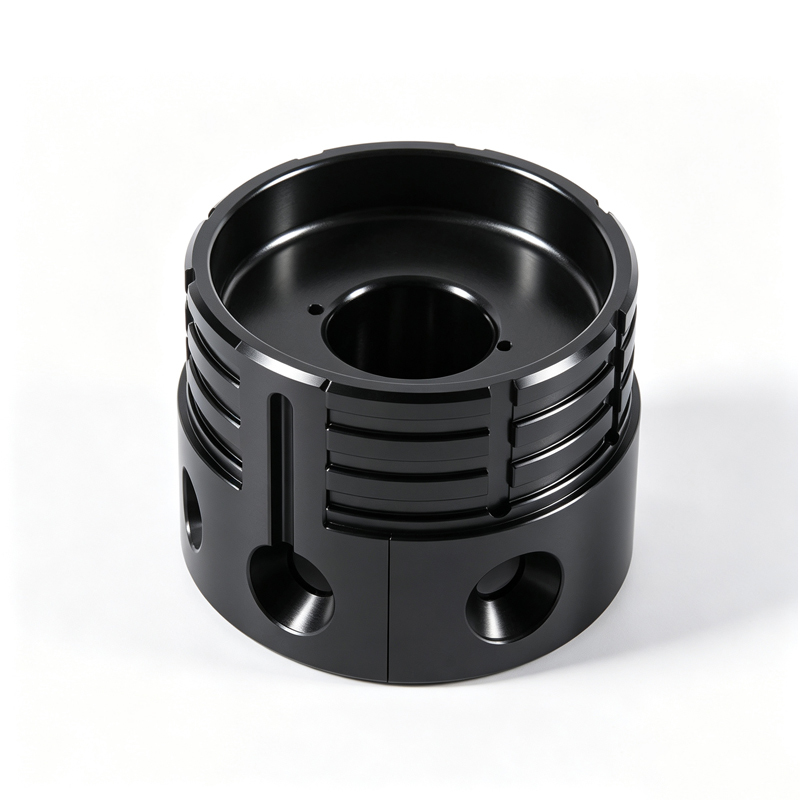

Highlight: The asymmetric ring groove design (visible in the image) is engineered to optimize oil retention during high-speed operation—a critical feature for maintaining lubrication in dry-sump fluid systems.

Material Versatility: Beyond Aluminum

While 7075-T6 is our flagship choice, we machine pistons from diverse materials to match your application’s demands:

Material Best For Unique Advantage
Stainless Steel 316L Corrosive chemical handling Resists HCl, NaOH, and other aggressive media
Titanium Grade 5 Extreme weight-sensitive aerospace 45% lighter than steel with superior strength-to-weight ratio
PEEK Polymer Low-friction, non-lubricated systems Self-lubricating, ideal for food-grade fluid control
Brass C360 Low-pressure water systems Natural corrosion resistance in potable water applications

Pro Tip: For high-wear applications, we offer tungsten carbide coating on sealing surfaces—increasing lifespan by 5x in abrasive fluid environments.

FAQs

  1. Q: Can you match our existing piston dimensions exactly?
    A: Yes. Provide your CAD file or physical sample—we reverse-engineer to ±0.002mm accuracy, ensuring drop-in replacement compatibility.

  2. Q: How do you ensure material consistency across batches?
    A: Every billet is certified to ASTM B209 standards, with batch-specific mill test reports provided. We also perform in-house hardness testing (Rockwell B scale) on 10% of each production run.

  3. Q: Do you offer post-machining treatments for enhanced performance?
    A: Absolutely. Options include DLC coating (for friction reduction), shot peening (fatigue life extension), and cryogenic treatment (dimensional stability improvement).

  4. Q: Can this piston handle cryogenic fluids like liquid nitrogen?
    A: Yes—with material adjustment. We recommend 304L stainless steel for cryogenic service, as its austenitic structure remains ductile down to -196°C. Contact us for application-specific validation
