High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head
High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head
High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head
High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head
High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head
High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head
High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head
High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head
High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head
High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head
High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head
High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head
Specifications
Brand Name :
Matsumoto
Model Number :
CMB3220
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$84000-90000
Payment Terms :
T/T
Delivery Time :
40 working days
Packaging Details :
9300*5300*4500mm
Table size :
1800*3000mm
Max load :
10tons
T-slot（No.-width*pitch） :
9-22×190
Spindle speed :
6000rpm
Spindle type :
BT50-Φ190
Machine size :
9300*5300*4500
Weight :
28tons
Description

GMB3220 Gantry CNC Milling Machining Center Single Spindle Angle Head


Description:

GMC CNC machining centers are widely used in aerospace, shipbuilding, automotive, mold, mechanical manufacturing and other fields. They can process various large and complex components, such as aircraft bodies, ship propellers, automotive engine cylinders, mold cavities, etc. GMC CNC machining center has the characteristics and advantages of stable structure, high precision, high efficiency, multifunctionality, and high degree of automation, which can provide better CNC machining solutions for different manufacturing industries.


Project
Unit
GMB3220
Capacity
X-axis travel
mm
3200
Y-axis travel
mm
2000
Z-axis travel
mm
1000
Gantry width
mm
2000
Max load
T
8
Distance from spindle nose to worktable
mm
180-1200
Worktable
Table size
mm
1800*3000
Max load
T
10
T-slot(No.-width*pitch)
-
9-22×190
Spindle
Spindle speed
rpm
10-6000
Spindle type
-
Belt BT50-Φ190
Nail size

P50T-1-MAS403(45°)
Spindle motor
kw
15KW
Servo feed
X/Y/Z axis feed motor power
Nm
X:37NM/Y:37NM/Z:37NM
X/Y/Z axis guide type
-
(XY)2*H55 linear roller
(Z)Rectangular guide
XYZ fast moving speed
m/min
12/12/8
Cutting feed speed
mm/min
1-10000
XYZ Ball screw
/
8020/5010/5010
Others
XYZ Positioning accuracy(JIS)
mm
±0.005/300
XYZ Repeated positioning accuracy(JIS)
mm
±0.008/±0.007/±0.005
Barometric demand
kgf/cm2
5-7
Weight
T
28
Machine size
Mm
9300*5300*4500

Optional Configuration:

Fanuc, Mitsubishi,Syntec system
Coolant through spindle Spindle
oil Cooler
Auto chip conveyor
Air conditioner for electric cabinet
Oil water separator
The 4th axis/ The 5th axis
Tool setting system
Workpiece measuring system

Usage:

This vertical machining center is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.

Detail photos:

High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head

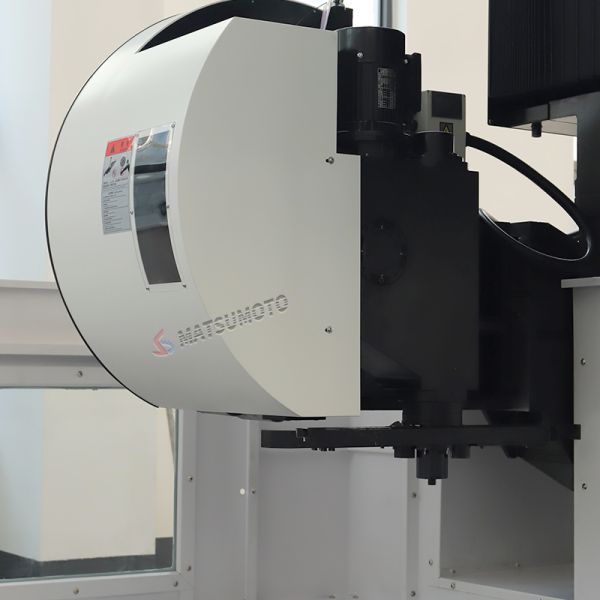

TOOL MAGAZINE
The tool magazine is equipped
with an automatic tool changer
ATC(Auto Tool Change) for
automatic tool exchange.

24 tool magazine

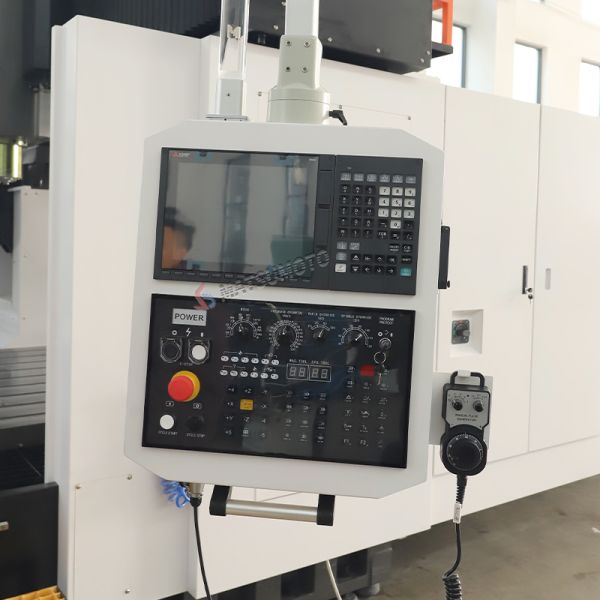

CONTROL SYSTEM


Standard: GSK

Optional : FANUC,Mitsubishi,Syntec ect.

High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head

High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head

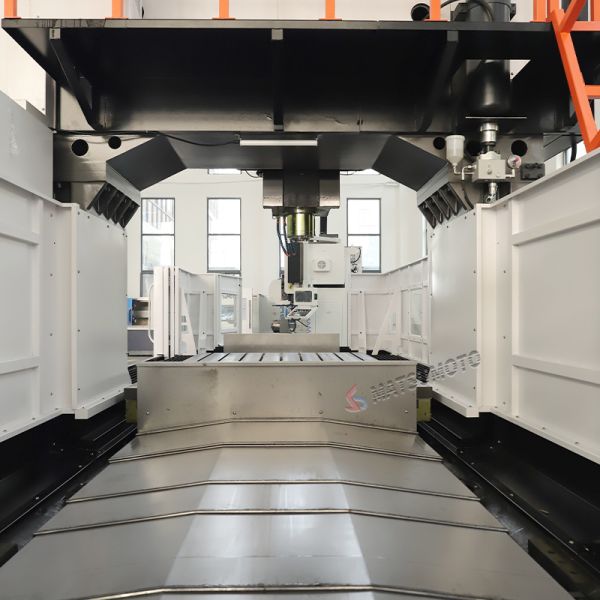

TAIWAN PRECISION LINEAR RAILS


Taiwan high speed roller linear guide rail

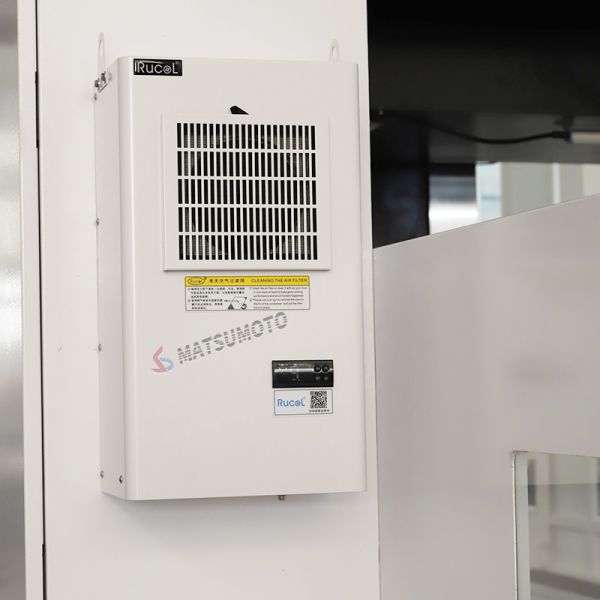

AIR CONDITIONER


Standard with Industrial electrical cabinet air conditioner. Cooling the electric box better

High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head

High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head

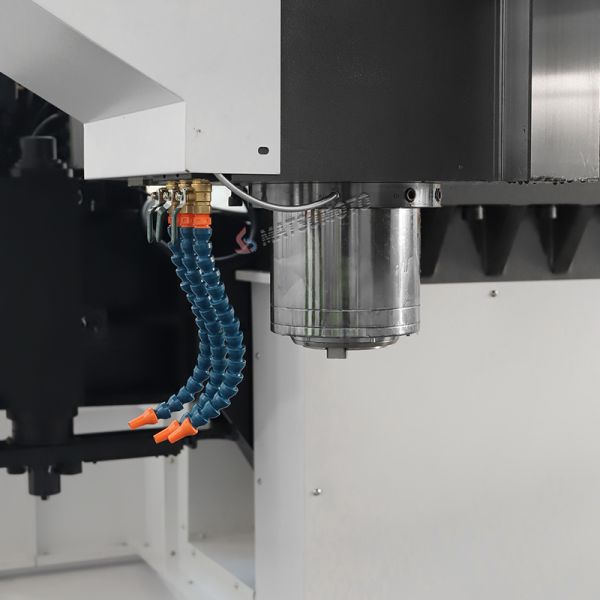

SPINDLE


TAIWAN BT50 precision spindle 6000rpm.

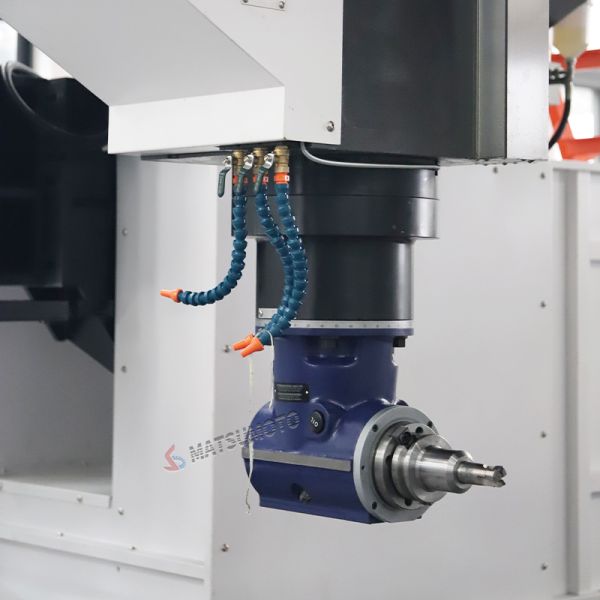

ANGLE HEAD

By selecting the appropriate angle
head, multiple planes and multiple
angles can be processed
simultaneously during one setup.

High Precision GMB3220 CNC Gantry Machining Center with Single Spindle Angle Head
