Specifications
Y-axis travel :
1300mm
Table size(L*W) :
1600*1200mm
MOQ :
1
X-axis travel :
1700mm
Certification :
CE
Brand Name :
Matsumoto
Model Number :
GMB1613
Delivery Time :
20working days
Packaging Details :
plywood case
Z-axis travel :
800mm
Place of Origin :
China
Payment Terms :
T/T
Gantry width :
1300mm
Price :
38500-45500
Description
GMB1613 CNC Gantry Machining Center Heavy Duty Gantry Milling Machine Manufacturer
Description:

GMB1613 CNC gantry machining center adopts integrated heavy cast iron gantry frame, delivering outstanding rigidity, low vibration and steady heavy cutting capability. Equipped with BT50 high torque spindle, roller linear guides and large load-bearing worktable. Optional Fanuc, Mitsubishi and GSK control systems. Supports 4/5 axis rotary table for multi-angle composite machining. Fully enclosed protective cover with efficient chip removal. CE certified to meet international import requirements, ideal for precision machining of medium and large heavy workpieces.

PROJECT UNIT GMB1613
X-axis travel mm 1700
Y-axis travel mm 1300
Z-axis travel mm 800
Gantry width mm 1300
Spindle nose to table mm 150-950
Table size(L*W) mm 1600*1200
Maximum table load kg 2000
T-slot(width*number) mm*pcs 22*7
Maximum spindle speed rpm 8000/6000
Spindle taper / BT40/BT50
Spindle motor power kw 15
Rapid traverse(X axis) m/min 20
Rapid traverse(Y axis) m/min 20
Rapid traverse(Z axis) m/min 16
Maximum cutting feed speed mm/min 10000
Tool library form / DISC TYPE
Tool library capacity pcs 24/30
Weight kg ≈14000
Total electrical capacity KVA 48
Dimension(L*W*H) mm 4300*2650*2800
Details Images:
GMB1613 CNC Gantry Machining Center Heavy Duty Gantry Milling Machine Manufacturer

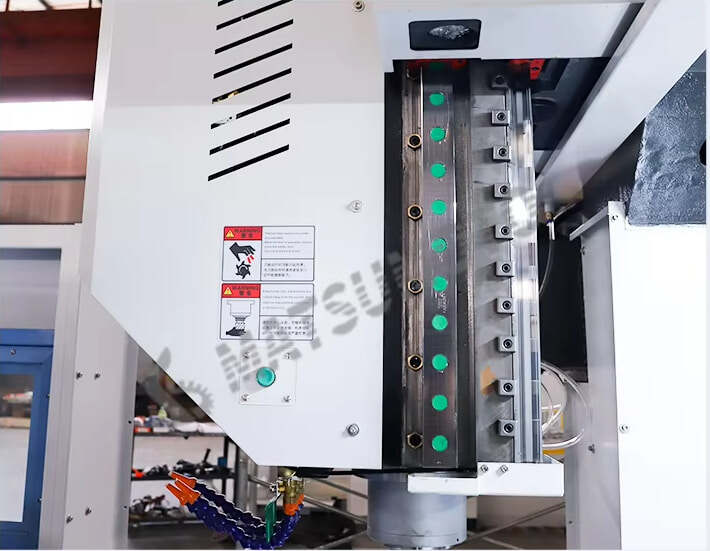

THREE-AXIS LINEAR SLIDER RAIL

Three-axis linear slide rail, with high rigidity, high precision accuracy, low noise, low firction characterists.
GMB1613 CNC Gantry Machining Center Heavy Duty Gantry Milling Machine Manufacturer

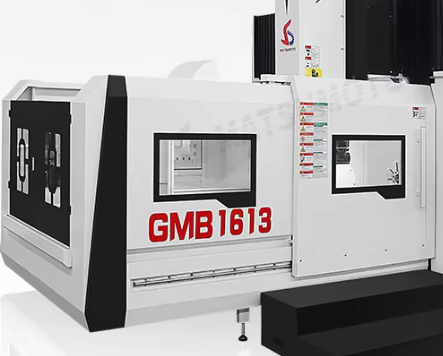

MAIN STRUCTURE

Main structure castings adopt high quality Mihanna cast iron, stable structure, permanent ensure quality.
GMB1613 CNC Gantry Machining Center Heavy Duty Gantry Milling Machine Manufacturer

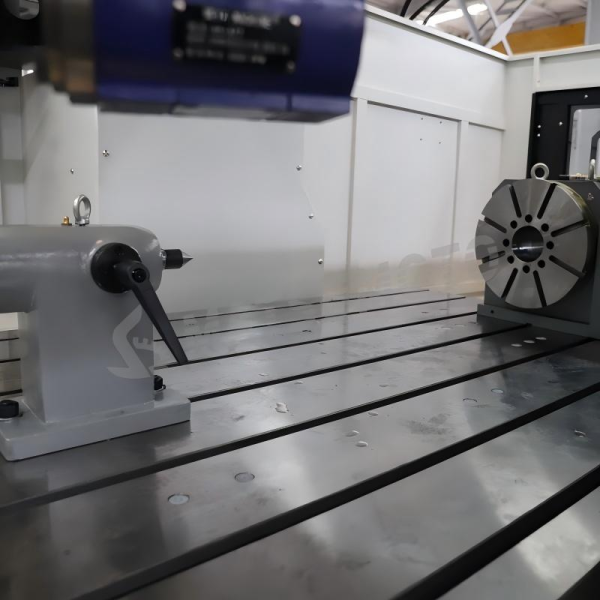

5TH AXIS CNC INDEXING PLATE

After installing the 5th axis CNC indexing plate, multiple processes can be assembled into one process, and it is accurate to one thousandth of a degree.
GMB1613 CNC Gantry Machining Center Heavy Duty Gantry Milling Machine Manufacturer

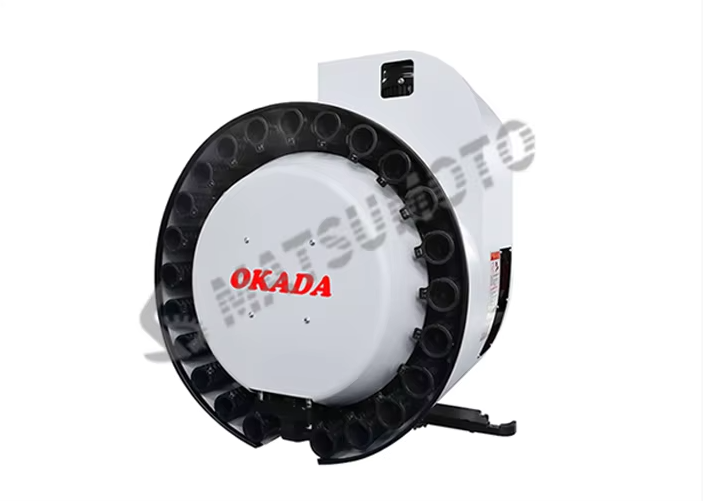

TOOL MAGAZINE

The tool magazine is equipped with an automatic tool changer ATC(Auto Tool Change) for automatic tool exchange.
GMB1613 CNC Gantry Machining Center Heavy Duty Gantry Milling Machine Manufacturer

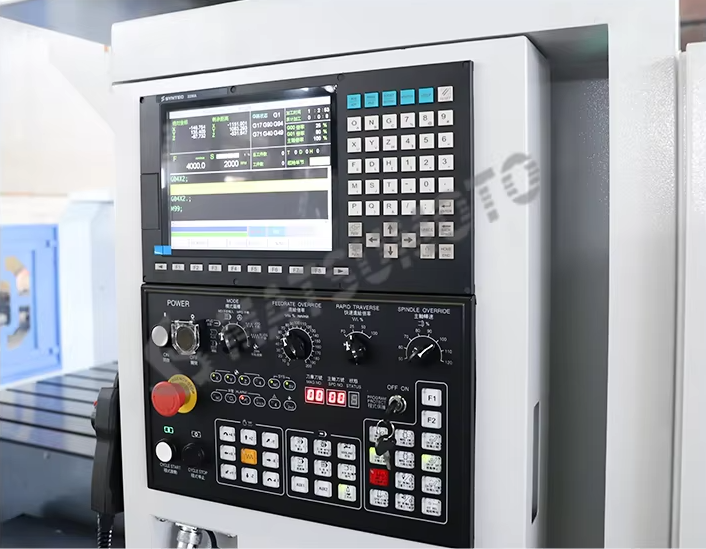

CNC SYSTEM

CNC control system can be choosed, like KND/GSK/FANUC/MITSUBISHI and other good system.
