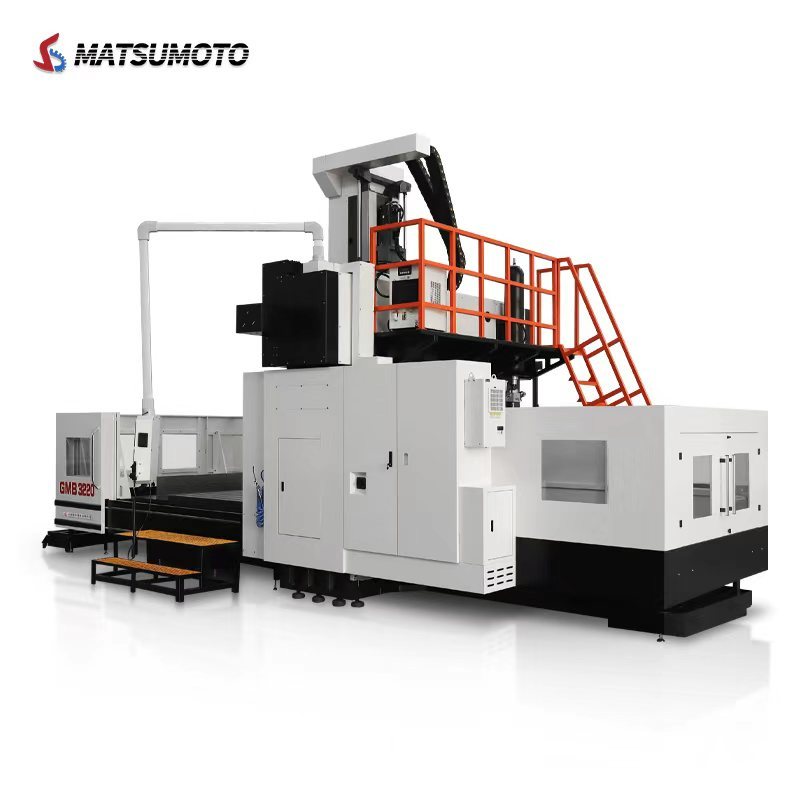

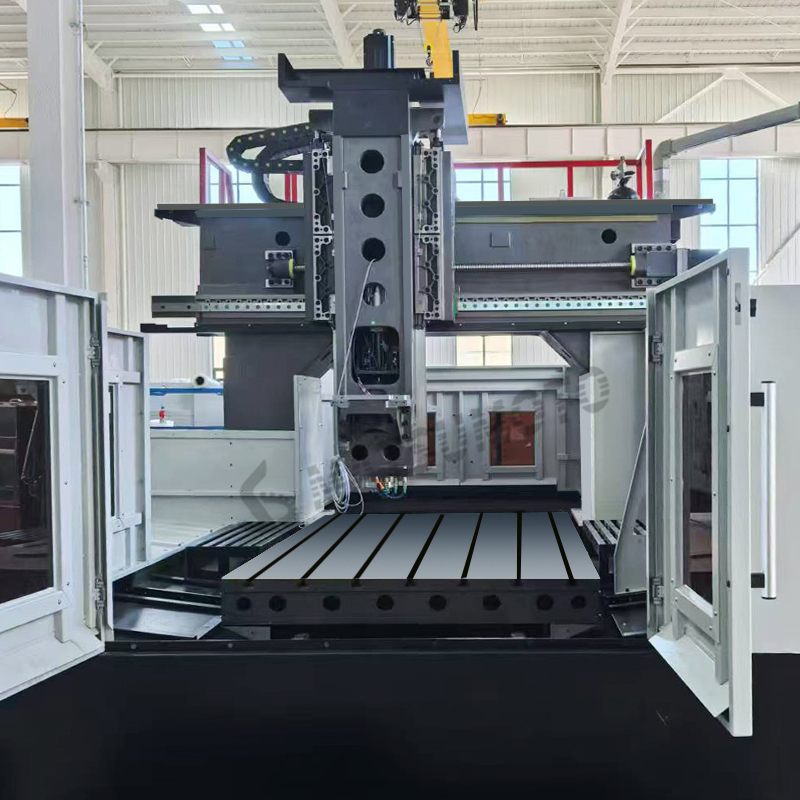

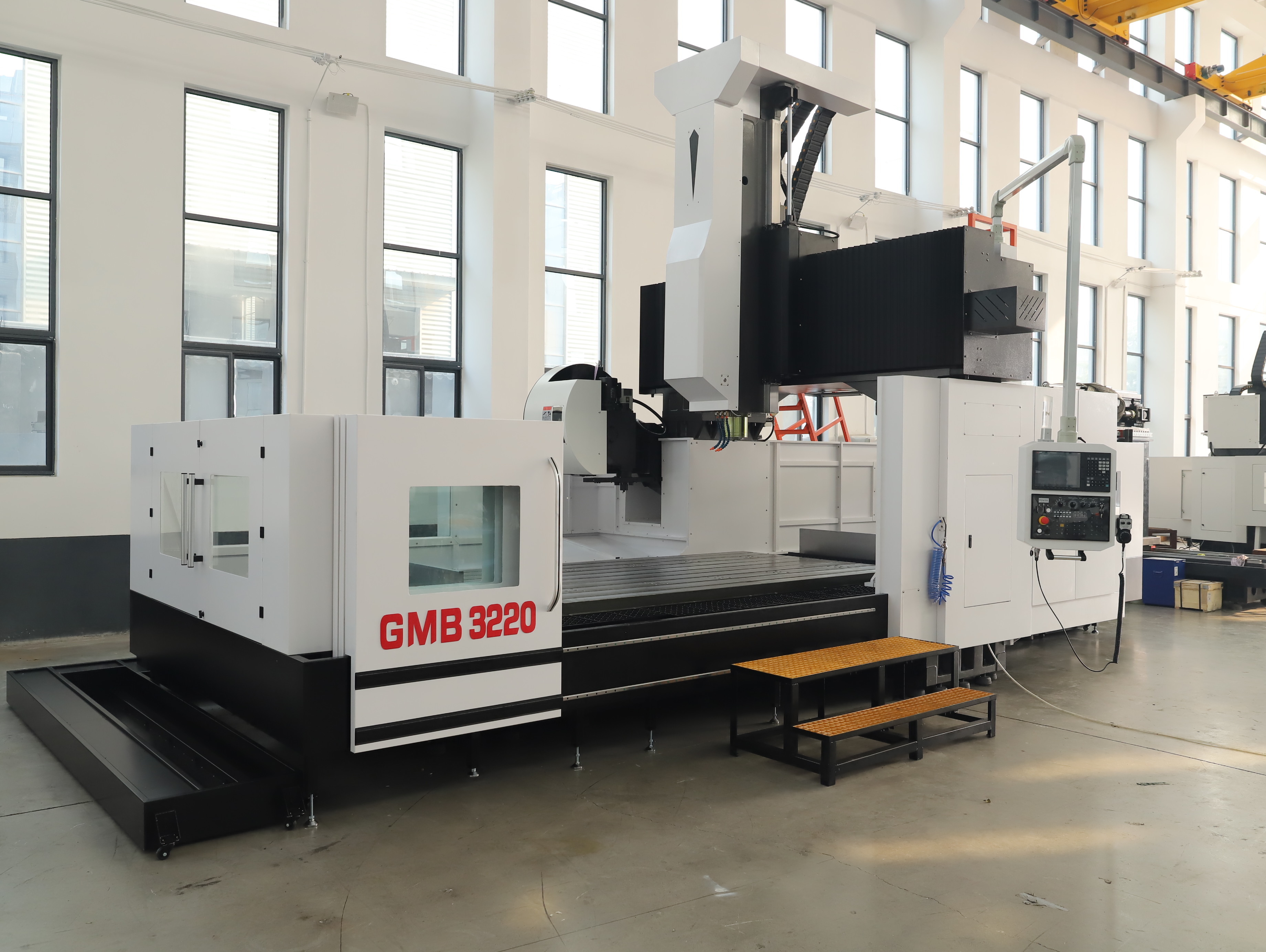

GMB3220 High Precision Gantry Milling Machine Large Scale Double Column Bridge Type CNC Gantry Machining Center
GMB3220 High Precision Gantry Milling Machine Large Scale Double Column Bridge Type CNC Gantry Machining Center
GMB3220 High Precision Gantry Milling Machine Large Scale Double Column Bridge Type CNC Gantry Machining Center
GMB3220 High Precision Gantry Milling Machine Large Scale Double Column Bridge Type CNC Gantry Machining Center
GMB3220 High Precision Gantry Milling Machine Large Scale Double Column Bridge Type CNC Gantry Machining Center
GMB3220 High Precision Gantry Milling Machine Large Scale Double Column Bridge Type CNC Gantry Machining Center
GMB3220 High Precision Gantry Milling Machine Large Scale Double Column Bridge Type CNC Gantry Machining Center
GMB3220 High Precision Gantry Milling Machine Large Scale Double Column Bridge Type CNC Gantry Machining Center
GMB3220 High Precision Gantry Milling Machine Large Scale Double Column Bridge Type CNC Gantry Machining Center
GMB3220 High Precision Gantry Milling Machine Large Scale Double Column Bridge Type CNC Gantry Machining Center
GMB3220 High Precision Gantry Milling Machine Large Scale Double Column Bridge Type CNC Gantry Machining Center
GMB3220 High Precision Gantry Milling Machine Large Scale Double Column Bridge Type CNC Gantry Machining Center
GMB3220 High Precision Gantry Milling Machine Large Scale Double Column Bridge Type CNC Gantry Machining Center
GMB3220 High Precision Gantry Milling Machine Large Scale Double Column Bridge Type CNC Gantry Machining Center
Specifications
Model Number :
GMB3220
T-slot size :
22*8mm
MOQ :
1
Packaging Details :
plywood case
Payment Terms :
T/T
Price :
75500-98500
Delivery Time :
20 working days
Certification :
CE
Distance between two vertical columns :
2200mm
Place of Origin :
China
Maximum table load :
8000kg
Brand Name :
Matsumoto
Table size :
1800*3000mm
Description

GMB3220 High Precision Gantry Milling Machine Large Scale Double Column Bridge Type CNC Gantry Machining Center


Gantry Machining Center:
GMC CNC machining centers are widely used in aerospace, shipbuilding, automotive, mold, mechanical manufacturing and other fields. They can process various large and complex components, such as aircraft bodies, ship propellers, automotive engine cylinders, mold cavities, etc. GMC CNC machining center has the characteristics and advantages of stable structure, high precision, high efficiency, multifunctionality, and high degree of automation, which can provide better CNC machining solutions for different manufacturing industries.


Project
Unit
GMB3022




Worktable
Table size
mm
1800*3000
Distance between two vertical columns
mm
2200
Maximum table load
kg
8000
T-slot size
mm*pcs
22*8






Processing range
Maximum worktable travel-X axis
mm
3200
Maximum travel of sliding saddle-Y axis
mm
2200
Maximum spindle travel-Z axis
mm
1000


Distance from spindle end face to worktable
Maximum
mm
1200
Minimum
mm
200




Spindle
Motor model
-
βiIP 30
Motor power
kw
15/18.5
Motor torque
Nm
143
Boring(7:24)
-
BT50-Φ190
Speed range
r/min
40-6000




Tool magazine(optional)
Capacity
T
24/30
Maximum tool weight
kg
18
Maximum tool diameter
Full
mm
Φ112
Neighbor empty
mm
Φ200
Maximum tool length
mm
300
Tool change time
s
2.5
















Feed
Motor model X/Y/Z
-
βiS40/2000
Motor power X/Y/Z
kw
3
Motor torque X/Y/Z
Nm
36
Cutting feed speed range
mm/min
1-10000


Fast moving
X axis
mm
20
Y axis
mm
20
Z axis
mm
16


Three-axis screw
X axis
mm
Φ80-16
Y axis
mm
Φ50-12
Z axis
mm
Φ50-12


Three-axis linear rail
X axis
mm
2-55
Y axis
mm
3-55
Z axis
mm
4-55


Positioning accuracy
X axis
Execution standards:JB/T8771.4-1998
mm
0.030
Y axis
mm
0.020
Z axis
mm
0.015


Repeat positioning accuracy
X axis
Execution standards:JB/T8771.4-1998
mm
0.014
Y axis
mm
0.012
Z axis
mm
0.010
Machine weight
kg
30000
Total electrical capacity
KVA
56
Overall dimension
mm
8300*4250*4100
