Specifications
Brand Name :
Matsumoto
Model Number :
YQ32-200T
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$8500-10000
Payment Terms :
T/T
Delivery Time :
15 working days
Packaging Details :
plywood case
Nominal pressure :
2000KN
Working pressure :
25MPa
Max. opening height :
800mm
Slider effective travel :
500mm
Working table size :
800*800mm
Nomial force of election cylinder :
400KN
Description

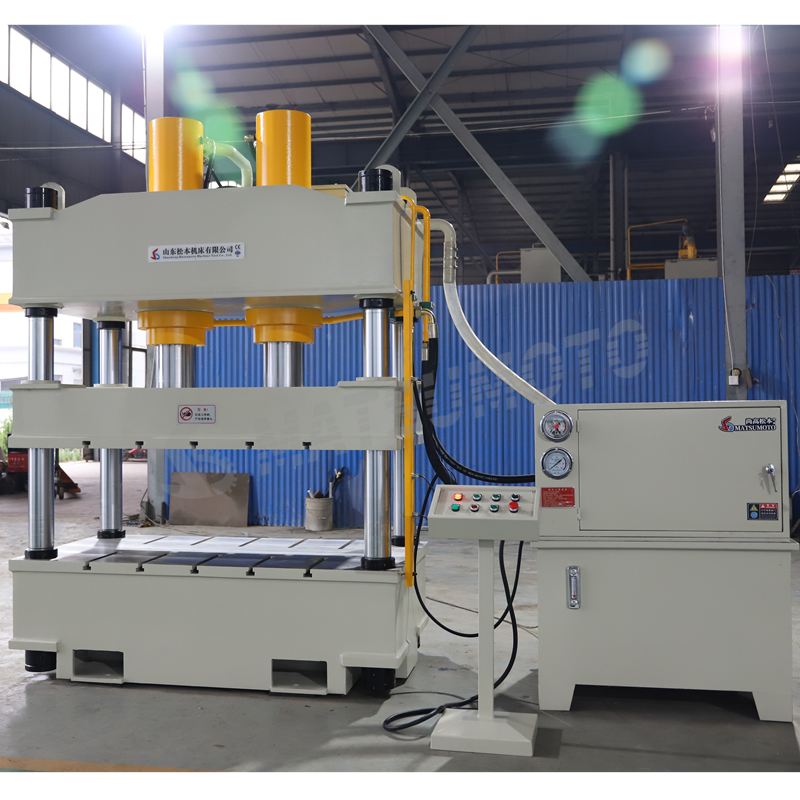

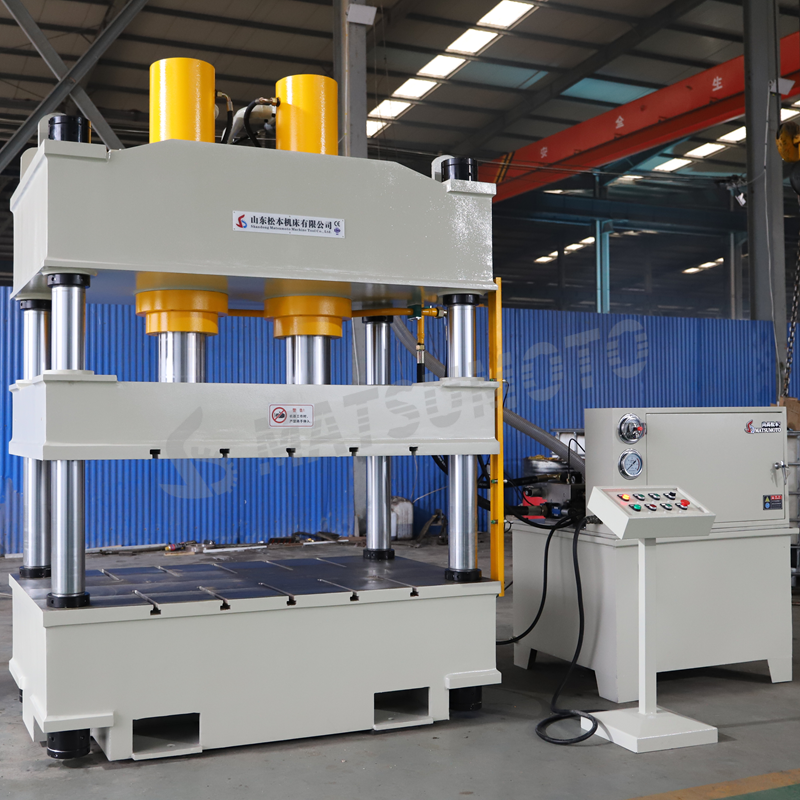

YQ32-200 Ton Three Beam Four Column Hydraulic Press Machine

Description

The Four Column Hydraulic Press is a high-precision, heavy-duty forming equipment featuring a symmetrical four-column guide structure, high-pressure hydraulic drive system and integrated control unit. Adopting a rigid frame composed of upper beam, lower beam and four guide columns, it ensures uniform force distribution and minimal deformation during high-load operations, guaranteeing excellent processing accuracy. Equipped with an energy-saving hydraulic pump station, proportional pressure and flow control components, it realizes stepless adjustment of pressing force, stroke and speed. The machine supports manual, semi-automatic and fully automatic working modes (optional PLC and touch screen operation), with complete safety protection devices, suitable for various large-scale, high-precision forming processes of metal and non-metal materials.

Specification Unit YQ32-200T
Nominal pressure KN 2000
Working pressure Mpa 25
Max. opening height mm 800
Slider effective travel mm 500
Working table size mm 800*800
Nomial force of election cylinder KN 400
Election travel KW 220
Slide working speed mm/s 100
Slider working speed mm/s 5-10
Slider working speed mm/s 90

  • Detail Images

Three Beam 200 Ton Hydraulic Press Four Column Press Machine High Precision

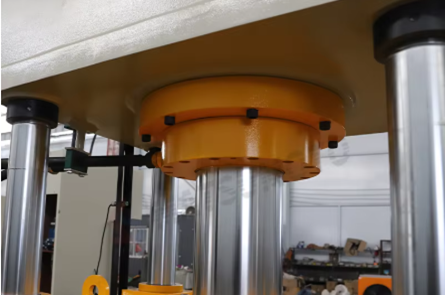

OIL CYLINDER

Higher quality of culinder. It can provide great pressure while machining.
Three Beam 200 Ton Hydraulic Press Four Column Press Machine High Precision

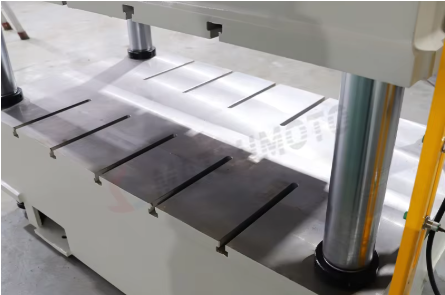

WORKTABLE

Worktable can be adjustable, according to your workpieces.
Three Beam 200 Ton Hydraulic Press Four Column Press Machine High Precision

THE TABLE FEEDS AUTOMATICALLY

The standard worktable is equipped with automatic feeding function, which can save time, operate simply and improve work.
Three Beam 200 Ton Hydraulic Press Four Column Press Machine High Precision

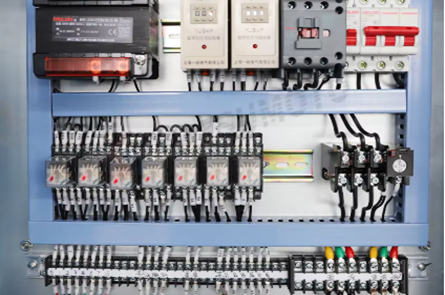

NEAT CIRCUIT

The electrical box is neat and clean, and the maintenance links are clear at a glance.

Three Beam 200 Ton Hydraulic Press Four Column Press Machine High Precision

Three Beam 200 Ton Hydraulic Press Four Column Press Machine High Precision
