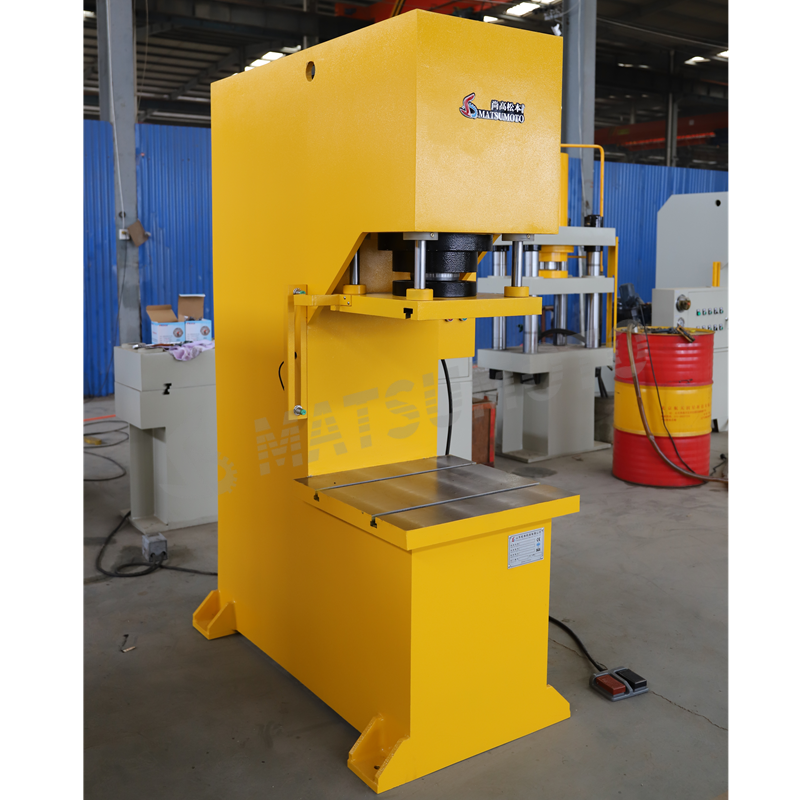

Single Arm Type Hydraulic Press 63 Tons C Frame Precision Forming Equipment
Single Arm Type Hydraulic Press 63 Tons C Frame Precision Forming Equipment
Single Arm Type Hydraulic Press 63 Tons C Frame Precision Forming Equipment
Single Arm Type Hydraulic Press 63 Tons C Frame Precision Forming Equipment
Single Arm Type Hydraulic Press 63 Tons C Frame Precision Forming Equipment
Single Arm Type Hydraulic Press 63 Tons C Frame Precision Forming Equipment
Single Arm Type Hydraulic Press 63 Tons C Frame Precision Forming Equipment
Single Arm Type Hydraulic Press 63 Tons C Frame Precision Forming Equipment
Single Arm Type Hydraulic Press 63 Tons C Frame Precision Forming Equipment
Single Arm Type Hydraulic Press 63 Tons C Frame Precision Forming Equipment
Specifications
Brand Name :
Matsumoto
Model Number :
YQ41-63T
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$5000-6000
Delivery Time :
15 working days
Packaging Details :
plywood case
Nominal force(KN) :
630
Throat depth(mm) :
260
Stroke of slider(mm) :
360
Max. opening height(mm) :
600
Working table size(mm*mm) :
1450*600
Motor power(KW) :
5.5
Description

YQ41-63T Single Arm Type Hydraulic Press 63 Tons C Frame Hydraulic Press Machine

Description:

The Single Arm Hydraulic Press Machine (also called C-frame hydraulic press) is a precision forming equipment with an integrated single-arm frame, high-pressure hydraulic drive and intelligent control. Its one-piece cast or welded frame ensures strong rigidity and stability to avoid deformation under high load. Equipped with an efficient hydraulic pump station and proportional control valves, it allows stepless adjustment of pressing force, stroke and speed. With optional PLC or touch screen control, it supports multiple working modes and complete safety protection, suitable for various metal and non-metal forming processes with compact structure and high efficiency.

Specification63T
Nominal force(KN)630
Throat depth(mm)260
Stroke of slider(mm)360
Max. opening height(mm)600
Working table size(mm*mm)450*600
Slider size(mm*mm)380*380
Downlink speed53
Return speed42
Motor power(KW)5.5

Application:

  • Metal processing: punching, blanking, bending, forming, flanging, embossing, and straightening of sheet metal, profiles, and small parts
  • Non-metal processing: pressing, molding, and shaping of plastic products, rubber parts, composite materials, and ceramic blanks
  • Light industry and hardware: assembly, disassembly, and pressing of small hardware, auto parts, electronic components, and watch parts
  • Mold and tooling: die-casting mold clamping, mold repair, and small tool pressing and shaping
  • Other fields: sample processing, small-batch production, and laboratory precision pressing operations
