3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure
3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure
3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure
3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure
3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure
3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure
3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure
3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure
3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure
3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure
Specifications
Brand Name :
Matsumoto
Model Number :
YQ32-315T
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$11000-13500
Delivery Time :
15 working days
Packaging Details :
plywood case
Nominal force :
3150KN
System pressure :
25MPa
Max.opening height :
1250mm
Slide effective stroke :
800mm
Worktable size :
1260*1160mm
Nominal force of ejection cylinder :
630KN
Description

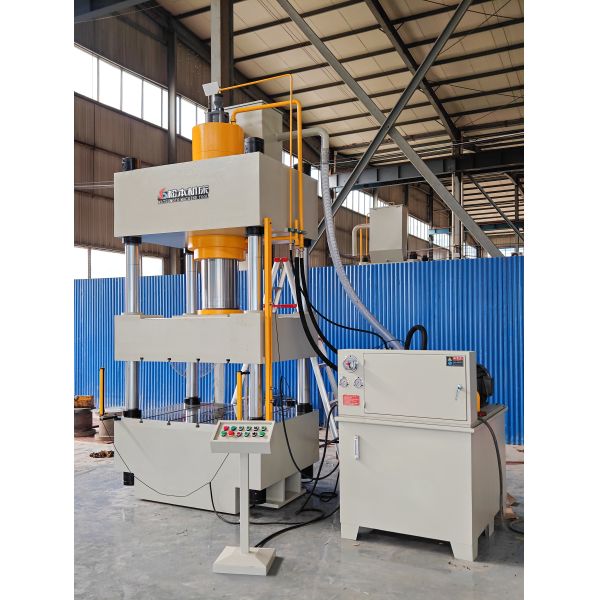

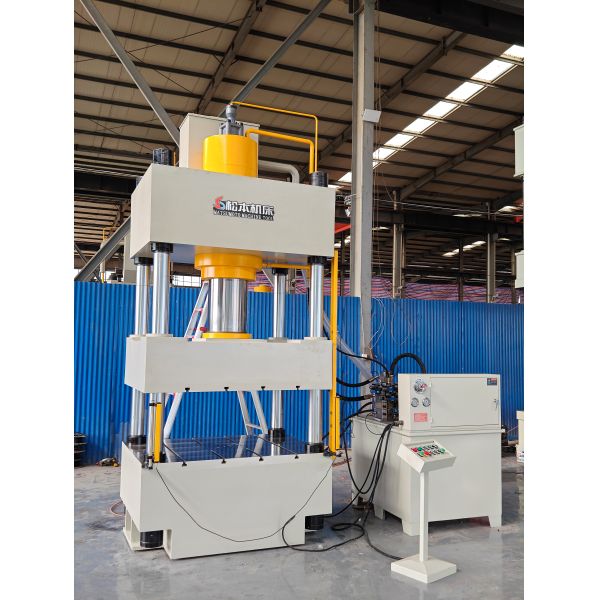

YQ32-315 Ton Three Beam Four Column Hydraulic Press Machine

  • For reference only and supports customization:

1. Gateway steel frame structure

2. Adopts the hydraulic ram with manual and foot-operated functions

3. Applied in dismounting, molding, aligning in the vehicle repairing

4. The manual hydraulic press are used for assembling, dismantling, alignment, stamping, drawing, straightening and punching.

5. It features with small volume, high pressure, simple structure and light weight.

6. mandrel presses have the advantages of small volume ,simple structure ,and little cost.The machine is suitable for operating in the open alror the other special situation.

PROJECT

UNIT

YQ32-315T

Nominal force

KN

3150

System pressure

MPA

25

Max.opening height

MM

1250

Slide effective stroke

MM

800

Worktable size

MM

1260*1160

Nominal force of ejection cylinder

KN

630

Ejection travel

MM

300

Pressure reduction speed

MM/S

120

Pressure working speed

MM/S

5-15

Pressure rising speed

MM/S

90

Application

  • Metal processing: deep drawing, bending, flanging, embossing, straightening, pressing and molding of large and medium-sized sheet metal, thick plates and profiles
  • Automotive and aerospace: forming of auto body parts, chassis components, aircraft structural parts and engine accessories
  • Mold and die-casting: mold clamping, mold testing, die-casting part trimming and large mold repair
  • Non-metal processing: pressing and molding of composite materials, rubber products, plastic products, ceramic blanks and insulation materials
  • Heavy industry: pressing, assembling and disassembly of large mechanical parts, bearing pressing and steel plate straightening

  • Details Images

3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure

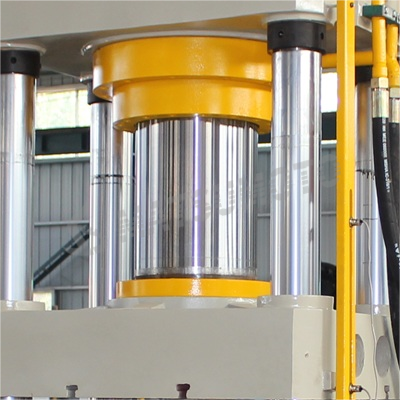

OIL CYLINDER

Higher quality oil cylinder. It can provide great pressure while machining.

3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure

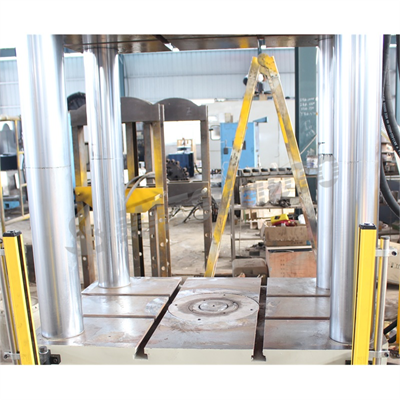

WORKTABLE

Worktable can be adjustable, according to your workpieces.

3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure

THE TABLE FEEDS AUTOMATICALLT

The standard worktable is equipped with automatic feeding function, which can save time, operate simply and improve work.

3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure

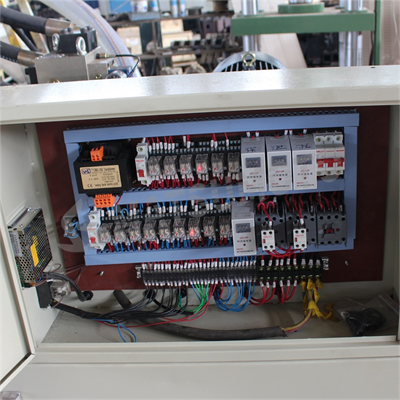

NEAT CIRCUIT

The electrical box is neat and clean, and the maintenance links are clear at a glance.

3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure

3150KN Four Column Industrial Hydraulic Press Machine Three Beam High Pressure
